| Prod Model: |
motorcycle GPS Tracker TK303B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Coban Manufacturer: |
Yes Support Customized Service |
| Weight: |
120g |
| Feature: |
Oil Cut and Resume/Hardware Resetting |
| Remote Controller: |
Optional |
| Shock Sensor: |
Yes |
| Warranty Time: |
12 Months |
| Shipment: |
by Express or by Air |
| APP Tracking: |
SMS/GPRS Android iPhone Tracking |
| Delivery Time: |
2-3 Business Days |
| Cut Car Engine Remotely: |
by Relay |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Get Position, GSM Transmit |
| Port Number: |
20 |
| Model: |
103 |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Baanool GPS Tracker |
| Certification: |
ISO9001 |
Product Description

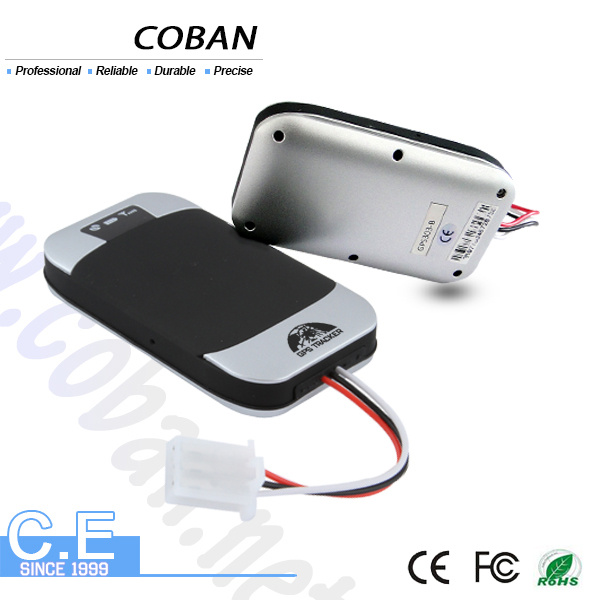

easy install GSM GPRS GPS Tracker for little motorcycle with ACC alarm live tracking TK303B
Model: GPS303-B
Applying directions: Personal , Motorcycle , Vehicle .
how does the GPS Car Tracker work?
All you need to do is insert a working SIM card, it even has Quad-band Connectivity so it works anywhere in the world.
With internal GSM,GPS antenna , this device is easy to hide and install on vehicle or motorcycle . It is powered by both internal battery and the automotive battery .
Here is a small list of what it can do for you :
1.For motorcycle and car(9-40v)
2.Location based service(LBS) + GPS double tracking solution
3.GPS blind spot alert
4.Multi power-saving mode :
Sleep by time / shock sensor
deep sleep
awake at specific time
5.Save GPRS traffic mode(Money save mode)
6.Anti-theft gsm alarms:
Movement alarm
Geo-fence alarm
Over speed alarm
ext.power off alarm
low battery alarm
7.Alarms under ARM State: ACC/Shock alarms
8.Support 2GB MiroSD
9.Built-in memory for 16,000 positions
10.Built-in 500 mA polymer battery
11.SMS tracking on cell phone with google map link
12.Absolute street address by SMS
13.Web server, free PC tracking soft, Mobile phone APP .
3.FAQ - Frequently Asked Questions
How do I make sense of the longitude and latitude data this unit provides?
Both Google Maps and Google Earth can easily translate the data into usable visual information.
The unit does not pick up a GSM signal and the SMS functions aren't working,
What's wrong? A number of things could cause this to happen:
1) Make sure the SIM card is compatible (only 2G, 2.5G, 2.75G SIM cards work
2) Make sure there is money left on the SIM card and that it has not expired
3) Make sure there is no PIN code associated with the SIM card
4) Make sure roaming is enabled on your SIM account if you are in a different country
Can I install the software on multiple computers?
No. Each tracker's IMEI number is unique and can only be used to setup the software on one computer once and ONLY ONCE, which means you can only use the software on that computer exclusively after successfully set it up. This is due to the security requirements of the software and the product.
Ordering from Shenzhen Coban Electronics Co, . Ltd provides you with the following benefits:
- Orders processed and shipped within 24-hours
- 12 month warranty- In-house QC- Member discounts
- Award winning customer support- Quantity order discounts
- Worldwide Shipping
4.Specification
| Brand | Specification |
| Dimension | 83(L)x54(W)x26(H) mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Frequency | 850/900/1800/1900MHz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| GPS Start time | Cold status 45s |
| Warm status 35s |
| Hot status 1s |
| Humidity | 5%--95% non-condensing |
| Temperature | Operating Temperature | -20& deg; C to +65& deg; C |
| Storage Temperature | -40& deg; C to +85& deg; C |
| Voltage of Car power system | 12-24V |
| Battery Power | Chargeable changeable 3.7V 800mAh Li-ion battery |
5.Tracking Solutions
-SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen.
-Get absolute address by SMS
-Android IOS app tracking

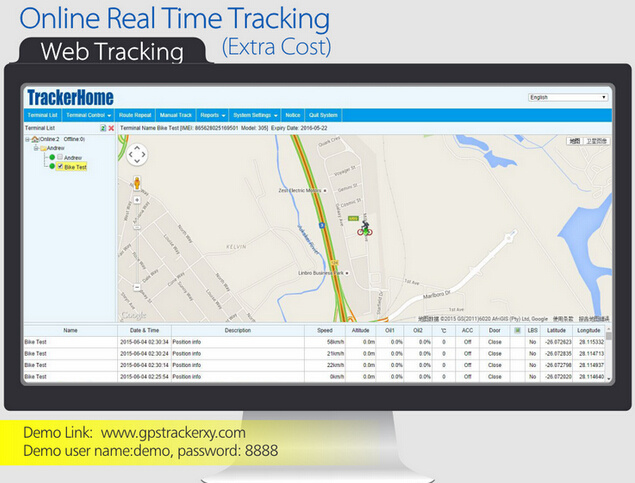

-Web server online tracking. Capable of monitor 10,000 objects
