Easy Operation Two Core DC Waterproof Electrical Cable

Name: Easy Operation Two Core DC Waterproof Electrical Cable
Brand: all-electronics-online.com
SKU: 781388335
Availability: InStock
Rating: 5 (86 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PV-C2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.:	PV-C2
Rated Current:	20A-50A
Rated Voltage:	1000VDC
Cross Section:	1.5mm2-4.0mm2
Wire:	Class 5, Tinned
Temperature Range:	-40degree Centigrade~90degree Centigrade
Color:	Black/Red
Type:	Insulated
Conductor Type:	Stranded
Application:	Solar Energy System
Conductor Material:	Copper
Insulation Material:	XLPE
Certification:	RoHS
Range Of Application:	PV Power Generation System
Brand:	Feeo

Product Description

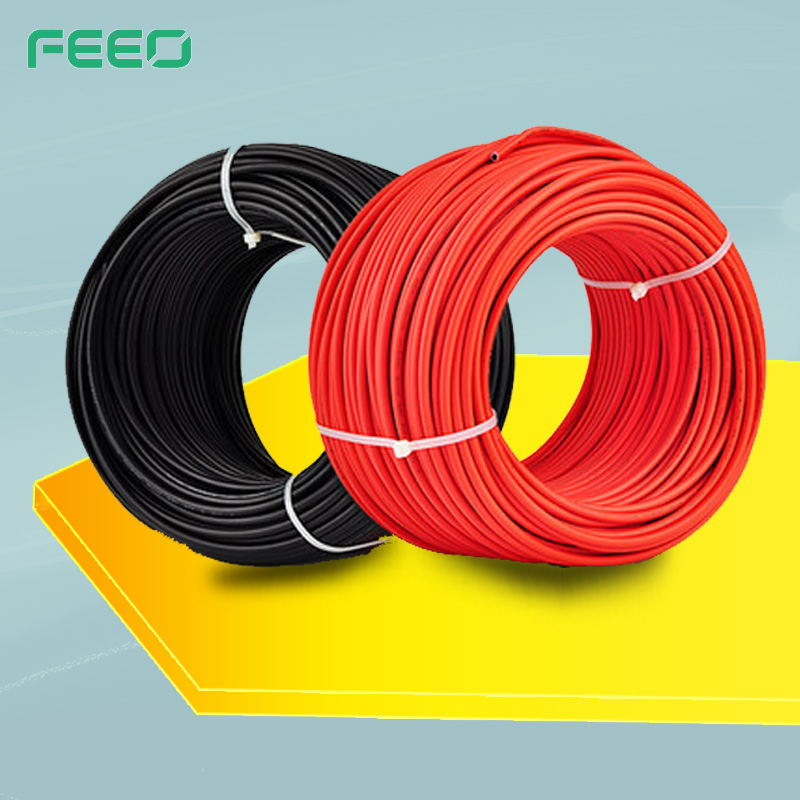

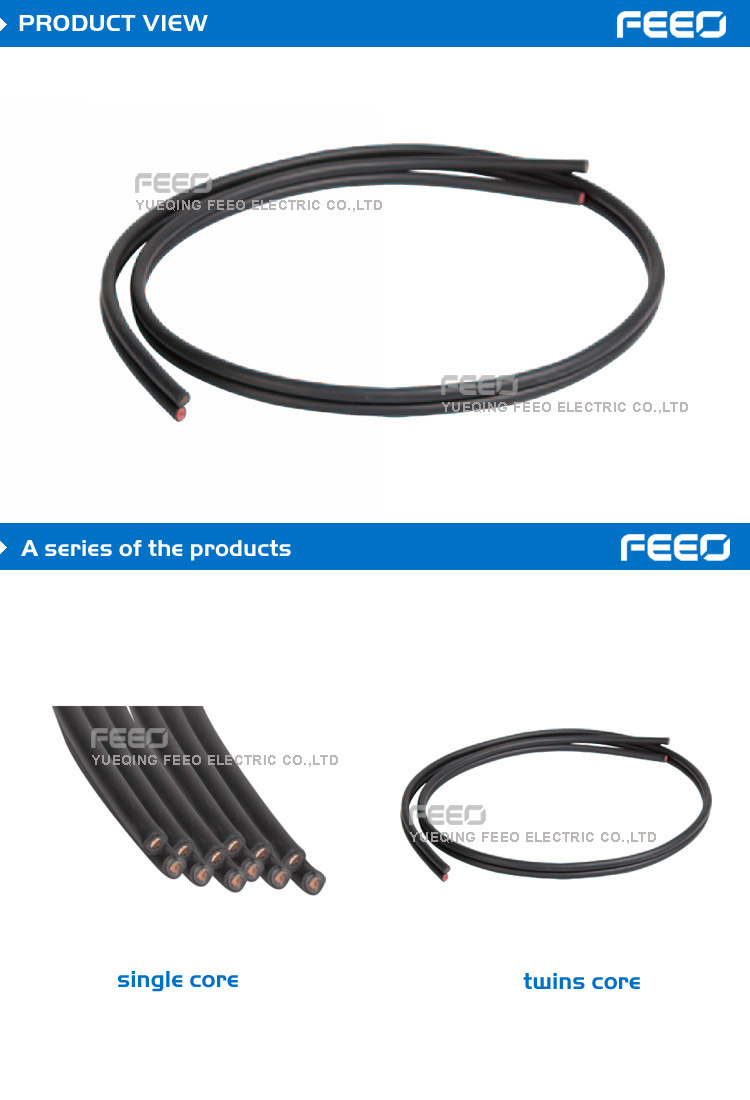

Easy operation two core dc waterproof electrical cable

PV-C2 solar cable

Dual wall insulation, electron beam cross-linked
Excellent resistance to UV, water, ozone, fluids,salt, general weathering
Excellent resistance to abrasion
Halogen free, flame retardant, low toxicity
Excellent flexibility and stripping performance
High current carrying capacity

Type	Cross section mm2	Strand design No.XΦ(mm)	Conductor diameter mm	Conductor resistance Ω/km	Outer diameter AXB mm	Rated voltage V AC/DC	Rated current A
PV-2X1.5mm2	1.5	30XΦ0.25	1.6	13.9	5.80X9.30	1000/1800	20
PV-2X2.5mm2	2.5	50XΦ0.25	2.0	8.06	6.20X9.90	1000/1800	30
PV-2X4.0mm2	4.0	56XΦ0.3	2.6	4.97	6.9X11.30	1000/1800	50

FAQ

Q: If I'm interested in your solar cable when I can receive your quotation and detail information after send the enquiry?

A:All your enquiry will be replied in 24hours.

Q:Your solar cable seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!

A: Our solar cable is IP67 degree and they are high quality customized.for solar system I think compare the quality first and then compare the price is the best way.

Q:Can I get a sample before the order because I really don't how is your solar cable quality?

A:Of course!We also think sample order is the best way to build the trust.

Q:How's the delivery?Because I really need them is urgently?

A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.

Q:How's the warranty period for your solar cable?

A:We offer two year warranty for our customer.

Our company is a manufacturer of Solar Electrical Products/DC Circuit Breaker/DC SPD/DC FUSE/Waterproof Box with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries.

Established in 2000, YUEQING FEEO ELECTRIC Co., Ltd. Specializes in manufacturing Solar PV product. Located in WENZHOU we enjoy convenient access to major transportation networks. Our company covers an area of 2000m² And has around 70 staff members. Furthermore, all our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.
