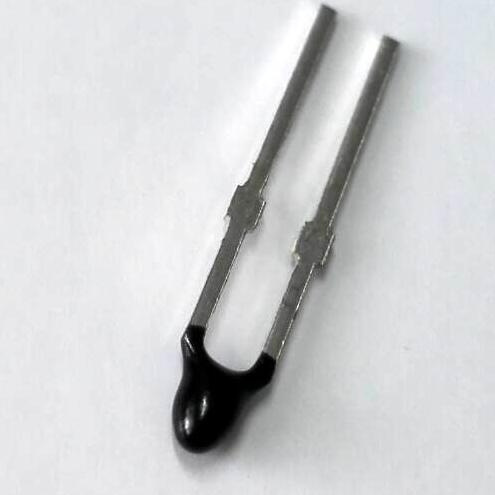

Easy PCB Mounting Frame Lead Ntc Thermistor with Tie Bar

Name: Easy PCB Mounting Frame Lead Ntc Thermistor with Tie Bar
Brand: all-electronics-online.com
SKU: 727096962
Availability: InStock
Rating: 5 (132 reviews)

Price:	US $ 0.05-0.2/Piece
Min Order:	1000/Piece
Pay Type:	T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MF52E series
Resistance:	Variable Resistor
Function For Resistance:	Protective Resistor
Installation:	DIP Resistor
Material:	Ceramic and Metal
Package Type:	Throught Hole
Type:	Thermal Resistor
Brand:	Focusens

Product Description

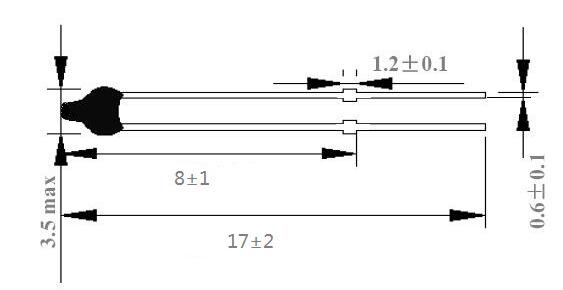

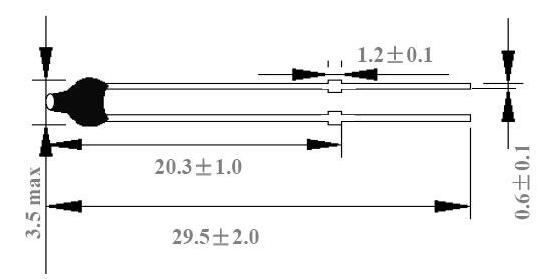

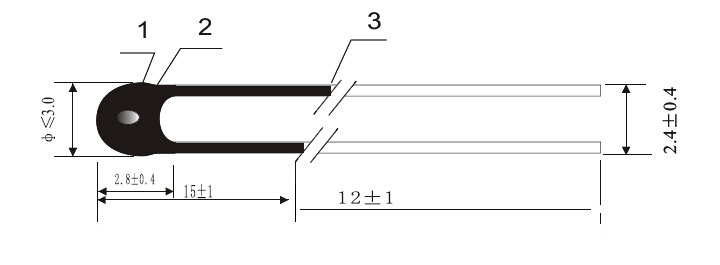

Size Available

Ordering code

MF52	A	xxx	x	xxxx
(1)	(2)	(3)	(4)	(5)

Epoxy coating thermistor MF52 series
Lead wire style code :

Model A: Tin. Plated copper wire
Model B: Enameled wire
Model C: High temperature Teflon wire
Model D: PVC insulation wire
Model E: Tie bar steel wire
Model F: Customer require

Resistance value at 25°C
Resistance tolerance code : (F:±1%, G:±2%, H:±3%, J:±5%, K:±10%)
Beta value

Electrical characteristics

Part No.	Rated Resistance R₂₅	B Value (25/50°C)	Rated Power (mW)	Disst. Coef. (mW/°C)	Themal time Constant (S)	Operating Temp. (°C)
MF52***3100	0.1~20	3100	≤50	≥2.0 In Still Air	≤7 In Still Air	-55~+125°C
MF52***3270	0.2~20	3270
MF52***3380	0.5~50	3380
MF52***3470	0.5~50	3470
MF52***3600	1~100	3600
MF52***3950	5~100	3950
MF52***4000	5~100	4000
MF52***4050	5~200	4050
MF52***4150	10~250	4150
MF52***4300	20~500	4300
MF52***4500	20~500	4500

Notes:

The 1^st fills with code of dimension.
The 2^nd fills with rated resistance.
The 3^rd fills with its precision symbol.
B value (25/50°C) tolerance: ±1%.
Default resistance tolerance: ±1%.
We will be able to supply products according to client's demands.
