Easy to Install Multiple Vehicle Tracking Device GPS GPRS Car Tracker

Prod Model:	X1
Dimension:	85mm*40mm*23mm
GSM:	Quad Bands (850/900/1800/1900MHz)
Type:	GPS Tracker
Use:	Automotive
Operating Principle:	GSM/GPS
Screen Size:	No Screen
Brand:	7-24telematics

Product Description

1. Key Features:

- SMS/GPRS Communication
- Wide Power range: 9-100V DC/1.5A
- I/O Ports: Ignition, Immobilizer, Alarm Siren Output
- SMS/GPRS Data Transmit
- Motor Battery Anti-killer Design
- Internal memory store for GPRS null zone data 2000waypoints
- Time based/Distance based position report
- Mileage Report
- Alarm alerts: GEO Fence, Speed over, Power tamper and Vibration alert
- Internal battery included
- OTA

2. Description:

X1 is a IP67 Rated GSM/GPS tracker dedicated design for car, motorcycle, scooters and e-bikes.

It's with superior receiver sensitivity, fast TTFF and Quad bands (850/900/1800/1900MHz) design. And it can continuously report current position to backend server.

What's most special for this tracker is Battery Anti-kill design and super low power consumption.

3. Technical Specifications:

-  GSM / GPRS features:
.  Queclink M26 (Quad-bands)
.  GPRS class 10
.  SMS (text, data)
.  Voice calling

- GPS features:
.  Skylab GPS Receiver
.  -160dB Sensitivity

- Hardware features:
.  IP67 Rated water proof
.  Motor Battery Anti-kill
.  Open CPU Technology
.  2000Waypoints for GPRS Null zone data storage
.  Built-in GSM/GPS Antenna
.  Internal backup battery with 350mAH
.  2Digital output< Immobilizer & Alarm siren drive>, 1xDigital Input
.  Dual GPS antenna design with External connection capability
.  USB Port for configuration and firmware update

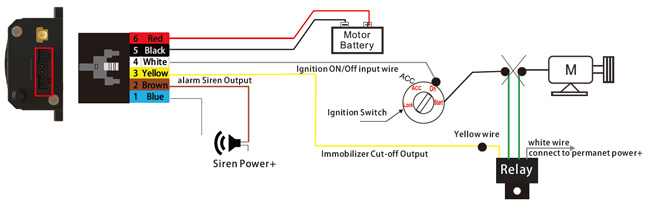

4. Installation Diagram:

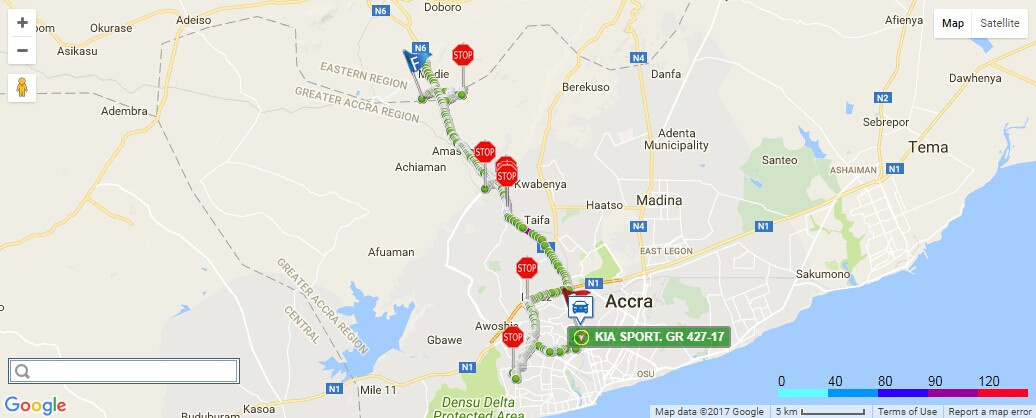

5. History Tracking Trace on Vehicle:
