Easy-to-Use EPDM Cold Shrink Tube

Easy-to-Use EPDM Cold Shrink Tube
Price: Negotiable/Piece
Min Order: 10000/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: SB-EPDM-HST
Product Name: Easy-to-Use EPDM Cold Shrink Tube
Application: Switch Baseplate
Type: Insulation Sleeve
Chemistry: Hybrid Insulation
Material: Plastic
Thermal Rating: 220 220
Maximum Voltage: <10KV
Color: Clear,Black, Color
Brand: Sunbow

Product Description

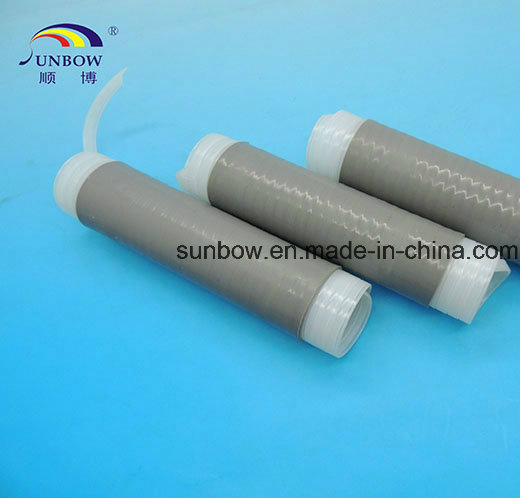

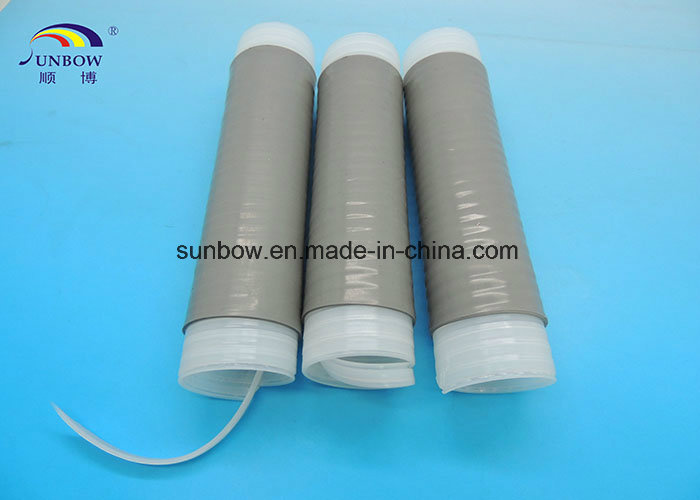

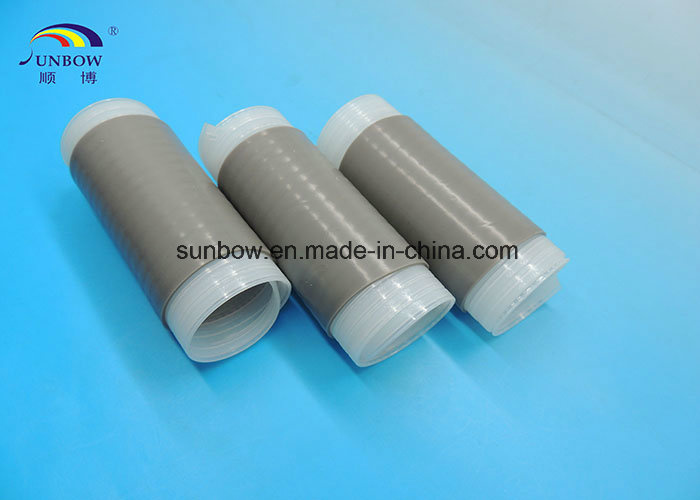

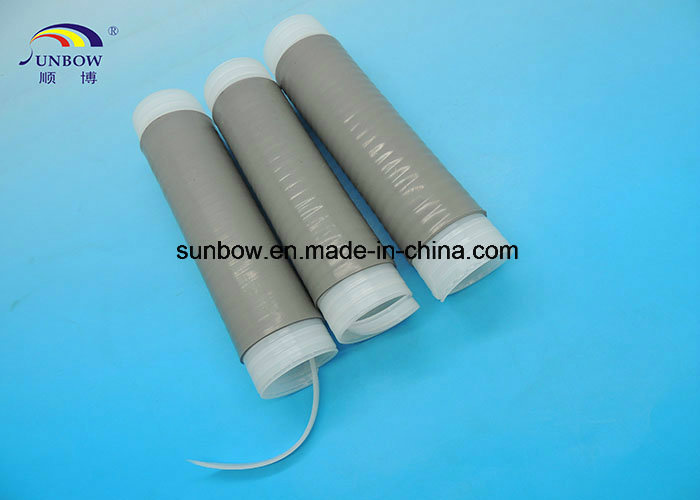

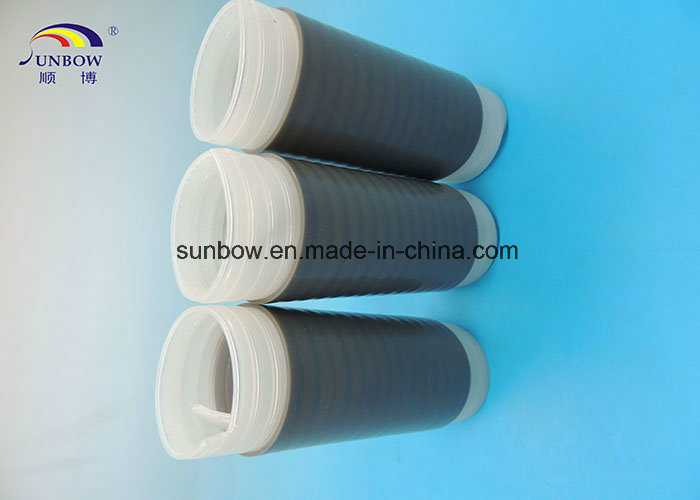

EPDM Cold Shrink Tube
Model Number: SB-WCST



Description
Cold shrink tubings are insulated, open-ended, rubber sleeve which is factory expanded and assembled onto removable plastic cores. The core

is removed after the tubes have been positioned for installation over an inline connection, coupling cable or terminations, allowing the tubes to shrink and form a water resistant seal. The cold shrink tubing are made of liquid silicon rubber.



Dimension

No.

Before expansion

 Inner Diameter (mm)

Before expansion

Length(mm)

Before expansion

Thickness(mm)

1

¢6.6

450

2±0.2

2

¢9.2

490

2±0.2

3

¢10

490

2±0.2

4

¢14

450

2±0.2

5

¢16

450

2±0.2

6

¢19

470

2±0.2

7

¢23

500

2±0.2

8

¢23

500

3±0.2

9

¢28

500

3±0.2

10

¢34

500

3±0.2

11

¢40

500

3±0.2

12

¢73

480

3±0.2

13

¢35

430

6±0.2

14

¢58

430

6±0.2


Shenzhen Sunbow Insulation Materials MFG. Co., Ltd, established in 2003, mainly engaged in the research & development, manufacture and sale of various insulation sleeving. And we had leading R&D engineers, had a batch of advantageous equipment and testing instruments. Now we had excess of 10 independent patents, gained high-tech enterprise in Shenzhen.

Our main products include fiberglass sleeving, silicone rubber tube, PVC tube, heat shrink tube, PTFE/FEP tube and so on. All our fiberglass sleeving had been obtained the UL and CSA certificates in 2010 (Cert No: E333178--UZIQ2, VW-1 for flame resistance requirement & E333177--UZFT2/8, 200C, 600V for thermal resistance requirement); Our heat shrink tube, silicone rubber tube and PTFE tube had been obtained UL certificate in 2013 (Cert. No. E360625); PVC tube had been obtained the UL certificates In in Apr. 2014 (Cert. No. E467953); In May. 2012, our products successfully had been passed CQC test (Certificate No. CQC12134072554). It provides security for domestic and foreign home appliance supplier in Chinese mainland market. Till now, we are the only one fiberglass sleeving manufacturer which obtained UL, CSA, and CQC certificates. Also we are the only one manufacturer which can provide certificates for all color and maximum size range (from 0.55mm to 25.4mm). Also all our products are in conformance with the European RoHS requirements, furthermore, based on European new requirements, we re-applied and obtained German PFOA and PFOS certificates and European Reach report.

Our products are widely used in H&N Motor, home appliance, electric heating equipment, Lighting, electronic instruments, wiring harness, transformer, power adapter, communication equipment, high/low voltage power distribution complete equipment, petrochemical industry, coal-mining industry, electric system and space flight and aviation area etc.

Due to business expansion, our factory moved to Gongming street, Guangming New District in Shenzhen. It occupies nearly 10, 000 square meters. We successfully passed ISO9001: 2008 and TS16949 international quality management system, now ISO14001 system is also pushing.

Over the years, we have been enjoying good reputation in our industry by adhering to the business philosophy of "Faith, Practical, and Responsive. " We also get supports and trusts from many international well-known enterprises. Thanks greatly for so many help and cooperation from our partnership, such as Philips, Whirlpool, Conair, Emerson, GE, Black & Decker, SEB, ABB, Schneider, Siemens, Electrolux, Toshiba, Panasonic, Hitachi, Mitsubishi, Samsung, China's Huawei, Haier, CRRC, and many other famous enterprises' trust directly and indirectly; Furthermore, as the second level supplier for automotive system, Sunbow products have been indexed in IMDS. We also have successfully become the qualified supplier for Volvo, Land-Rover, GM, Honda, Suzuki, Nissan, Hyundai and so on.

We know that our task is long-term and arduous, but opportunities are aside with challenges. We "Sunbow" people will take on a new look and work hard to provide our customers the best quality products, first-rate service, the most competitive price and the most reliable technical supports. Return to our customers, return on the community.
