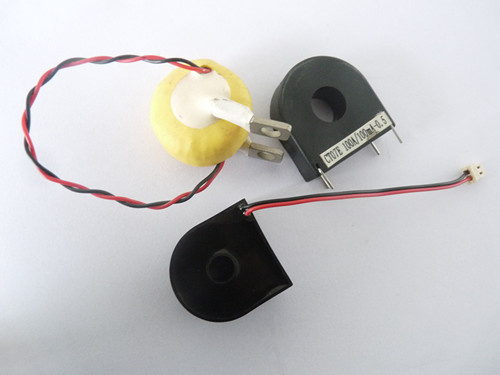

Economical Current Transformer for Energy Meter, 1: 2500t, 80A

Name: Economical Current Transformer for Energy Meter, 1: 2500t, 80A
Brand: all-electronics-online.com
SKU: 783258415
Availability: InStock
Rating: 5 (79 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	1: 2500T, 80A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Saturation Magnetic Induction:	Low Core Loss
Application:	Audio
Coil:	Amorphous Alloy Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Separated Winding Transformer
Phase:	Single and Three
Brand:	Coilcore

Product Description

Features:
    Low cost
    More than 30 standard sizes
    Non-symmetrical mounting pattern
Applications:
    For applications that require exceptional
            accuracy with minimal phase angle error
    Applications would include Voltage,power and
            energy monitoring devices.
Specifications:
    Exterior Material:PBT Resin UL flame retardant
rating 94-V0
     Interior Insulation:Epoxy Encapsulated
     Isolation Voltage:2500 Vrms for 1 minute
     Dielectric Resistance:1000 M Ohms @ 500 Vdc
     Surge Withstand:5000V(1.2/50μs standard
shock wave)optional
     Rated Load Resistance:100K Ohms
     Operating Temperature:-25 to +55°C,-40 to +85°C optional
    Frequency:50 to 400 Hz
      Accuracy Class:as defined in IEC 60044-2 Part 2
Voltage Transformers Class 0.1

primary current	5A
secondary current	5mA
turns ratio	1000:1
phase angle error(rated input)	≤60'(load 100Ω)
linear range	0~10A (load 100Ω)
linearity	0.5%(20%dot~120%dot)
Ratio error	-0.5%≤f≤+0.5%
isolation voltage	3000V
application	measurement
Encapsulation	Epoxy
installation	Wear heart type
operating temperature	-40~+70 celsius

Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:

1. Common Mode Filter Chokes

2. Current Transformer

3. Differential Mode Chokes

4. Automotive Chokes (for car audio)

5. Magnetic Amplifier

6. PFC Chokes

7. ISDN Splitter

8. GFCI (Ground-Fault Circuit Interrupters)

9. ELCB (Earth Leakage Circuit Breaker)

10. ALCI(Appliance Leakage-Current Interrupters)

11. Core and Current Transformer for energy meters (Watt hour -meters )

We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. Our R&D team, LED by experienced professors and senior engineers, are dedicated themselves to develop new products to satisfy customers' requirements about the specification and package of the needed goods.

Based on "Faith, Innovation, Solidarity, Enterprise", following the policy of "persisting in technique innovation and scientific management, best quality, respectable customer", we are always trying to contribute to customers.
