ED Type Sic Heating Elements for Kilns and Ovens

Name: ED Type Sic Heating Elements for Kilns and Ovens
Brand: all-electronics-online.com
SKU: 699081822
Availability: InStock
Rating: 4.7 (75 reviews)

Price:	US $ 10-200/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	6/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ED shape
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	10-54mm
Color:	Grey
Structure Material:	Non-Metallic Material
Application:	High Temperature Furnace
Principle:	Resistance Heating
Heat Transfer Surface:	Rods

Product Description

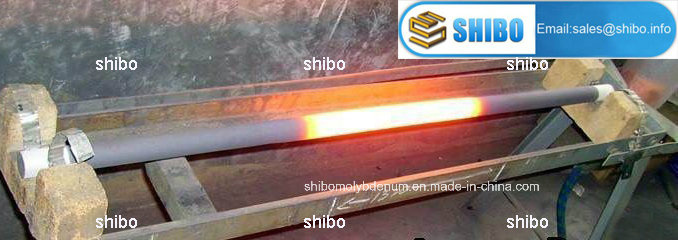

SiC heating elements for kilns and furnace

1) Specification
Working temperature: 600-1400degree
Size:10-54mm
Shape:Straight, dumble, U shape, spiral, etc
Feature:High performance, long life service
Order sample: Od=20mm Hz=300, CZ=300MM, OL=600MM. Resistance: 2.2ohms
Please specify as: Dia20*Le300*Lu150*2.2ohms

2) Physics charaters:

Specific gravity	2.6~2.8g/cm³	bend strength	>300kg
Hardness	>9 MOH′S	Tensile strength	>150kg/cm³
Porosity rate	<30%	Radiancy	0.85

3) The size for the SiC heating elements

OD(mm)	HZ(mm)	CZ(mm)	OL(mm)	Resistance(ohms)
8	100-300	60-200	240-700	2.1-8.6
12	100-400	100-350	300-1100	0.8-5.8
14	100-500	150-350	400-1200	0.7-5.6
16	200-600	200-350	600-1300	0.7-4.4
18	200-800	200-400	600-1600	0.7-5.8
20	200-800	250-600	700-2000	0.6-6.0
25	200-1200	250-700	700-2600	0.4-5.0
30	300-2000	250-800	800-3600	0.4-4.0
35	400-2000	250-800	900-3600	0.5-3.6
40	500-2700	250-800	1000-4300	0.5-3.4
45	500-3000	250-750	1000-4500	0.3-3.0
50	600-2500	300-750	1200-4000	0.3-2.5
54	600-2500	300-750	1200-4000	0.3-3.0

Packing: wooden case,
Delivery time: 10days.

Zhengzhou Shibo Nonferrous Metals Products Co., Ltd., is the High & New technology Enterprise specially engaged in developing, manufacturing and selling nonferrous metals products, electric heating elements, furnace and fire-proof material products.

Zhengzhou Shibo locates at Zhongyuan Industry Area, Zhengzhou City, Henan Province, where is a hub of communications, commercial and trading center in China. Holding the enterprise spirit of "Unity, Hard-working, Innovation, Efficiency", Zhengzhou Shibo enjoys high reputation for its high quality products and knight service in domestic and abroad, at the same time, the Company grows very fast with a total area of about 25, 000 square meters and 103 employees. The products are exported to USA, Europe, Middle East, South East Asia, Russia, Japan and Korea and so on owing to the keen consciousness of quality and commercial reputation.

Products of Zhengzhou Shibo are widely used in the applications of glass, Chinaware, lighting, magnetism materials, fluorescent materials, false crystal, Machinery, Electro Vacuum materials, industrial apparatus etc. There are four main categories of Products: Electric heating elements, Nonferrous metals products, Furnace and fire-proof material.

Zhengzhou Shibo values product quality and keeps pursuing excellent quality. Holding the concept of "Creating the value for customers and seeking for development with mutual benefit", Zhengzhou Shibo will sincerely serve the customers at home and abroad with quality products for a better future.

We sincerely welcome all the friends at home and abroad to visit our company.
