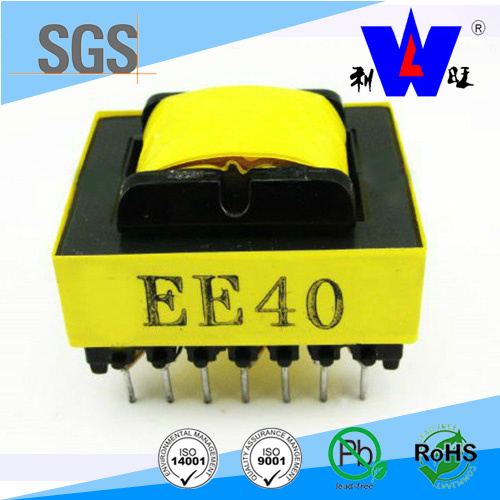

Ee/Ei Series High Frequency Wire Wound Transformers with RoHS
| Price: |
US $ 0.3-9/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
EE/EI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Environmental Certification: |
ISO14001 |
| Quality Certification: |
ISO9001 |
| Safety Certification: |
CQC03003095~3097 |
| Other Certification: |
RoHS |
| Type: |
Inverters |
| Product Name: |
Ee/Ei Series High Frequency Wire Wound Transformer |
| Application: |
Audio |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Winding Type: |
Auto-transformer |
| Certification: |
RoHS |
| Brand: |
Liwang |
Product Description
Product description of the Ee/Ei Series High Frequency Wire Wound Transformers with RoHSSpecifications:
1.Output:0.2W~2KW
2.Current:5A~1200A loads
3.ISO9001,RoHS approval
4.MOQ:1000piece
power transformer step down
Features:
1. Custom designs available
2. High efficiency of over 95%
3. High frequency range 10kHz-1MHz
4. High isolation strength
5. Lower profile and weight
6. high power density
7. High-temperature resistant
8. Operating temperature -40°C to +125°C
9. Power range 10w-10kw
Primary advantage
1.Customers requirements are welcome.
2. custom-made transformer as your design specification
3.We can apply SGS report of materials to prove all the products are ROHS.
4.We have experienced engineers, every one has more than 20 years experience.
5.Every goods must be test three times before shipped to ensure no unqualified products
Application scope:
electronic ballast,compact fluorescent lamp ,Television receiver,radio cassette player,
PC power supply,Monitor,audio, VCD,DVD,UPS,the electronic apparatus,
the noise rejection on the electronic transformer,Induction cooker,etc
EE EI Series High Frequency Transformer| 1. High Flux Density, Permeability and low Loss Ferrite |
| 2. High Efficiency and Low Heat Generation |
| 3. Designed to Meet Safety Standards: UL, CE, VDE, CQC and RoHS Compliant |
| 4. Operating Temperature Range: -10%ºC--+120ºC |
| 5. Storage Temperature: -30ºC--+130ºC |
| 6. Switching Frequency: 15KHz--200KHz |
| 7. Withstanding voltage: 1500V/3750VAC for One Minute between Primary and Secondary |
| 8. Insulation Ressitance: 500VDC 100MΩ min. between Primary and Secondary |
| 9. Heat Resistance Class: B(130ºC) |
EE EI Series High Frequency Transformer
CORE | CORE | CORE | CORE | CORE | CORE |
| EE8.3 | EE22 | EE40 | EE85 | EE140 | EE230 |
| EE10 | EE25 | EE41 | EE100 | EE150 | EE240 |
| EE12.6 | EE25.4 | EE42 | EE110 | EE160 | EE250 |
| EE13 | EE28 | EE55 | EE118 | EE188 | EE260 |
| EE16 | EE30 | EE65 | EE120 | EE193 | EE284 |
| EE19 | EE31 | EE70 | EE128 | EE200 | EE320 |
| EE20 | EE32 | EE80 | EE130 | EE210 | EE480 |
| EI16 | EI22 | EI28 | EI35 | EI60 | |
| EI19 | EI25 | EI30 | EI40 | EI70 | |
| EI20 | EI26 | EI33 | EI50 | | |
Our service
1.Your inquiry related to our products or prices will be replied in 24hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.Any your customized transformer we can help you to design and put into product.
If you have any questions or requirements,please contact us freely in any time.
Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.
Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.
Factory' S quality policy: "product quality, service in advance, customer satisfaction".
Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
