Ee Type High Frequency Power Transformers for Audio
| Price: |
US $ 0.8-1.2/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
EE13 EE16 EE20 EE25 EE30 EE70 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
High Frequency Transformer |
| Applicable Frequency Range: |
20 to 100kHz |
| Operating Frequency: |
Higher Than 200kHz |
| Application: |
Audio |
| Phase: |
Single |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Coil: |
Ee Core |
| Brand: |
Grewin High Frequency Transformer |
Product Description

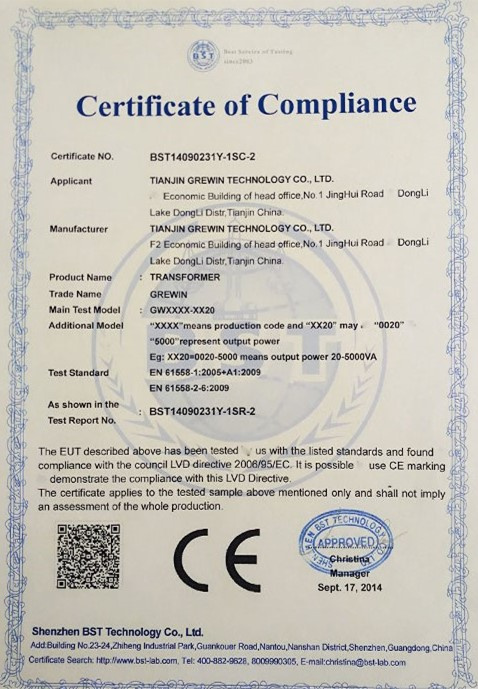

We have passed ISO9001:2015,CE,SGS approval and IEC report

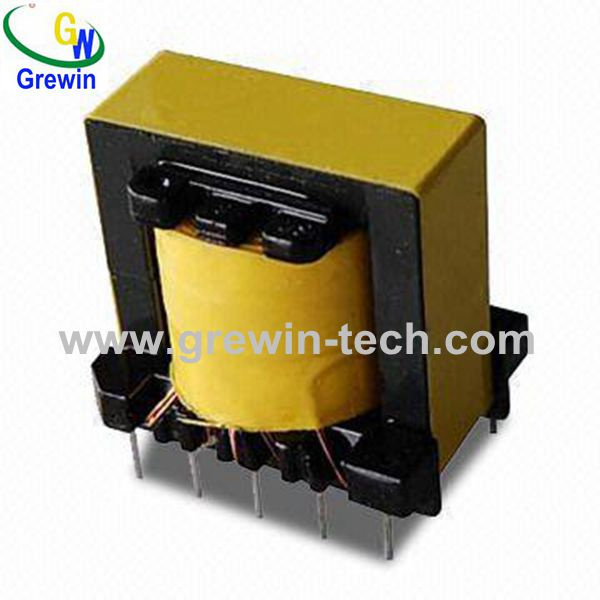

Product: high frequency transformers
Types: EE
Usage: suitable for EL/CCFL inverter or DC/DC converter
Prototype, medium and high quantity are available
A wide range of frequency requirements for choice
Customized designs are welcome, and we will meet your specifications
This is a dual E-core, center-leg air-gapped, split-primary-wound transformer designed to step up a 9vdc nominal supply to 120vdc (max) using a flyback configured DC-DC converter circuit.

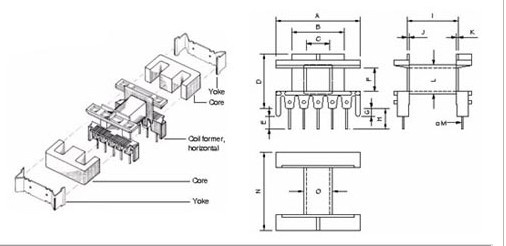

EE type high frequency transformer size:| |
E COILFORMERS
| HORIZONTAL COILFORMER DIMENSIONS (mm) |
TYPE |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
O |
E13 |
14.2 |
8.7 |
3.9 |
10.3 |
3.5 |
3.9 |
1.6 |
- |
8.7 |
0.6 |
0.6 |
5.1 |
0.45 |
16.2 |
5.1 |
E16 |
17.8 |
11.1 |
4.9 |
12.1 |
3.5 |
4.9 |
1.6 |
- |
11.2 |
0.6 |
0.6 |
6.1 |
0.45 |
20 |
6.1 |
E20 |
22 |
13.9 |
6.1 |
14.6 |
3.5 |
6.1 |
2 |
- |
13.7 |
0.6 |
0.6 |
7.6 |
0.45 |
21.2 |
7.6 |
E25 |
27.5 |
17.3 |
7.7 |
17.8 |
3.5 |
7.7 |
2.2 |
- |
17 |
0.7 |
0.7 |
9.4 |
0.7 |
28 |
9.4 |
E30 |
35.4 |
19.2 |
7.5 |
20 |
3.5 |
7.5 |
2.6 |
- |
19.1 |
0.8 |
0.8 |
8.9 |
0.7 |
31.4 |
8.9 |
E32 |
37.5 |
22.4 |
9.8 |
23 |
3.5 |
9.8 |
3 |
- |
21.9 |
0.9 |
0.9 |
11.6 |
0.7 |
35 |
11.6 |
E36 |
38.5 |
24.2 |
10.6 |
27.7 |
3.5 |
11.7 |
3 |
- |
23.5 |
1 |
1 |
14 |
0.7 |
37.4 |
12.8 |
E42 |
29.2 |
29.2 |
13 |
35 |
- |
15.8 |
- |
6 |
28.1 |
0.9 |
0.9 |
17.4 |
1x 0.4 |
37.5 |
15.1 |
E55 |
37 |
37 |
17.7 |
44 |
- |
21.7 |
- |
6 |
35.4 |
1 |
1 |
23.6 |
1x 0.4 |
43.5 |
20.3 |
E65 |
43.7 |
43.7 |
20.5 |
53.5 |
- |
27.8 |
- |
6.8 |
37.2 |
1 |
1 |
30.6 |
- |
48.4 |
22.8 |
E70 |
50 |
46 |
23.4 |
58 |
- |
32.7 |
- |
6 |
41.5 |
1.5 |
1.5 |
34.9 |
- |
53.8 |
25.6 |
|
1).Features:
Has a strong anti-interference, distributed capacitance, impedance, attenuation of low transmission, firm
structure,can fine-tune the inductance, etc., are widely used in fax
machines, PBX.
2). Applicable frequency range: 20 to 100kHz :
Operating frequency: higher than 200kHz
High magnetic flux and low loss magnetic materials
With low leakage inductance and high efficiency .
3).Applications:
PCB circuits, computer, TV, monitor, scanner, duplicator, mobile adapters, printer and other equipments and instruments.
UL insulation system for Class B (130), F (155), H (180)
4). Can make other customized Ferrite transformers:
Power range: core type using N67 grade material
<5: RM4, P11/7, EF12.6 and U10
5 to 10: E (F) 16, RM5 and P14/8
10 to 20: RM6, E (F) 20, P18, U15 and EFD15
20 to 50: RM8, P22, RM10 ETD29, E25 and EFD20
50 to 100: ETD29, ETD34, RM12, P30 and EFD25
100 to 200: ETD34, ETD39, ETD44, P36, E30, E42 and EFD30
200 to 500: ETD44, ETD49 and E55
>500: ETD54, ETD59 and E655)Advantage:
1.UL, CUL, CE, ISO9001:2008
2.We offer custom-made transformers, OEM and ODM are welcome
3.We deliver the quality you expect at consistently competitive prices
4.Transformer quality lifetime:10 Years.
5.Specialty Sales service:5 -10 Years
6.Transformers Test: 100% test before the shipmentAbout us:
