Product Description
1.Name:

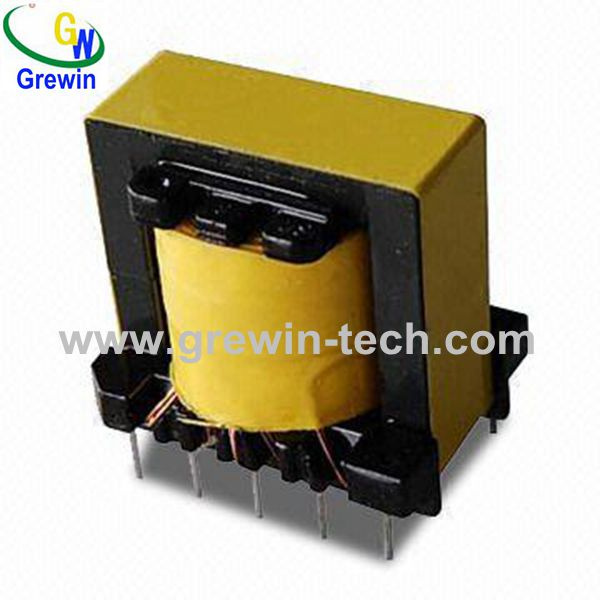

EE10 EE13 Core Transformer Power Inverter Transformer for LED Driver
Product Specification:
High-frequency transformers can be classified into EE/ER/EC/ RM/ ETD/ EFD/ECP type. The following technical parameters are for reference only, we can customized all series according to your requirement.
Other Related High Frequency Transformer Parameters:
Table1:ETD type Transformer Parameters
Model |
Output power : W
|
ETD29 |
30-90 |
ETD34 |
30-90 |
ETD39 |
20-500 |
ETD44 |
20-800 |
ETD49 |
20-800 |
ETD59 |
400-2000 |
Other Related High Frequency Transformer Parameters:
Table1: EE type Transformer Parameters
EE type transformer |
| Part No. | Terminal
Pins | Dimension mm | Type | Electrical parameter |
| A | B | C | Inductance | Output power(W) |
| EE-8.3 | 6 | 8.0 | 8.0 | 8.3 | V | 100.0uH | 0.2-3.0 |
| EE-10 | 8 | 11.5 | 10.2 | 10.2 | V | 80.0uH | 0.5-5.0 |
| EE-13 | 10 | 12.0 | 12.5 | 13.0 | V | 120.0uH | 0.5-8.0 |
| EE-16-1 | 6 | 14.8 | 13.3 | 16.0 | V | 90.0uH | 1.0-10.0 |
| EEL-16 | 10 | 28.5 | 16.0 | 21.9 | V | 600.0uH | 2.0-15.0 |
| EE-19-1 | 8 | 17.6 | 16.0 | 19.0 | V | 800.0uH | 3.0-30.0 |
| EEL19 | 10 | 31.5 | 16.0 | 21.1 | V | 1200.0uH | 3.0-30.0 |
| EE-25-1 | 6 | 20.0 | 18.2 | 25.2 | V | 2000.0uH | 3.0-45.0 |
| EEL25 | 8 | 35.3 | 17.5 | 25.2 | V | 2800.0uH | 3.0-45.0 |
| EE-30 | 10 | 21.0 | 29.2 | 30.0 | H | 900.0uH | 3.0-50.0 |
| EE-40 | 14 | 27.6 | 30.5 | 40.0 | H | 1500.0uH | 3.0-55.0 |
| EE-42/15-1 | 12 | 33.8 | 44.0 | 42.0 | H | 2000.0uH | 3.0-80.0 |
| EE-42/20-1 | 12 | 45.0 | 39.8 | 42.0 | V | 1900.0uH | 3.0-90.0 |
| EE-55 | 20 | 50.0 | 50.0 | 55.0 | H | 3000.0uH | 3.0-150.0 |
| EE-65 | 16 | 55.2 | 51.8 | 65.0 | H | 4500.0uH | 3.0-300.0 |
Table2:EPC type Transformer Parameters
Model | Dimension (mm) | VA | Weight |
| A | B | C | f=50KHz | f=100KHz | g |
| EPC-9.5 | 10 | 5.5 | 10 | 1.1 | 2.5 | 9 |
| EPC-13 | 14 | 9 | 14 | 5 | 8 | 11 |
| EPC-17 | 19 | 11 | 18 | 14 | 20 | 18 |
| EPC-19 | 20 | 13 | 21 | 18 | 27 | 21 |
| EPC-25 | 27 | 17 | 26 | 36 | 59 | 29 |
| EPC-27 | 29 | 17 | 36 | 52 | 75 | 35 |
Table3: ER type Transformer Parameters
| ER Transformer Specification |
| Model | PIN | Dimension |
| A | B | C+/-0.5 | D+/-0.5 | E | F |
| ER25.5 | 8 | 19.5 | 19.7 | 12.5 | 4 | 5 | 25.5 |
| ER28 | 12 | 30.5 | 23 | 17.5 | 4 | 5 | 31 |
| ER28 | 12 | 23.1 | 28.2 | 25 | 4 | 5 | 29.1 |
| ER28 | 12 | 36 | 27 | 20 | 4 | 5 | 30 |
| ER28 | 12 | 26.3 | 37.1 | 30 | 4 | 5 | 30.2 |
| ER33 | 14 | 37.5 | 28 | 22.5 | 4 | 5 | 36 |
| ER35 | 14 | 43.5 | 28 | 22.5 | 4 | 5 | 35.5 |
| ER35 | 16 | 29.1 | 40.3 | 35.4 | 4 | 5 | 40.3 |
| ER39 | 16 | 46 | 31.1 | 25 | 4 | 5 | 43.1 |
| ER39 | 16 | 33 | 41.5 | 30.85 | 4 | 7.5 | 42.3 |
| ER40 | 16 | 48 | 31.1 | 25 | 4 | 5 | 43.1 |
| ER4215 | 14 | 45.5 | 30 | 25 | 4 | 5 | 42 |
| ER4220 | 14 | 44 | 37.5 | 36 | 4 | 5 | 42 |
Table4: PQ type Transformer Parameters
| COILFORMER DIMENSIONS (mm) |
TYPE |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
O |
PQ20/16 |
23.15 |
17.35 |
23.15 |
20.3 |
2.5 |
9 |
3.8 |
5.1 |
17.9 |
9.7 |
7.82 |
10.8 |
2.4 |
0.6 |
7.35 |
PQ20/20 |
23.15 |
17.35 |
23.15 |
20.3 |
2.5 |
9 |
3.8 |
5.1 |
22 |
13.85 |
12 |
10.8 |
2.4 |
0.6 |
7.35 |
PQ26/20 |
26.6 |
21.85 |
29.75 |
25.4 |
- |
12.3 |
3.8 |
7.6 |
21.5 |
11.05 |
9 |
14.2 |
2.4 |
0.65 |
7.2 |
PQ26/25 |
26.6 |
21.85 |
29.75 |
25.4 |
- |
12.3 |
3.8 |
7.6 |
26.05 |
15.65 |
13.55 |
14.2 |
2.4 |
0.65 |
7.2 |
PQ32/20 |
32.15 |
26.7 |
34.3 |
30.5 |
- |
13.85 |
5.1 |
7.6 |
22.35 |
11.05 |
8.9 |
15.9 |
2.8 |
0.75 |
7.2 |
PQ32/30 |
32.15 |
26.7 |
34.3 |
30.5 |
- |
13.85 |
5.1 |
7.6 |
32.15 |
20.85 |
18.7 |
15.9 |
2.8 |
0.75 |
7.2 |
PQ35/35 |
35.00 |
31.0 |
39.0 |
- |
- |
15 |
- |
- |
37.4 |
- |
22.4 |
16.9 |
- |
1 |
5 |
2. amc transformer electronic transformer electrical ferrite coil magnet electronic power transformer
1).Features:
Has a strong anti-interference, distributed capacitance, impedance, attenuation of low transmission, firm
structure,can fine-tune the inductance, etc., are widely used in fax
machines, PBX.
2). Applicable frequency range: 20 to 100kHz :
Operating frequency: higher than 200kHz
High magnetic flux and low loss magnetic materials
With low leakage inductance and high efficiency .
3).Applications:
PCB circuits, computer, TV, monitor, scanner, duplicator, mobile adapters, printer and other equipments and instruments.
UL insulation system for Class B (130), F (155), H (180)
4). Can make other customized Ferrite transformers:
Power range: core type using N67 grade material
<5: RM4, P11/7, EF12.6 and U10
5 to 10: E (F) 16, RM5 and P14/8
10 to 20: RM6, E (F) 20, P18, U15 and EFD15
20 to 50: RM8, P22, RM10 ETD29, E25 and EFD20
50 to 100: ETD29, ETD34, RM12, P30 and EFD25
100 to 200: ETD34, ETD39, ETD44, P36, E30, E42 and EFD30
200 to 500: ETD44, ETD49 and E55
>500: ETD54, ETD59 and E65
5)Technical capabiliies:
Over 50 sets toroidal/annular coil winding machines, 3 EI type transformer lines,2 sets of vacuum annealing furnaces.
6)Advantage:
1.UL, CUL, CE, ISO9001:2008
2.We offer custom-made transformers, OEM and ODM are welcome
3.We deliver the quality you expect at consistently competitive prices
4.Transformer quality lifetime:10 Years.
5.Specialty Sales service:5 -10 Years
6.Transformers Test: 100% test before the shipment
