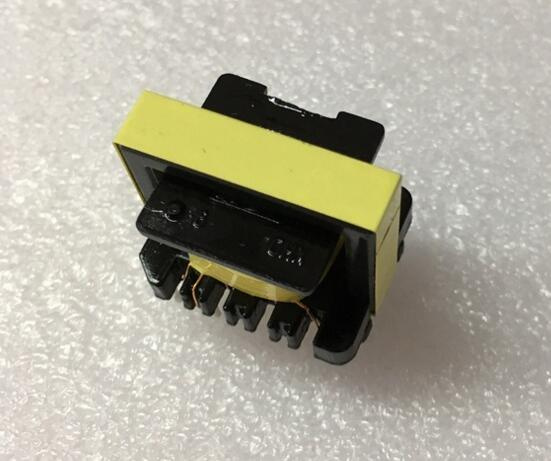

Ee16 High Frequency Electronic Power Transformer

Prod Model:	EE16
Application:	Rectifier
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Shape Of Coil:	Pq

Product Description




Product Description
Product Discription:

EE16  5+5  Pin Power Transformer

Feature: 100% Brand New, Top Quality
MOQ: 1000Units
Customize Specification are Welcome.
Pin:5+5 pin

Application:

· Refrigerator
· Washer
· Multimedia sounds and any other electric appliance products
· Using low-power loss
· Silicon sheet steel design
· Small no-load loss
· Efficiency is high and temperature rising is low
· Ways of installing products has needle foot and support type
· Available specifications:



Model No.	Specification	Array Pitch (mm)	Needle Picth (mm)	Pin Diameter (mm)	Pin Length (mm) Tollerance +-0.2mm
EE 10	Horizontal (4+4)	10.5	2.5	0.6	3
EE 10	Vertical(4+4)	8	2.5	0.5	4/5
EE 12.5	Vertical(5+5)	7.2	2.5	0.6	3.8
EE 12.7	Vertical(5+5)	8.5	2.5	0.6	4
EE 13	Horizontal(4+4)	10	2.5	0.6	3.5/4
EE 13	Vertical(5+5)	8.5	2.5	0.6	4
EE 13 widen	Horizontal (5+4)	15.5	2.5-3.0	0.6	3.5
EE 16 widen	Horizontal (5+5)	15.5	3.25	0.7	3.7
EE 16	Horizontal (5+5)	13	2.5	0.6	4
EE 16	Horizontal (4+4)	11	3	0.6	4
EE 16	Vertical(3+3)	9	3	0.6	4.7
EE 16	Vertical(5+5)	10.5	3.2	0.6	3.7
EE 19	Horizontal (5+5)	12.5	3	0.7	4
EE 19	Vertical(3+3)	11	5	0.7	5
EE 19	Vertical(4+3)baffle	11	4	0.7	4.1
EE 22	Vertical(5+5)baffle	10.1	4	0.8	3.6
EE 25	Vertical(4+4)	12	5	0.8	4.5
EE 28	Vertical(5+5)	17.5	5	0.8	4

Packaging & Shipping

Inside packing:
Transparent ziplock bag or as request
Outside packing:
Carton or as request


Shipping: By express/air/ sea according to your order
Within 3 working days when deliver by express;
Within 30 working days when deliver by plane or ship.



Our Services

1-Your Visit is highly welcomed.
2-Sample is Free, Shipping Cost should be covered by Buyer.
3 -Prompt production & delivery
4-Customized specifications accepted
5 -OEM & ODM service.
6- With our own factory, the products is in competitive price with high quality



FAQ
1. What information do you need if we want to custom wire harness or cable assembly?
Please send your drawing or sample to us.
2. If we don't have drawing or sample, just a photo, what information do you need?
If so, you need to tell us the Model about Connector and Cable UL Number with AWG, and the Length of Cable, last How to contact each wire to connector.
3. When we can get the sample? How about the cost?
Free Sample will be sent in 3-5 days if buyer agree to pay for shipping cost.
4. What's your delivery time?
Our normal delivery time is 10-15 days, if urgent, we will put in prior.
5. How we can trust your quality?
All material in ROHS, up to standard, 100% test before delivery.
6. What's your price?
Our price is base on different market and can be negotiated.
7. What's your after-sale service?
We provide technique support for you and help you improve your design or drawing, also can help you solve your customer problem.




Temperature Class	Class B (130°C)
Ambient Temperature (ta)	70°C
certification	ISO9001 and 10041, SGS, VDE,UL
Quality Control	From material purchase, pre-production machine testing to productive process,  finished goods shipment, each procedure we have strictly testing to make sure our each product satisfy you.
MOQ	100 units
Payment Term	T/T, Western Union, Paypal...
