Ee28 High Frequency Transformer Ferrite Core High Frequency Transformer

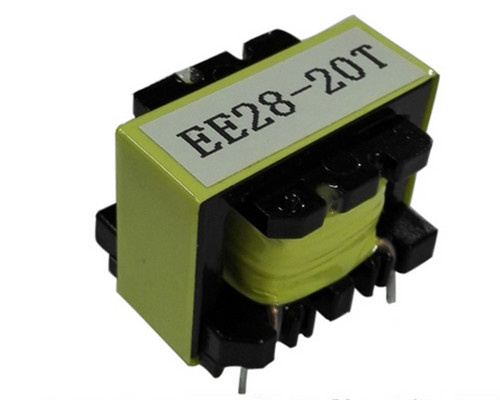

Name: Ee28 High Frequency Transformer Ferrite Core High Frequency Transformer
Brand: all-electronics-online.com
SKU: 784322395
Availability: InStock
Rating: 4.6 (48 reviews)

Price:	US $ 1/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

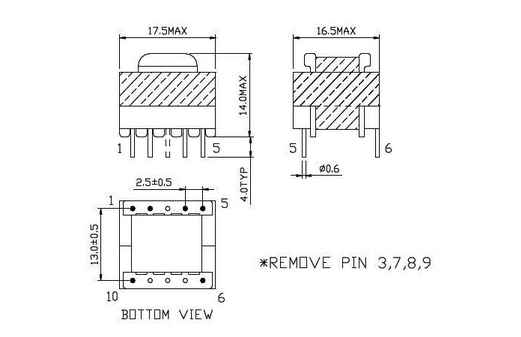

Prod Model:	EE28
High Saturation Magnetic Induction:	Low Core Loss
Application:	Lighting
Type:	Current Transformer
Phase:	Single and Three

Product Description

High frequency transformer(EI EE series)
High frequency transformer(EI EE series)
EE series	EE10	EE13	EE16	EE19	EE25
EE series	EE28	EE30	EE33
EI series	EI22	EI25	EI28	EI30	EI33
EI series	EI35	EI38	EI40	EI42

Features:
High Flux Density, Permeability and low Loss Ferrite
Switching Frequency: 15KHz--200KHz
High efficiency and low temperature rise
Excellent power densities
Low skin effect and the proximity effect design
Operating temperature from -40 to 90°C
Storage temperature from -40 to 130°C
Output power range from 0.3w to 500w

Series	Feature
EE Transformer	applied in the switching power supply,main power transformer
EC/EER/ER Transformer	applied in the linear filter ,current tranformer,smoothing choke coil,drive transformer, switching power transformers and chokes
RM Transformer	filters, inductors and transformers for telecommunication other electronic equipment
POT Transformer	filters for telecommunication equipment,and various kinds of inductors and transformers
DR Core	Choke coils, Peaking coils, Linearity coils, Alarm coils, Power choke coils, Fixed choke coils, Filtering coils,etc;
EI Transformer	Various kinds of transformers and chokes.
TOROIDAL core	Pulse and wide-band transformers, various types of filters, inductors and chokes.
EF Transformer	applied in the switching power supply,main power transformer
EFD Transformer	Auxiliary powr transformer,main power transformer,choke coils
EPC Transformer	Auxiliary powr transformer,main power transformer
PQ Transformer	applied in the linear filter,choke,pulse transformer,drive transformer
UU Transformer	varieties of switching power supply transformer,coke coils et

Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:

1. Common Mode Filter Chokes

2. Current Transformer

3. Differential Mode Chokes

4. Automotive Chokes (for car audio)

5. Magnetic Amplifier

6. PFC Chokes

7. ISDN Splitter

8. GFCI (Ground-Fault Circuit Interrupters)

9. ELCB (Earth Leakage Circuit Breaker)

10. ALCI(Appliance Leakage-Current Interrupters)

11. Core and Current Transformer for energy meters (Watt hour -meters )

We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. Our R&D team, LED by experienced professors and senior engineers, are dedicated themselves to develop new products to satisfy customers' requirements about the specification and package of the needed goods.

Based on "Faith, Innovation, Solidarity, Enterprise", following the policy of "persisting in technique innovation and scientific management, best quality, respectable customer", we are always trying to contribute to customers.
