Ef16 High Frequency Transformer for PCB Board

Name: Ef16 High Frequency Transformer for PCB Board
Brand: all-electronics-online.com
SKU: 775819905
Availability: InStock
Rating: 4.8 (66 reviews)

Price:	US $ 0.226-0.25/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	XP-EF16-SW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Audio
Phase:	Three
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Brand:	XP Power
Coil:	Ferrite Core

Product Description

Features:
1. Operating Frequency: 50~200KHz
2. Low-cost, all models mainly used in less demanding fields on the electromagnetic shielding power field.
3. Power frequency because of work, safety regulations and other requirements of the different temperature level will change.

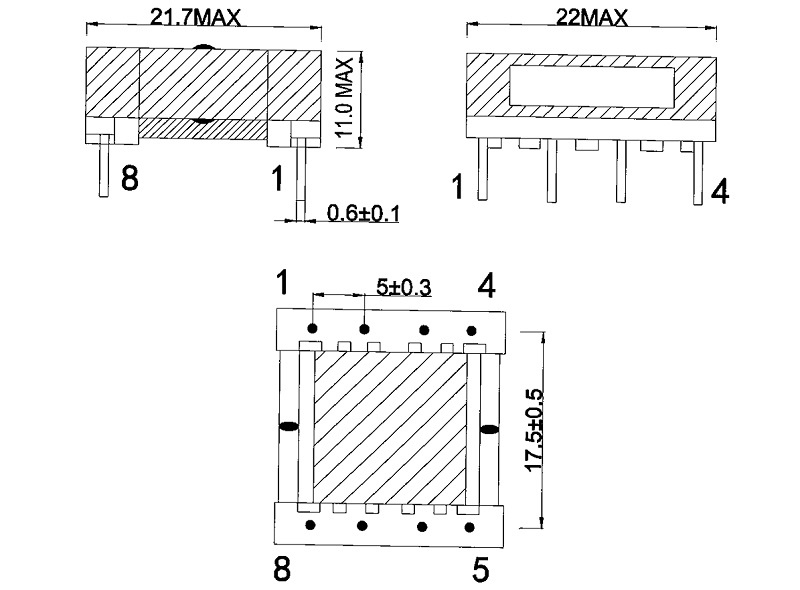

Specifications (Unit: mm):

Type	Shape Structure	Dimension						Power range
Type	Shape Structure	A	B	C	D	E	F	Power range
EE10	Horizontal	12.0Max	10.8±0.5	12.4±0.5	2.5±0.2	2.5±0.3	10.5±0.5	4W Max
EE13		15.0Max	13.5±0.5	13.85±0.5	2.5±0.2	2.5±0.3	10.2±0.5	6W Max
EE16		17.5Max	15.0±0.5	13.6±0.5	3.5±0.2	3.0±0.3	11.0±0.5	10W Max
EE19		22.0Max	112.4±0.5	17.4±0.5	4.0±0.2	3.0±0.3	12.5±0.5	15W Max
EE22		24.0Max	13.0±0.5	15.7±0.5	4.0±0.2	4.8±0.3	13.0±0.5	20W Max
EE25		26.5Max	17.3±0.5	19.4±0.5	4.0±0.2	5.0±0.3	14.0±0.5	25W Max
EE30		32.0Max	22.0±0.5	32.0Max	4.0±0.2	5.0±0.3	25.0±0.5	145W Max
EE40		34.0Max	28.6±0.5	35.0Max	4.0±0.2	5.0±0.3	25.8±0.5	350W Max
EE42		42.0Max	39.1±0.5	45.0Max	4.0±0.2	5.0±0.3	37.8±0.5	450W Max
EE55		58.0Max	56.0±0.5	58.0Max	4.0±0.2	5.0±0.3	40.0±0.5	500W Max

Type	Shape Structure	Dimension						Power range
Type	Shape Structure	A	B	C	D	E	F	Power range
EE8.3	Vertical	10.0Max	9.5Max	8.0±0.5	2.5±0.2	3.3±0.3	5.8±0.5	3W Max
EE10		12.0Max	13.0Max	10.4±0.5	2.5±0.2	2.5±0.3	5.8±0.5	4W Max
EE13		15.0Max	14.0Max	12.2±0.5	2.5±0.2	2.5±0.3	5.8±0.5	6W Max
EE16		17.5Max	15.0Max	14.4±0.5	3.5±0.2	3.8±0.3	5.8±0.5	10W Max
EE19		22.0Max	19.0Max	15.9±0.5	4.0±0.2	4.0±0.3	5.8±0.5	15W Max
EE22		24.0Max	20.0Max	16.5±0.5	4.0±0.2	4.0±0.3	5.8±0.5	20W Max
EE25		26.5Max	22.0Max	17.2±0.5	4.0±0.2	5.0±0.3	5.8±0.5	25W Max
EE28		30.0Max	22.0Max	21.8±0.5	4.0±0.2	5.0±0.3	5.8±0.5	50W Max
EE30		32.0Max	30.0Max	28.0±0.5	4.0±0.2	5.0±0.3	5.8±0.5	145W Max
EE35		37.0Max	30.0Max	25.6±0.5	4.0±0.2	5.0±0.3	5.8±0.5	350W Max
EE40		42.0Max	33.0Max	27.9±0.5	4.0±0.2	5.0±0.3	5.8±0.5	450W Max
EE42		46.5Max	43.0Max	37.4±0.5	4.0±0.2	5.0±0.3	5.8±0.5	500W Max
EE55		57.0Max	58.0Max	42.0±0.5	4.0±0.2	5.0±0.3	5.8±0.5	650W Max

Note: The above are common skeleton styles; we accept customer requirements ODM or OEM. Welcome your design drawings or samples.

Electrical performance:
1. Operating frequency: 20kHz-500KHz
2. Output power: 30 to 80 W
3. Operating temperature:-40 ºCto +125 ºC
4. Storage temperature:-25 ºCto +85 ºC
  Applications:
Household appliances, switching power supplies, communications equipments, medical equipments, production equipments, CCTV, computers, lighting equipments.

Kindly Reminder:
1. About the SAMPLES. Please provide specific specifications or sample material, we will evaluate your products, design and produce samples.
2. About PRICE. Transformers are custom products, due to the different materials and design, even if the same model, the price is not the same. The price also depends on the complexity of the  parameters and the amount of orders.
3. About SHIPPING. Samples in 3-5 days; mass production in 7-15 days.
5. Packaging, logistics, according to the specific requirements of the purchase and sale contracts.
6. Contact us now for more details:
   Business hotlines: + 86-551-63748663  63745886

XP Power that was established in 1992 is a manufacturing, integrating research & development, trading company, supply as a whole. The company is one of the world's leading developers and manufacturers of power transformers, power inductors, choke coils, high frequency transformers and reactors solutions for the electronics industry with specialists who are versed in all the technical and legislation requirements. The products of XP Power are stable quality, full range of variety, prompt delivery, competitive price so that they are applicable in new energy, communication facilities, UPS power, household appliances, Medical instrument, monitor, automotive electronics and so many other fields. After over a dozen of years' development, the company has complete quality management system, scientific technology research and development system and good service team. And now XP Power has fixed assets to the value of USD 60 million and six hundred employees and three factories located in Foshan, Hefei and Xi' An. The company has an annual production capacity of 50 million PCS. Our main market is Europe, North & South America, Middle East and Asia.

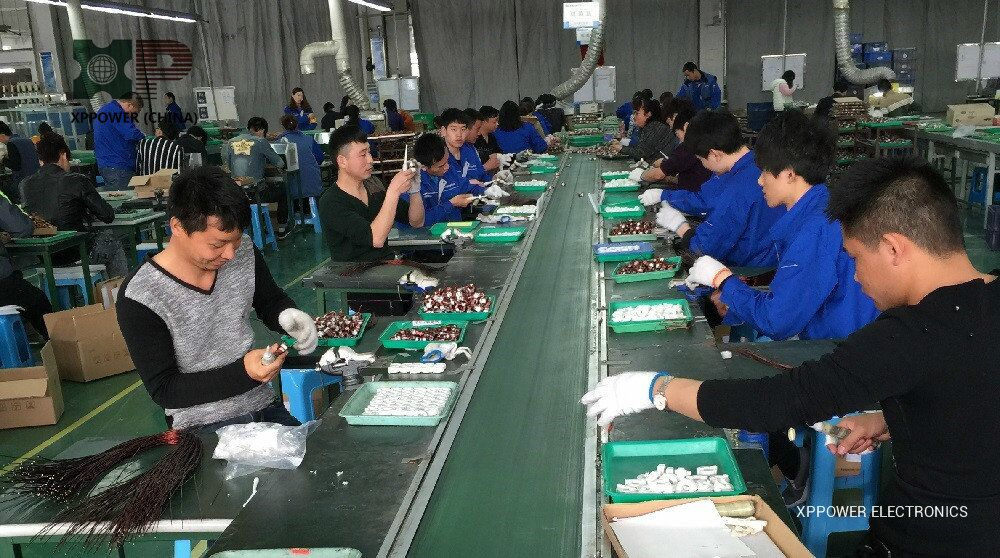

The company is equipped with advanced manufacturing equipment and testing apparatus as well as a R&D center comprised by various technicians, which can offer different customers different new products according to customers' needs, developing and researching more new projects. Our company always adheres to the high quality and technological innovation. In the process of production the rigorous quality inspection standards and inspection technique are used in order to realize the total quality management from the incoming inspection, process inspection, to the outgoing inspection, which guarantee the high quality. The quality of our products recognizes by some authorities and gets all sorts of world-class certification, such as ISO9001 and ISO14001, etc. Our products are RoHS and REACH compliant.

XP Power supplies its products to 30 countries across the globe. Every year, over 30 million coils are wound, over 20 million high frequency transformers are manufactured, and thousands of modules are mounted.
