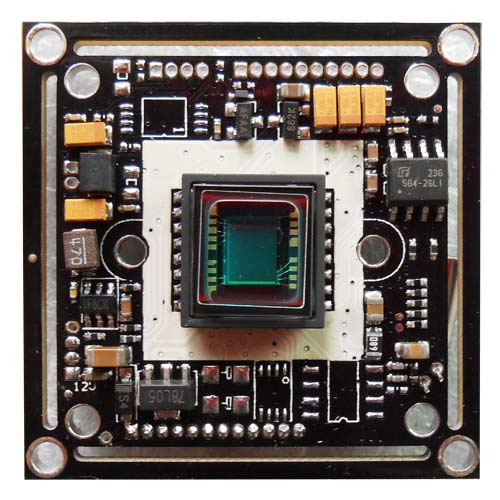

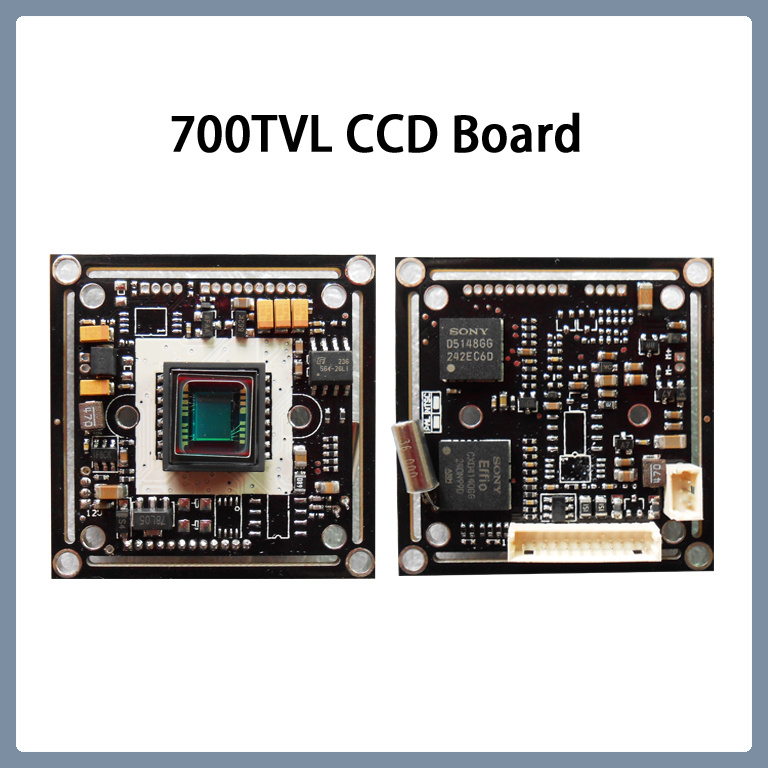

Effio-E 700tvl Sony CCD Board for CCTV Camera

Effio-E 700tvl Sony CCD Board for CCTV Camera
Price: US $ 10/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: Western Union,Paypal,Money Gram
Contact Supplier
Showroom Product Company Profile
Prod Model: 700tvl CCD Board
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Horizontal Resolution: 700TV Lines
Power Consumption: 60mA
Dimension: 38X38mm
Operation Temperature: -10c~ +50c Rh95% Max

Product Description



Feature

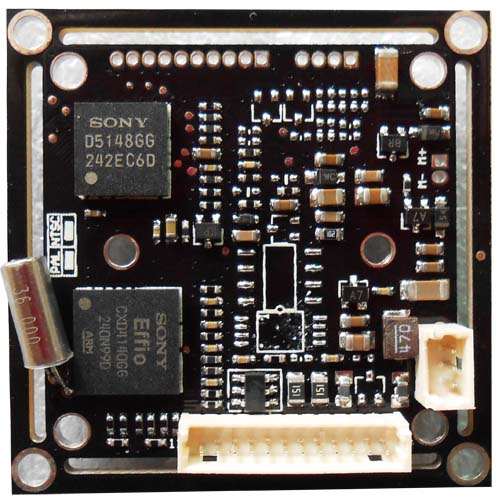

The image sensor ( Sony CCD 811) +Sony Effio DSP (CXD4140)
1/3" Sony 960H Exview HAD CCD II
High resolution to achieve the 700TVL
OSD Menu
ATR( Adaptive Tone Reproduction
2D noise reduction
Motion detection
Privacy mask
HLC(High Light Compensation)
Technical  parameters
ELECTRICAL
Input  VoltageDC  12V10%
Power  Consumption60mA
VIDEO
Imaging  Device1/3' '   sony  960H  Exview  HAD  CCD  II
Total  PixelsNTSC: 811(H)*508(V)      PAL: 795(H)*596(V)
Effective  PixelsNTSC: 768(H)*494(V)      PAL: 752(H)*582(V)
Scanning  SystemNTSC:   525  Lines,   60  Field/sec            PAL:   625  Lines  50  Field/sec
Sync  SystemInternal  Synchronization
Horizontal  Resolution700TV  Lines
Min. IlluminationColor: 0.01Lux/F1.2
S/N(Y  signal)52dB
Video  OutputCVBS: 1.0Vp-p, 75
OPERATIONAL
On  Screen  DisplayEnglish/Chinese/Japanese/French/Spanish/German/Polish/Russian
Camera  TitleOn/Off(Displayed  52  characters)
Day& NightAuto  /  Color  /  Night(IRCUT  Optional)
Backlight  CompensationBLC  /  HLC  /  OFF
Motion  DetectionOn  /  Off(8  zones)
Privacy  MaskingOn  /  Off(8  zones)
Privacy  Masking  Coloradjustable
2D  Noise  FilterOn  /  Off
White  BalanceManual, Push  Lock/Push/User1/User2/ANTI  CR/ATW(1700° ~11000° K)
Electronic  Shutter  TimeNTSC  1/60~1/100,   000Sec          PAL  1/50~1/100,   000Sec
SharpnessOn  /  Off(Level  adjustable)
Flip  /  MirrorOn  /  Off
ENVIRONMENTAL
Dimension38x38mm  &   32x32mm
Operation  Temperature-10C~  +50C  RH95%  MAX
Storage  Temperature-20C~+60C  RH95%  MAX
