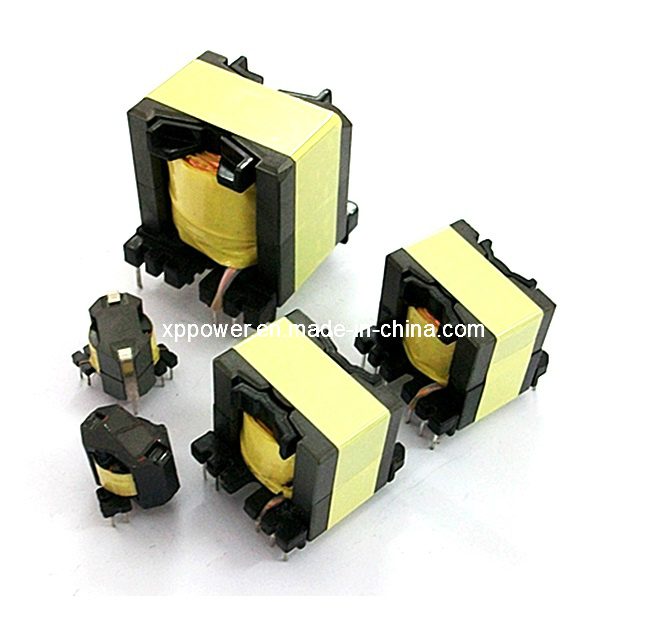

Ei/Ee/Ef Type High Frequency Power Transformers

Name: Ei/Ee/Ef Type High Frequency Power Transformers
Brand: all-electronics-online.com
SKU: 724546175
Availability: InStock
Rating: 4.6 (137 reviews)

Price:	US $ 0.5-0.6/Piece
Trade Terms:	FOB,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	XP-EF16-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Audio
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Multi-winding Transformer

Product Description

FEATURES:
-Low Profile
-Inexpensive Type
-High Reliability
- Low price
- Cost-effective
- High impedance and low loss
-Easily Inserted into PCB
- RoHS compliance and UL
- Custom designs are welcome

APPLICATION:
-DC/DC Converter Transformer
-Current Transformer
-Switching power supply, Adapter and UPS
-Computer products
-DVD
-LED power board
-LCD TV & Monitor Displays Power Boards
-Consumer Electric Products & Battery Charger, Printers

Reasons of our top-quality components help your business succeed:
-22 years of experience customizing and power transformers
-Your professional and reliable partner for various electronics
- Over 1000 buyers value our products
-20000m2 factory with 21 production lines and 800 employees
- 5 million units annual capacity
- Our Products has the UL Insulation System, Quality is guaranteed
- High quality and best services

Browse our online showroom and contact us with your OEM/ODM specifications. Our operators are waiting your calls and E-mail. XPPOWER will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information.

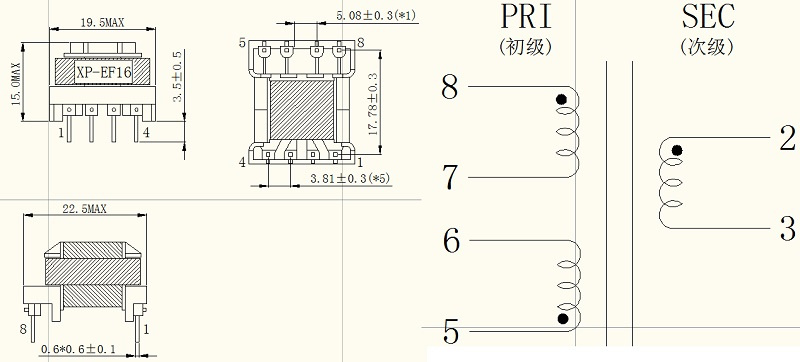

Nr.	Product type	Mounting style	Pin number (all PIN)	Product length (mm Max)	Product width (mm Max.)	Product Height (mm Max.)

1

WDG	WIRE	SIZE	TURNS	WINDING	Insulation	PIN
WDG	WIRE	SIZE	TURNS	WINDING	Tape	S	F
W1	Φ0.22mm	2UEW	95Ts Ref	Closed	3Ts	8	7
W2	Φ0.60mm	2UEW	10Ts Ref	Closed	3Ts	2	3
W3	Φ0.25mm	2UEW	19Ts Ref	Closed	3Ts	5	6

XP Power that was established in 1992 is a manufacturing, integrating research & development, trading company, supply as a whole. The company is one of the world's leading developers and manufacturers of power transformers, power inductors, choke coils, high frequency transformers and reactors solutions for the electronics industry with specialists who are versed in all the technical and legislation requirements. The products of XP Power are stable quality, full range of variety, prompt delivery, competitive price so that they are applicable in new energy, communication facilities, UPS power, household appliances, Medical instrument, monitor, automotive electronics and so many other fields. After over a dozen of years' development, the company has complete quality management system, scientific technology research and development system and good service team. And now XP Power has fixed assets to the value of USD 60 million and six hundred employees and three factories located in Foshan, Hefei and Xi' An. The company has an annual production capacity of 50 million PCS. Our main market is Europe, North & South America, Middle East and Asia.

The company is equipped with advanced manufacturing equipment and testing apparatus as well as a R&D center comprised by various technicians, which can offer different customers different new products according to customers' needs, developing and researching more new projects. Our company always adheres to the high quality and technological innovation. In the process of production the rigorous quality inspection standards and inspection technique are used in order to realize the total quality management from the incoming inspection, process inspection, to the outgoing inspection, which guarantee the high quality. The quality of our products recognizes by some authorities and gets all sorts of world-class certification, such as ISO9001 and ISO14001, etc. Our products are RoHS and REACH compliant.

XP Power supplies its products to 30 countries across the globe. Every year, over 30 million coils are wound, over 20 million high frequency transformers are manufactured, and thousands of modules are mounted.
