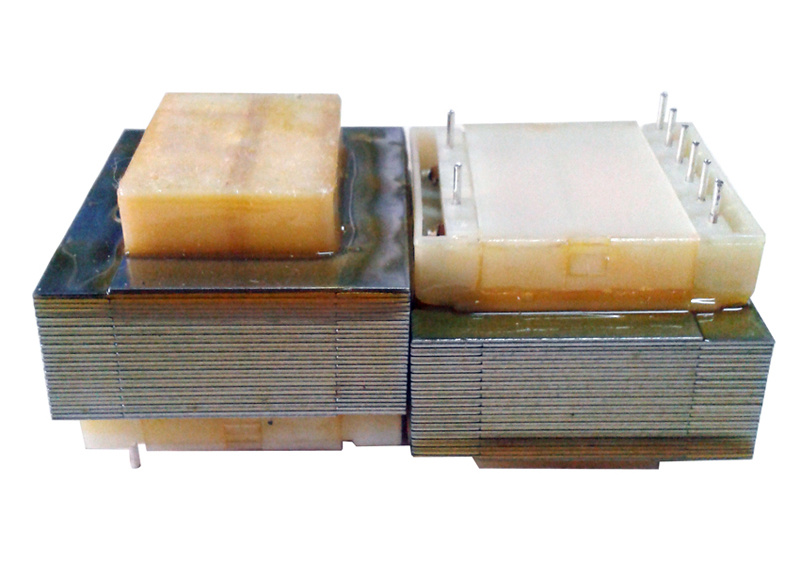

Ei38 Transformer for Power Supply (EI38-13 4VA)

Prod Model:	EI38-13 4VA
Phase:	Single
Coil:	Shell-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Two-winding Transformer

Product Description

PART NUMBER	STRUCTURE			HEIGHT(H)	WEIGHT
		TA=40ºC	TA=70ºC
RD3813VXX	EI38-13		4.0VA	29	0.130KG

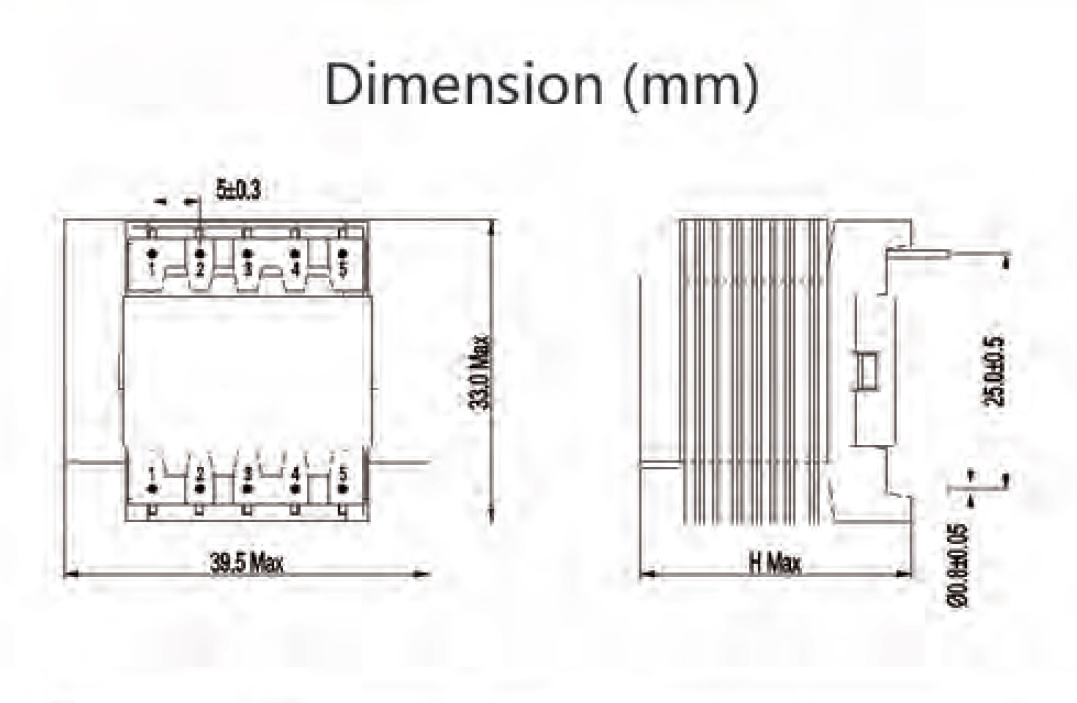

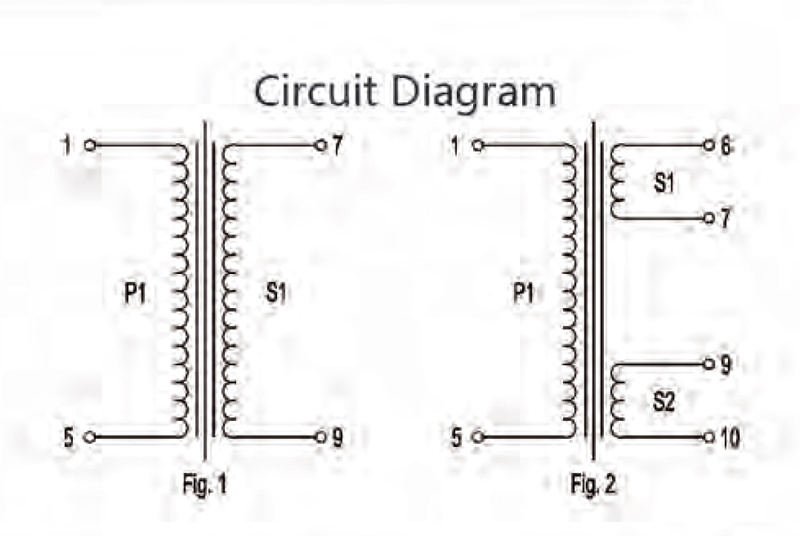

PART NUMBER	OUTPUT VOLTAGE(V)	OUTPUT CURRENT(mA)	CIRCUIT DIAGRAM
INPUT:230V
RD3813V00	4.5	889	FIG.1
RD3813V01	6	667	FIG.1
RD3813V02	7.5	533	FIG.1
RD3813V03	9	444	FIG.1
RD3813V04	12	333	FIG.1
RD3813V05	15	267	FIG.1
RD3813V06	18	222	FIG.1
RD3813V07	24	167	FIG.1
RD3813V50	2 X 4.5	2 X444	FIG.2
RD3813V51	2 X 6	2 X 333	FIG.2
RD3813V52	2 X 7.5	2 X 267	FIG.2
RD3813V53	2 X 9	2 X 222	FIG.2
RD3813V54	2 X 12	2 X 167	FIG.2
RD3813V55	2 X 15	2 X 133	FIG.2
RD3813V56	2 X 18	2 X 111	FIG.2
RD3813V57	2 X 24	2 X 83	FIG.2

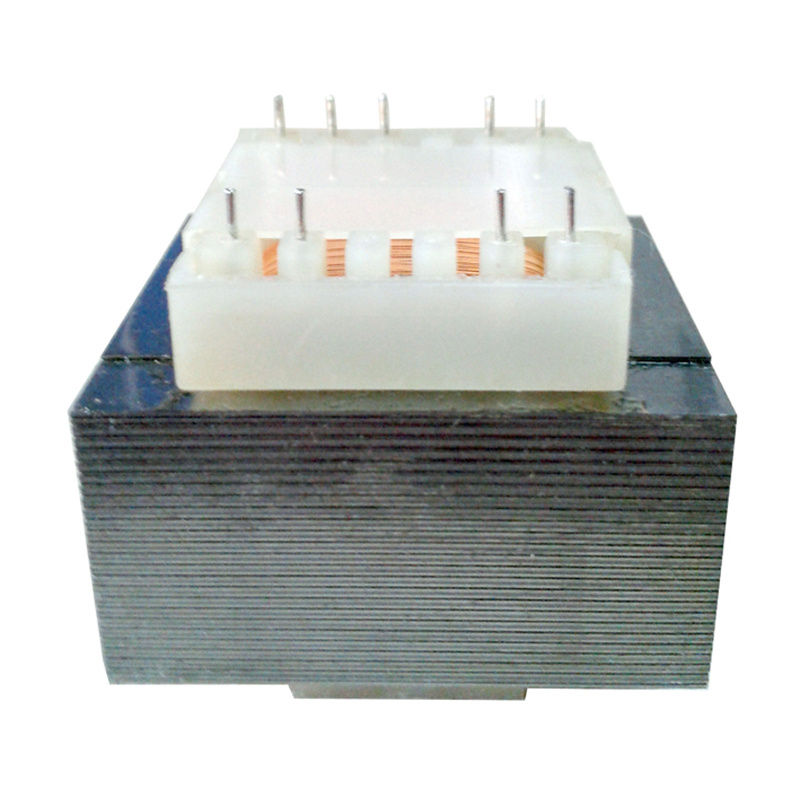

Open Frame Transformer EI38 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70 max)
Insulation class-class B(130 )
Custom design available
TECHNICAL INFORMATION:
1. High capacity up to 4.0VA
2. Non short-circuit-proof at temperature class ta 70 /B
3. Excellent temperature fluctuation resistance properties
4. High electrical safety and long service-life features
5. High voltage resistance
6. Certified item quality tested
