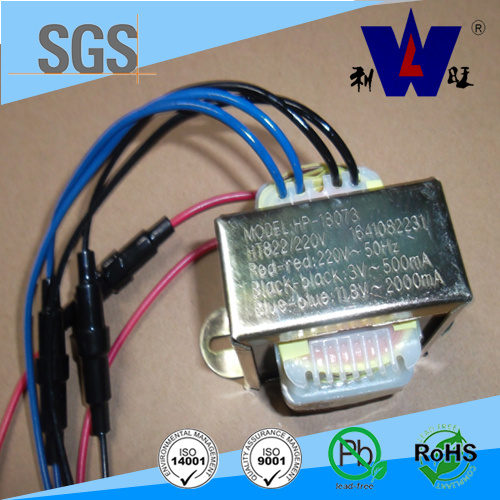

Ei48 Ei57 Silicon Sheet Low Frequency Transformer

Name: Ei48 Ei57 Silicon Sheet Low Frequency Transformer
Brand: all-electronics-online.com
SKU: 696449915
Availability: InStock
Rating: 4.7 (102 reviews)

Price:	US $ 0.5-5/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	EI
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Environmental Ceertification:	ISO14001
Quality Certification:	ISO9001
Coil Structure:	Toroidal
Model Number:	Ei
Application:	Audio
Phase:	Single
Coil:	Core-type Transformer
Winding Type:	Multi-winding Transformer
Certification:	RoHS
Usage:	High Frequency
Brand:	Liwang

Product Description

Describe:
Core Size: EI-19 EI20 EI28 EI35 EI41 EI48 EI57 EI76 EI96 EI105 EI-114
Input: 100-400V(50/60Hz)
Power: 0--300VA
Insulation Strength---1500V/2500V/3750VRMS Hipot
Custom versions available upon request
All data are subject to modification to meet your needs
If possible, Samples can be provied, It's better if u have samples or drawing

Feature:
ODM/OEM
Safe and dependable performance, reasonable design. Good
Spread heat, small magnetism interference. Convenient installation
Qualified material and competative price
Can be used in all kinds of electrical appliance
High quality and favourable price
Advantage: Have nearly 20 years experience

NOTES:
Custom versions available upon request
All data are subject to modification without prior notice
As we all know, transformers are not similar to other productions, we should produce as your need, different customers need different type transformer. So kindly hope you can provide us more details, such as input, output and dimension and so on. Thanks.

Product	low frequency transformer
Model number	DC024001500A
Input	230V AC; 50HZ(RED-RED)
Output	24Vac 1.5A(YEL-YEL))
Frequency	50/60HZ
Hi-pot test	3.0KV(Pri-Sec)
Insulation class	B
Working conditions temperature	-20° C --70° C
Fire class	UL94V-0
Weight	1.1KGS
Dimension	L97.5W53.0H58.0mm
Suitable product	home electrical appliances, communication instruments, air-condition

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
