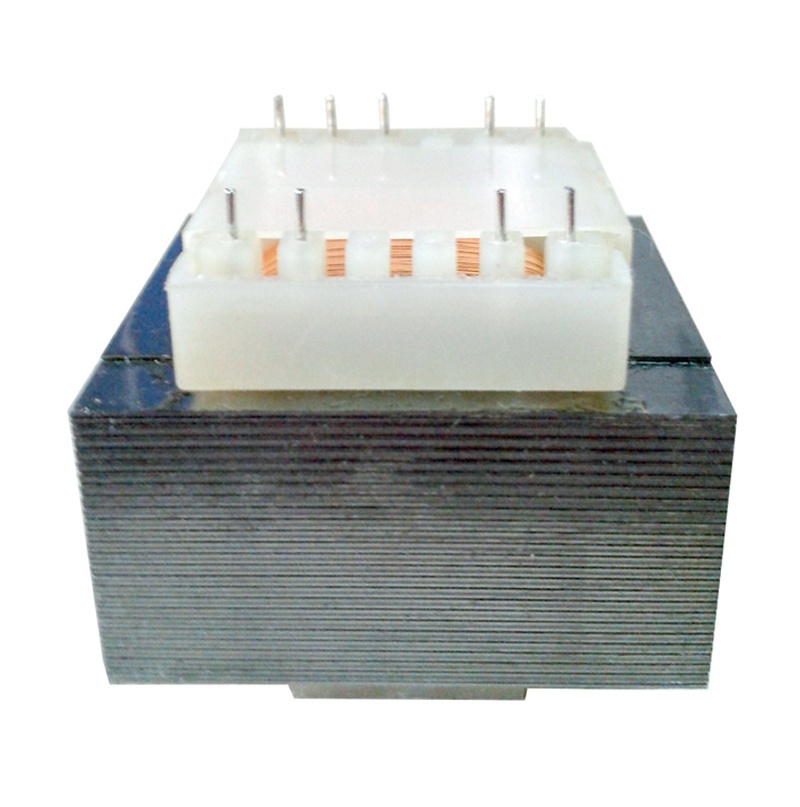

Ei48 Open Frame Transformer for Power Supply (EI48-20 10VA)

Prod Model:	EI48-20 10VA
Phase:	Single
Coil:	Shell-type Transformer
Cooling Method:	Dry-type Transformer

Product Description

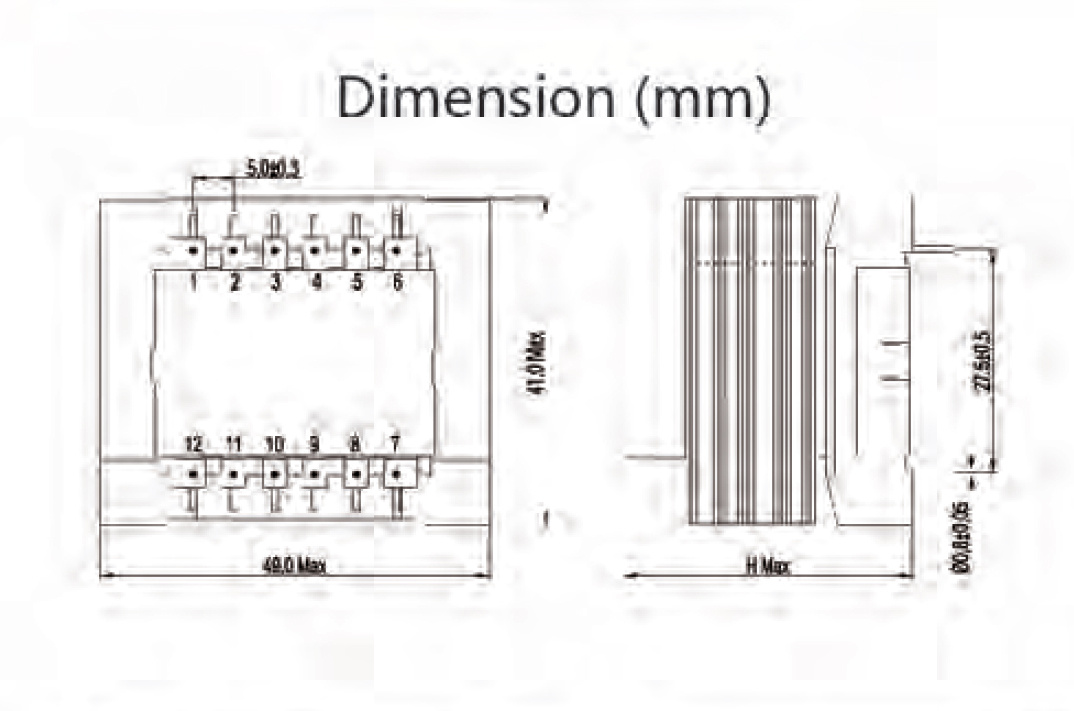

PART NUMBER	STRUCTURE			HEIGHT(H)	WEIGHT
		TA=40ºC	TA=70ºC
RD4820VXX	EI48-20		10VA	40	0.310KG
RD4825VXX	EI48-25		12VA	45	0.370KG



EI48-20 SERIES-10.0VA

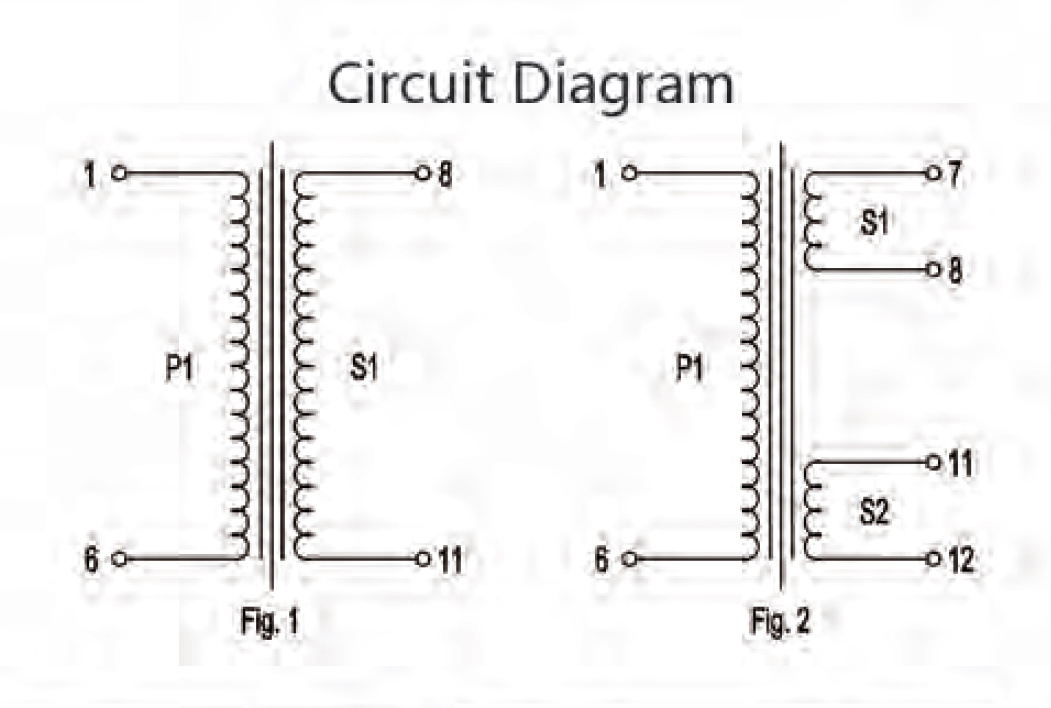

PART NUMBER	OUTPUT VOLTAGE(V)	OUTPUT CURRENT(mA)	CIRCUIT DIAGRAM
INPUT:230V
RD4820V00	4.5	2222	FIG.1
RD4820V01	6	1667	FIG.1
RD4820V02	7.5	1333	FIG.1
RD4820V03	9	1111	FIG.1
RD4820V04	12	833	FIG.1
RD4820V05	15	667	FIG.1
RD4820V06	18	556	FIG.1
RD4820V07	24	417	FIG.1
RD4820V50	2 X 4.5	2 X 1111	FIG.2
RD4820V51	2 X 6	2 X 833	FIG.2
RD4820V52	2 X 7.5	2 X 667	FIG.2
RD4820V53	2 X 9	2 X 556	FIG.2
RD4820V54	2 X 12	2 X 417	FIG.2
RD4820V55	2 X 15	2 X 333	FIG.2
RD4820V56	2 X 18	2 X 278	FIG.2
RD4820V57	2 X 24	2 X 208	FIG.2

Open Frame Transformer EI48 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70 max)
Insulation class-class B(130 )
Custom design available
TECHNICAL INFORMATION:
1. Capacity up to 12.0VA
2. Non short-circuit-proof at temperature class ta 70 /B
3. Excellent temperature fluctuation resistance properties
4. High electrical safety and long service-life features
5. High voltage resistance
6. Certified item quality tested
