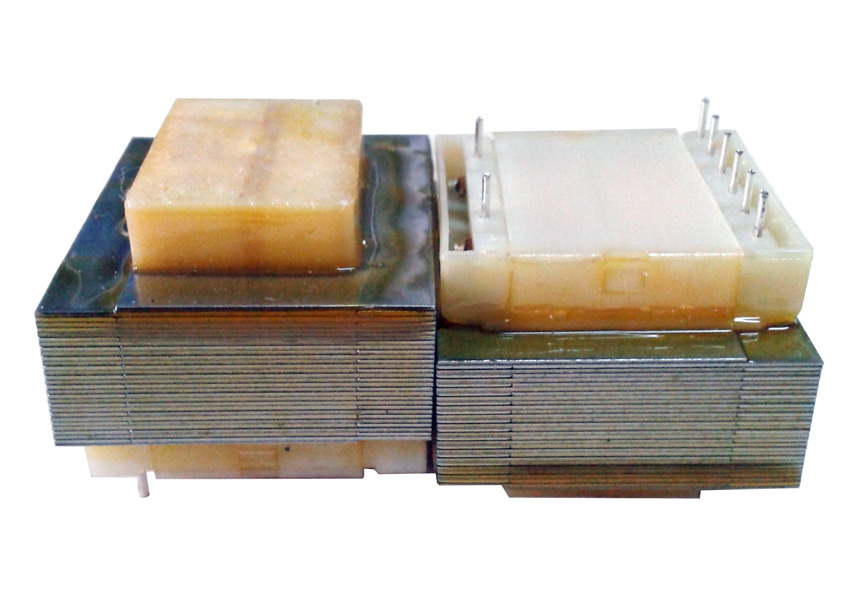

Ei54 Open Frame Transformer for Power Supply (EI54-18 13VA)

Prod Model:	EI54-18 13VA
Application:	Power
Phase:	Single
Coil:	Shell-type Transformer
Cooling Method:	Dry-type Transformer

Product Description

Open Frame Transformer EI54 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70 max)
Insulation class-class B(130 )
Custom design available
TECHNICAL INFORMATION:
1. Capacity up to 13.0VA
2. Non short-circuit-proof at temperature class ta 70 /B
3. Excellent temperature fluctuation resistance properties
4. High electrical safety and long service-life features
5. High voltage resistance
6. Certified item quality tested

EI54
PART NUMBER	STRUCTURE			HEIGHT(H)	WEIGHT
		TA=40ºC	TA=70ºC
RD5418VXX	EI54-18		13VA	39.5	0.390KG

EI54-18 SERIES-13.0VA
PART NUMBER	OUTPUT VOLTAGE(V)	OUTPUT CURRENT(mA)	CIRCUIT DIAGRAM
INPUT:230V
RD5418V00	4.5	2889	FIG.1
RD5418V01	6	2167	FIG.1
RD5418V02	7.5	1733	FIG.1
RD5418V03	9	1444	FIG.1
RD5418V04	12	1083	FIG.1
RD5418V05	15	867	FIG.1
RD5418V06	18	722	FIG.1
RD5418V07	24	542	FIG.1
RD5418V50	2 X 4.5	2 X 1444	FIG.2
RD5418V51	2 X 6	2 X 1083	FIG.2
RD5418V52	2 X 7.5	2 X 867	FIG.2
RD5418V53	2 X 9	2 X 722	FIG.2
RD5418V54	2 X 12	2 X 542	FIG.2
RD5418V55	2 X 15	2 X 433	FIG.2
RD5418V56	2 X 18	2 X 361	FIG.2
RD5418V57	2 X 24	2 X 271	FIG.2
