| Prod Model: |

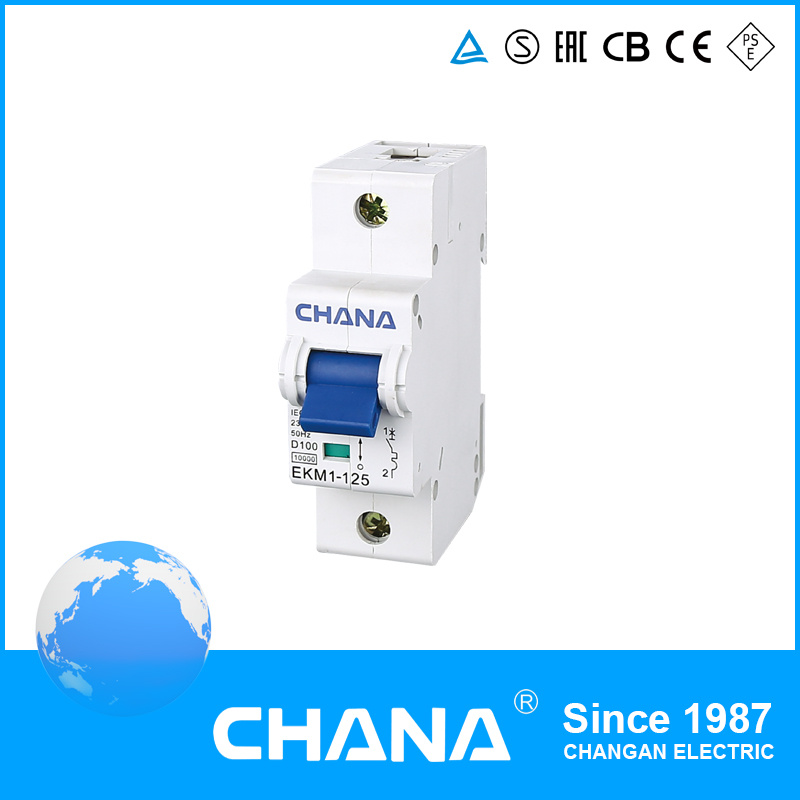

EKM1-125 |
| Frequency: |
AC 50/60 Hz |
| Rated Voltage: |
240/415V |
| Current: |
1-63A |
| Certificate: |
Ce CB RoHS TUV |
| Material: |
IP20 |
| Application: |
Electrical Power |
| Mechanical Life: |
10000 Times |
| Electrical Life: |
4000 Times |
| Export Market: |
Global |
| Quality: |
AAA |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Certification: |
ISO9001-2000 |
| Poles Number: |
1p, 1p+N, 2p, 3p, 3p+N.4p |
Product Description
Thankyou so much for opening this products.
Please feel free to send us your enquiry with MCB deteils,we will recommend our products with best price for you.
1-Current:1,2,3,4,6, 10, 16, 20, 25, 32, 40, 50, 63A
2-Poles:1P, 1P+N, 2P, 3P, 3P+N, 4P
3-Rated breaking capacity:3kA 4.5kA 6kA 10kA
4-B Type(for industial) C Type (for home) D Type
What kinds of specification do you require,please feel free to contact us with an enquiry at your convenience.
Product Description
Product Description of 10KA MCB
MCB Electrical Features
Rated current In :63,80,100,125A
Poles: 1P,1P+N,2P,3P,3P+N,4P
Rated voltage Ue:240/415V
Insulation voltage Ui :500V
Rated frequency:50/60Hz
Rated breaking capacity :10000A
Energy limiting class:3
Rated impulse withstand voltage(1.2/50) Uimp:4,000V
Dielectric test voltage at ind. Freq. for 1 min:2kV
Pollution degree:2
Thermo-magnetic release characteristic: C,D
Mechanical Features of 10KA MCB
MCB Electrical life:4, 000
MCB Mechanical life: 10, 000
Contact position indicator: Yes
mini circuit breaker MCB Protection degree: IP20
Reference temperature for setting of thermal element: 30º C
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C
Installation of 10KA MCB
Terminal connection type: Pin-type busbar
Terminal size top/bottom for cable: 35mm2
Terminal size top/bottom for busbar: 35mm2
Tightening torque 2.5 N*m
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom
Combination with accessories of 10KA MCB
MCB Auxiliary contact: Yes
Shunt release: Yes
Under voltage release: Yes
MCB Alarm contact: Yes
After-sale Service
1. Quick reply on customers' questions;
2. If anything goes wrong with the products'quality, we will replace for you free
Quality Control
1,All LED lamps have been tested and lighting for 24 hours to test quality reliability and other parameters.
2,Each lamp must pass all the QC procedures before goods delivery from factory.
Our Services
1. For all your inquires about us or our products, we will reply you in 24 hours;
3. OEM is available, our factory can customized your products and your LOGO printed package
Company Information
Our company is based on a electrics factory group which was established in the year of 1987,has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in China mainland.
Comprising more than 62 factories, the group has more than 2500 employees and occupies 100,000 square meterworkshop during past 19 years
Now,we produce and export more than 5000 kinds of low voltage electrical applicances including all kinds of MINIATURE CIRCUIT BREAKER,MOULDED CASE CIRCUIT BREAKER,ELECTRICAL DISTRIBUTION BOX,CONTACTORS,RELAYS,FUSES,SWITCHED & METERS.
And most of our low-voltage electrical products passed certificates done by world-wide organizations, such as SEMKO,CB,KEMA,CE, RoHS, UL and ISO9001,these could prove the plentiful outcome. At the same time, our products have been chosen as "CHINESE FAMOUS BRAND PRODUCT"
Enquiry from both domestic and overseas customers are cordially welcome. Please feel free to tell us your requirements and let us do the best for you all the time.
FAQ
Q1. Can I have a sample order for electric products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for electric products order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for electric products?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on electric products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our battery charger products.
Q8: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
