| Prod Model: |
EKL3-40 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Triping Type: |
Thermal |
| Number Of Pole: |
2 |
| Frequency: |
50 |
| Energy Saving: |
3 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Poles Number: |
2 |
| Certification: |
CCC |
| Installation: |
DIN-Rail |
| Structure: |
RCBO |
Product Description

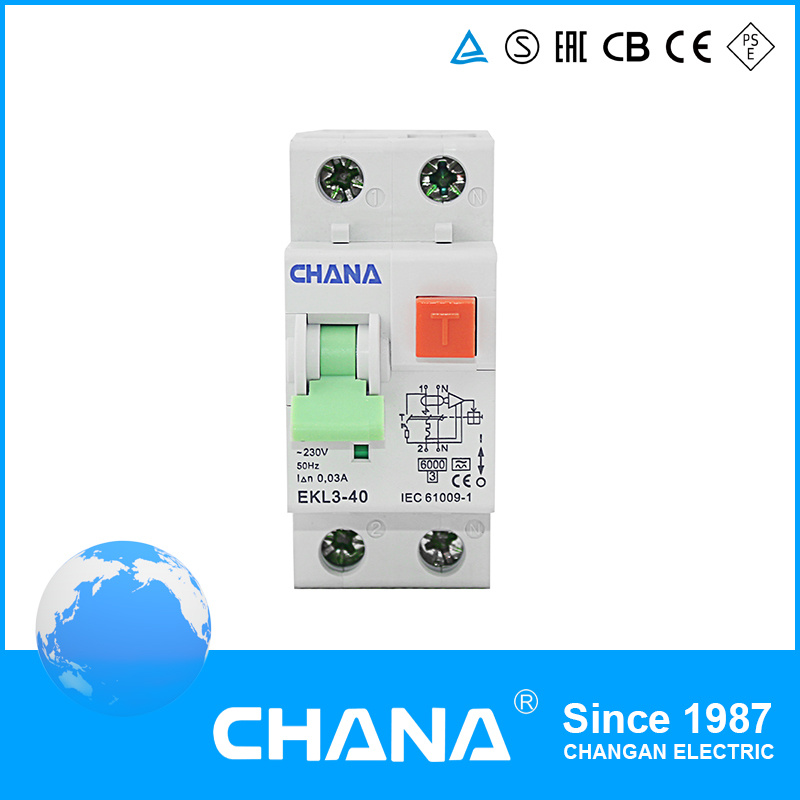

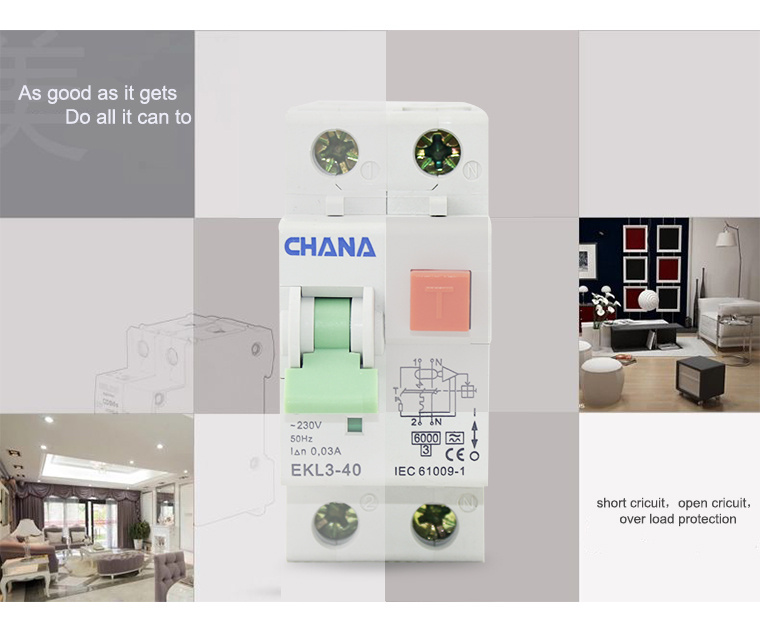

IEC61009-1 Standard Electronic type Leakage Circuit Brealer RCBO with CE Certificated
Free samples can be provided!!!
| Standard | IEC61009-1 |
| Electrical Feature |
| Type(wave form of the earth leakage sensed) | | AC, A |
| Thermo-magnetic release characteristic | | B,C |
| Rated current In | A | 6,10,16,20,25,32,40 |
| Poles | P | 1+N |
| Rated voltage Ue | V | 230/240 |
| Rated sensitivity | A | 0.01,0.03,0.1,0.3 |
| Insulation voltage Ui | V | 300 |
| Rated residual making and breaking capacity | A | 500 |
| Short-circuit current Inc | A | 4500/6000 |
| Break time under | S | ≤0.1 |
| Rated frequency | Hz | 50/60 |
| Rated impulse withstand voltage(1.2/50) Uimp | V | 4000 |
| Dielectric test voltage at ind. Freq. For 1 min | V | 2000 |
| Pollution degree | | 2 |
| Mechanical Feature |
| Electrical life | | 2000 |
| Mechanical life | | 2000 |
| Contact position indicator | | Yes |
| Protection degree | | IP20 |
| Ambient temperature (with daily average≤ 35º C) | º C | -5...+40 |
| Storage temperation | º C | -25...+70 |
| Installation |
| Terminal connection type | Cable/U-type busbar/Pin-type busbar |
| Terminal size top/bottom for cable | 16mm2 18-5AWG |
| Terminal size top/bottom for busbar | 16mm2 18-5AWG |
| Tightening torque | 2.0 N*m 11 In-Ibs |
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device |
| Connection | From top and bottom |
