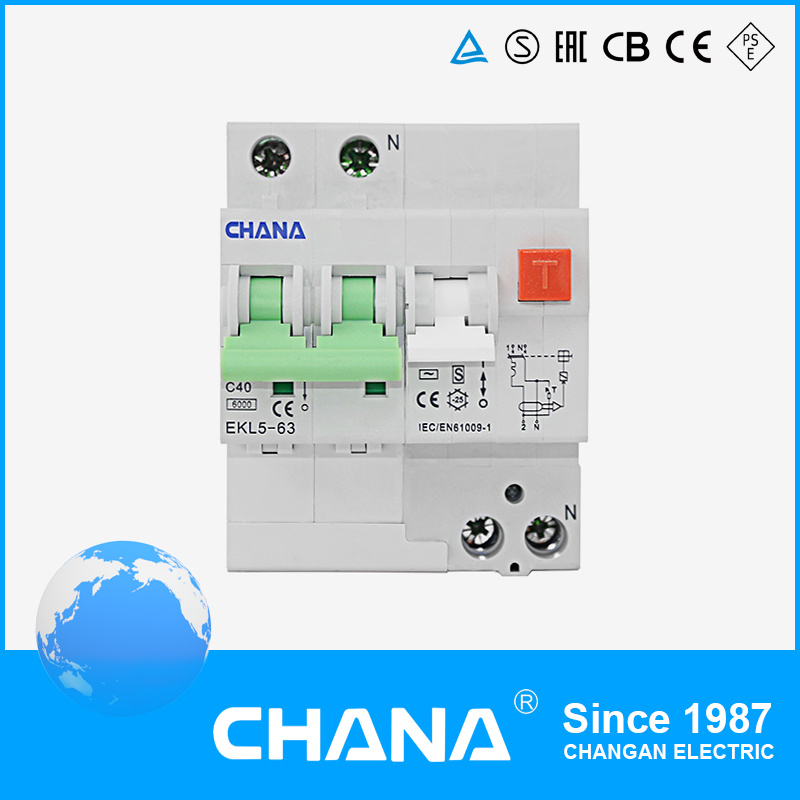

EKL5-63 4P Electronic Type RCBO (RCCB With Overcurrent Protection)

Prod Model:	EKL5-63
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current In:	6, 10, 16, 20, 25, 32, 40, 50, 63A
Rated Sensitivity In:	0.03, 0.1, 0.3A
Company Credit Rate:	AAA
Company Size:	Over 2000 Stuff
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Certification:	CCC
Installation:	DIN Rail
Structure:	RCBO
Poles Number:	2p(1p+N),4p(3p+N)
Function:	Avoid The Shock Hazard and Fire Caused by Earth L

Product Description

Free samples can be provided!!!
Product Description

Electrical Features
Type (wave form of the earth leakage sensed): AC, A
Thermo-magnetic release characteristic: B, C
Rated current In MCB+add-on RCD block: 6, 10, 16, 20, 25, 32, 40, 50, 63A
Poles: 2P(1P+N), 4P (3P+N)
Rated voltage Ue: 240/415V
Rated sensitivity In MCB+add-on RCD block: 0.03, 0.1, 0.3A
Rated residual making and breaking capacity Im: 500A(In≤ 40A) 630(In>40A)
Rated short-circuit capacity lcn: 4, 500/6, 000A
Break time under In: ≤ 0.1s
Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4000V
Dielectric TEST voltage at ind. Freq. For 1min: 2kV
Insulation voltage Ui: 500V
Pollution degree: 2

Mechanical Features
Contact position indicator: Yes
Protection degree: IP20
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C ..

Installation
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 25mm2 18-3AWG
Terminal size top/bottom for busbar: 25mm2 18-3AWG
Tightening torque 2 N*m 18In-Ibs.
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom (for combined type)
From top (MCB+add-on RCD block).

About US:
Changan Group Co.,Ltd was established at years of 1987,which is leading of industrial electric appliances,integrating the research&development,manufacture,trade,information service functions together. At present,group have passed ISO9001,ISO14001,OHASA18001 and acquired 3C certification for all products,all of our export product are strictly production according to ISO9001 and IEC standard,some product had got CE,CB,SMEKO,KEMA certification.The company has owned 10 son companies,50 sales branch,3000 employees ,areas of 0.4 million square meters,registered capital reached 26 million,yearly out put value reached 346 million.The company has the honor to be titled as "China star enterprise","China top 500 private enterprise","China top 500 in machinery industry","China top 10 of LV electric appliance"

Shipping:
1,Shipping can delivery by sea,air,or express according to customer requirement
Payment:
1. Small order under 3000USD T/T100% in advance
2. 30% deposit and 70% before shipping or after received copy of B/L
3. L/C also acceptable

Warranty:
1.We provide 1.5 year warranty.
2. Compensation will be paid if product had badly quality problem.
