Ekmf Modular Contactor 400V 24A

Prod Model:	EKMF Modular Contactor
Markets:	Eastern Europe,Southeast Asia,Africa,Mid East,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	2
Certification:	CCC
Structure:	RCCB

Product Description

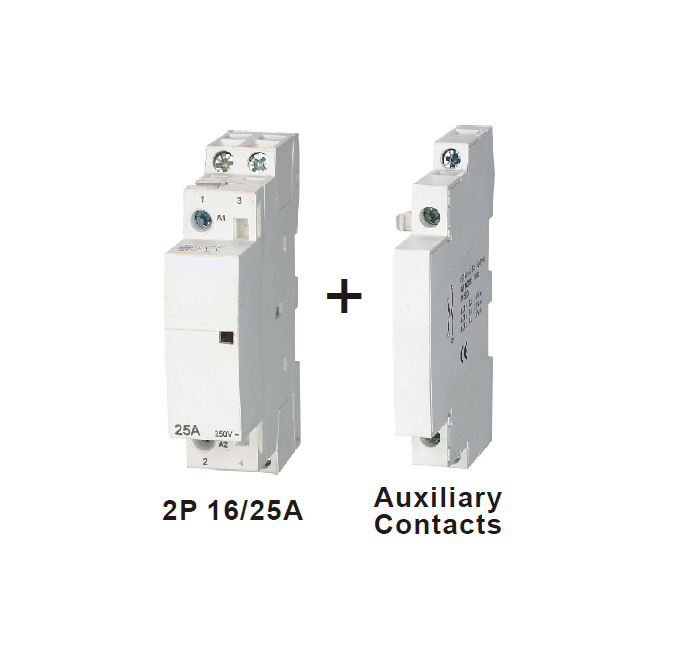

EKMF Modular Contactor
Technical Data
Application
EKMF modular contactor is applicable to alternative circuit with rated
Voltage up to 400V, rated current up to 24A and rated frequency 50/60Hz
The product Circuit
Construction and Feature
Compact and modular design
Electro-magnetic mechanism free of noise
Contact position indication
Big contact capacity and long endurance
Technical Data
Power circuit
Rated current 16 25 40 63A
Rated voltage
230V 2pole
400V 4pole
Rated frequency 50 60Hz
Remote control circuit(coil)
Control voltage 24V, 220V-240V
Rated frequency 50 60Hz
Mechanical endurance 100, 000 cycles
Electrical endurance 30, 000 cycles
Ambient temperatu re -5 -+60
Connection terminal pillar terminal with clamp
Lnstallation
On symmetrical din rail
Panel mounting
Contact form
2P: 2NO, 2NC, 1NO+1NC
4P: 4NO, 4NC, 3NO+1NC, 2NO+2NC
