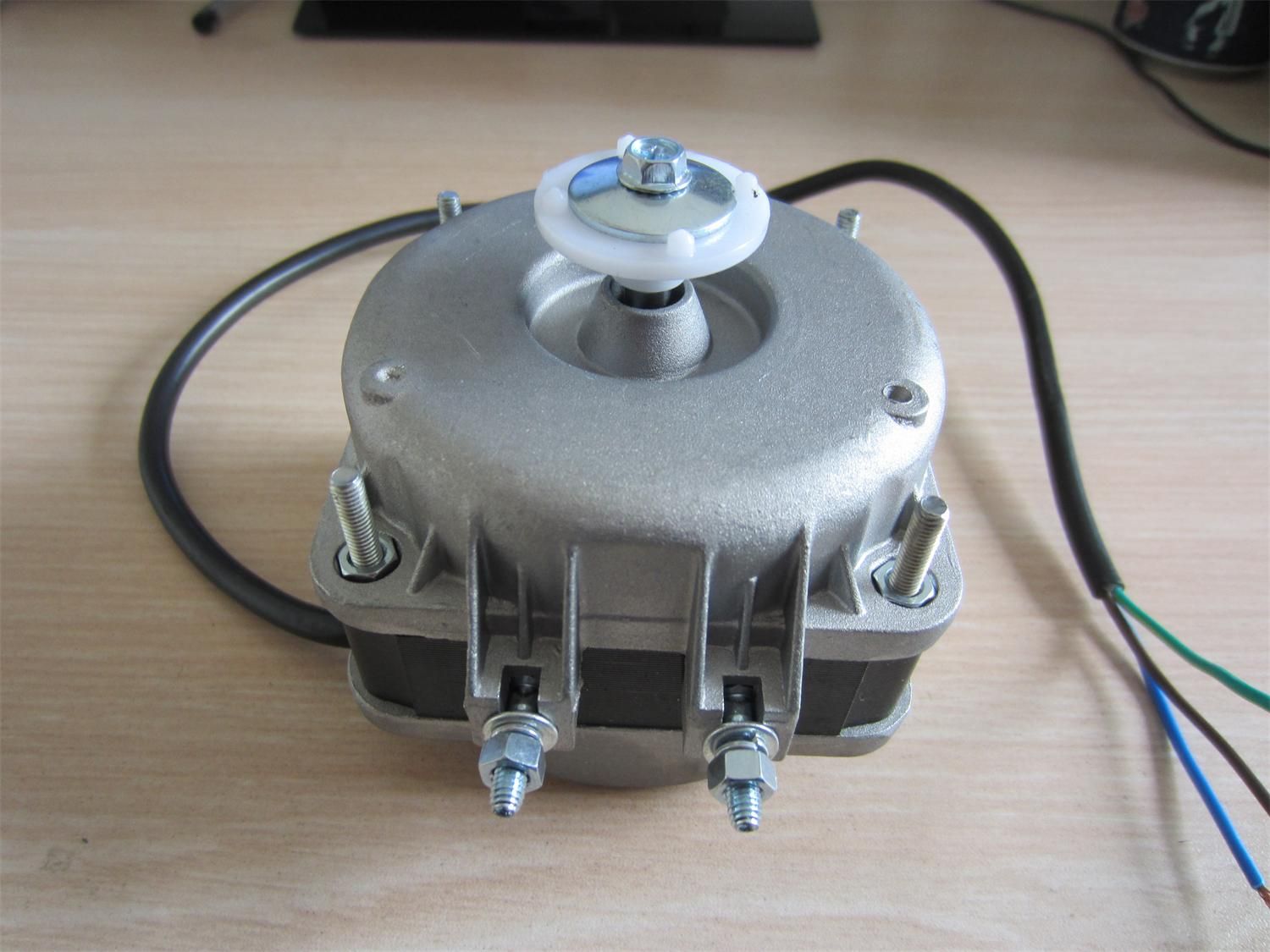

Elco Type Shaded Pole Motor, Freezer Fan Motor

Name: Elco Type Shaded Pole Motor, Freezer Fan Motor
Brand: all-electronics-online.com
SKU: 661826322
Availability: InStock
Rating: 4.4 (57 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YZ10-20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Accessories:	Fan Blade and Bracket
Fan Cover:	Different Kinds
Rotation:	Cw/Ccw
Market:	Global
Coil:	Pure Copper Coils or Copper Coated Aluminum Coils
Application:	Household Appliances
Operating Speed:	Constant Speed
Number Of Stator:	Single-Phase
Species:	Explosion-Proof Three-Phase
Rotor Structure:	Winding Type
Casing Protection:	Explosion-Proof Type
Starting Mode:	y-δ Starting
Number Of Poles:	1 and 3
Certification:	CE,UL,CCC,VDE
Brand:	Retekool

Product Description

1) 4 shaded poles, single phase, alternating current.

2)output power: 5W, 6W, 7W, 10W, 12W, 16W, 18W, 25W, 34W

3)Running at rated voltage of 220-240V, 50/60HZ or 110-120V, 60HZ

4) Insulation class of motors is B with the protection class IP42.

IP44 is available.

6) Applicable ambient temperature is -30degree to 50 degree

7) Average service life is over 20000 hours

8) UL, CE, VDE, UL& CCC Approval

9)Accessories need or not are up to you.

If you are interested in our fan motor, pls give us your detailed specifications.

For any questions, pls feel free to contact us. We will do our best to serve you.

Model	Volt	Frequency	Input Power	Out Power	Current	Speed	A	B	C	D	E
	V	Hz	W	W	A	R. P. M	mm	mm	mm	mm	mm
YJF3	220/240	50/60	20	3	0.16	1300/1550	81	14	46	30	-
YJF3	110/115	50/60	20	3	0.32	1300/1550					-
YJF5	220/240	50/60	30	5	0.20	1300/1550					-
YJF5	110/115	50/60	30	5	0.40	1300/1550					-
YJF7-	220/240	50/60	38	7	0.27	1300/1550	91	17	49	33	-
YJF7-	110/115	50/60	38	7	0.54	1300/1550					-
YJF10	220/240	50/60	42	10	0.30	1300/1550					-
YJF10	110/115	50/60	42	10	0.60	1300/1550					-
YJF16	220/240	50/60	58	16	0.40	1300/1550	102	18	50	34	-
YJF16	110/115	50/60	58	16	0.80	1300/1550					-
YJF18	220/240	50/60	64	18	0.43	1300/1550					20
YJF18	110/115	50/60	64	18	0.86	1300/1550
YJF20	220/240	50/60	65	20	0.47	1300/1550
YJF20	110/115	50/60	65	20	0.94	1300/1550
YJF25	220/240	50/60	100	25	0.70	1300/1550	112	18			30
YJF25	110/115	50/60	100	25	1.40	1300/1550	112				30
YJF34	220/240	50/60	120	34	0.90	1300/1550	117				35

Jinan Retek Industries Inc. is a professional supplier in China, specializing in refrigeration parts. Our main products are refrigerator parts. Now we have two factories in China, manufacturing different kinds of refrigeration parts. One is mainly manufacturing condensers and evaporators. The other one is mainly manufacturing copper filter driers, accumulators and access valves.

With the idea of "Best Products, Best Price and Best Services", our company spares no efforts to achieve the target of "Being the best one, not better one". We concentrate on our products, and hope to provide our customers with best quality products at best price. We know we are young, and we are able to make great progress in future. We have great confidence in our products.

Now we sell our products mainly to refrigerator, freezer and water cooler factories in more than 15 countries and areas, including China, Pakistan, Italy, the USA and Russia. We also welcome customers all over the world to visit our company and set up business relationship for further development.
