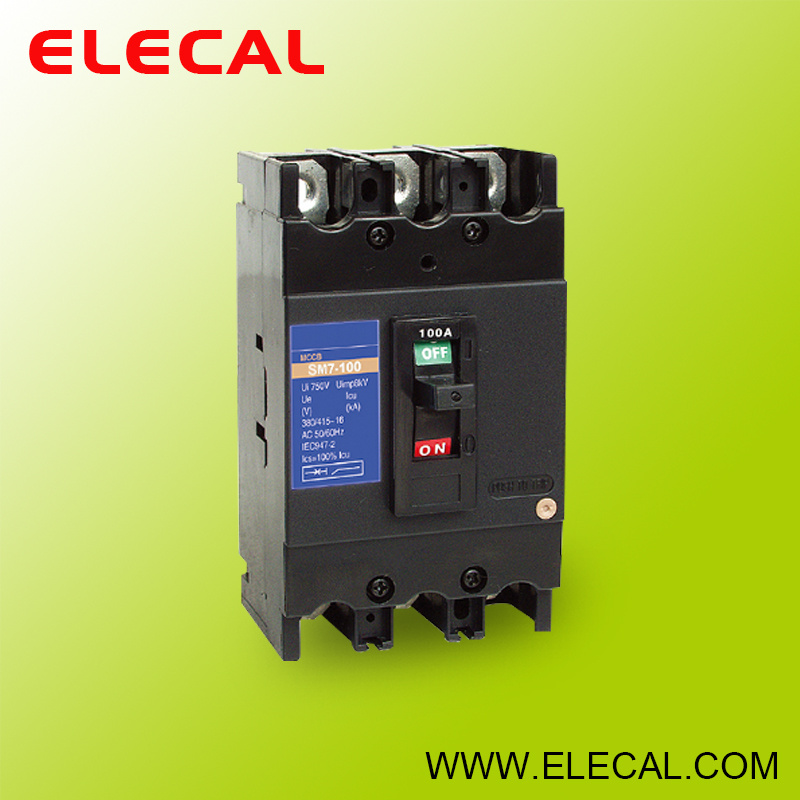

Elecal Moulded Case Circuit Breaker

Name: Elecal Moulded Case Circuit Breaker
Brand: all-electronics-online.com
SKU: 764703925
Availability: InStock
Rating: 4.9 (150 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Sm7
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black,White
Quality:	High Breaking
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	4
Certification:	CCC
Structure:	Moulded Case Circuit Breaker

Product Description

1.Application
SM7 series MCCB is applicable circuit of AC 50Hz, rated insulation voltage 660V, ratedoperating current 15-225A, for distribute energy of electricity and infrequent making & breakingcircuit in normal conditions. The products conforms to IEC60947-2 standard.
2.Specification

Type		SM7-100	SM7-225
Poles number		3	3
Rated current In(A)		15~100	100~225
Rated operating voltage Ue(V)		AC 600V DC 250V	AC 660V
Rated insulation voltage Ui~(V)		AC 690V	AC 690V
Utilisation category		A	A
Rated ultimate short-circuit breaking capacityIcu(KA)	AC 500V	2	5
	AC 440V	5	7.5
	AC 415V	5	7.5
	AC 380V	5	7.5
	AC 240V	7.5	15
Rated short-circuit servicebreaking capacityIcs(KA)	AC 500V	1	2.5
	AC 440V	2.5	3.8
	AC 415V	2.5	3.8
	AC 380V	2.5	3.8
	AC 240V	3.8	7.5

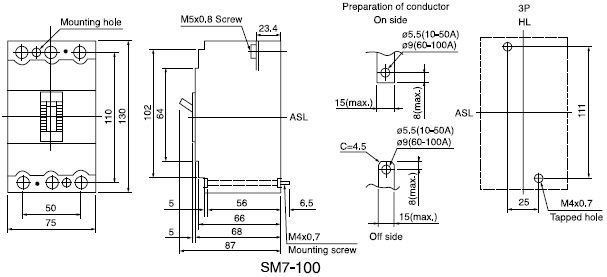

3.Outline and Installation Dimension

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word
