| Prod Model: |
SLT50BYJ |
| Step Angel Accuracy: |
+/-10% |
| Resistance Accuracy: |
+/-10% |
| Inductance Accuracy: |
+/-20% |
| Temperature Rise: |
60oc. (Rated Current,2 Phase on) |
| Ambient Temperature: |
-40oc-+50oc |
| Insulation Resistance: |
100mΩ Min.,500VDC |
| Dielectric Strength: |
600VAC,1s,1mA |
| Shaft Radial Play: |
0.1mmmax (300g-Load) |
| Shaft Axial Play: |
0.55mmmax (300g-Load) |
| Name: |

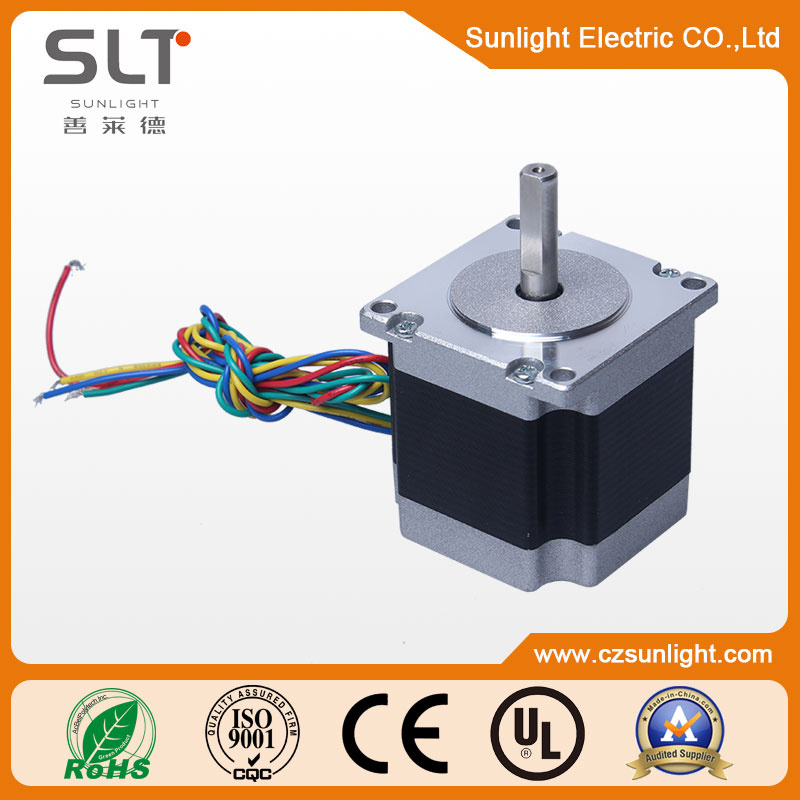

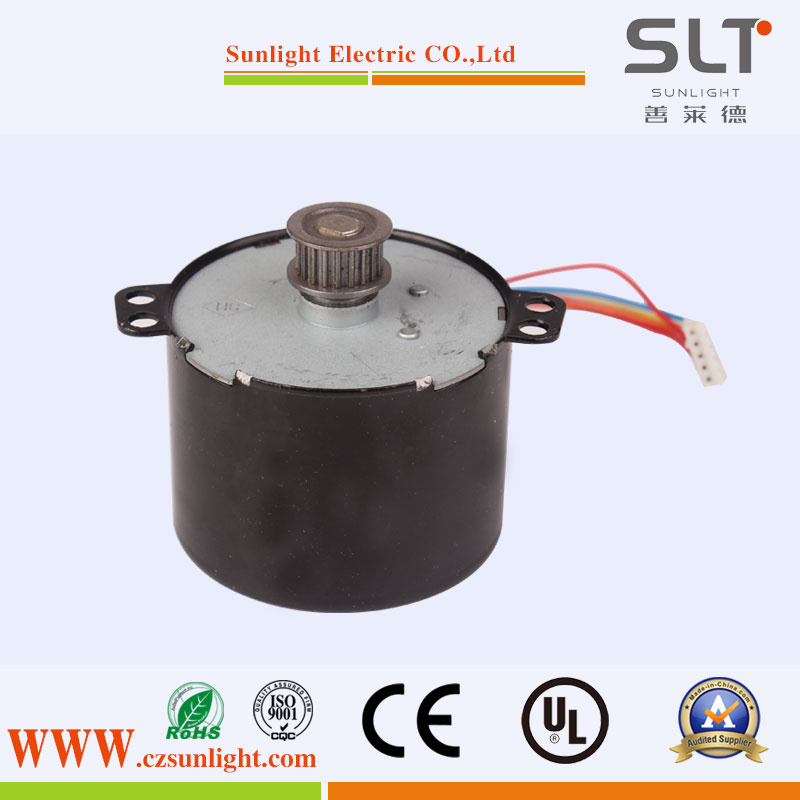

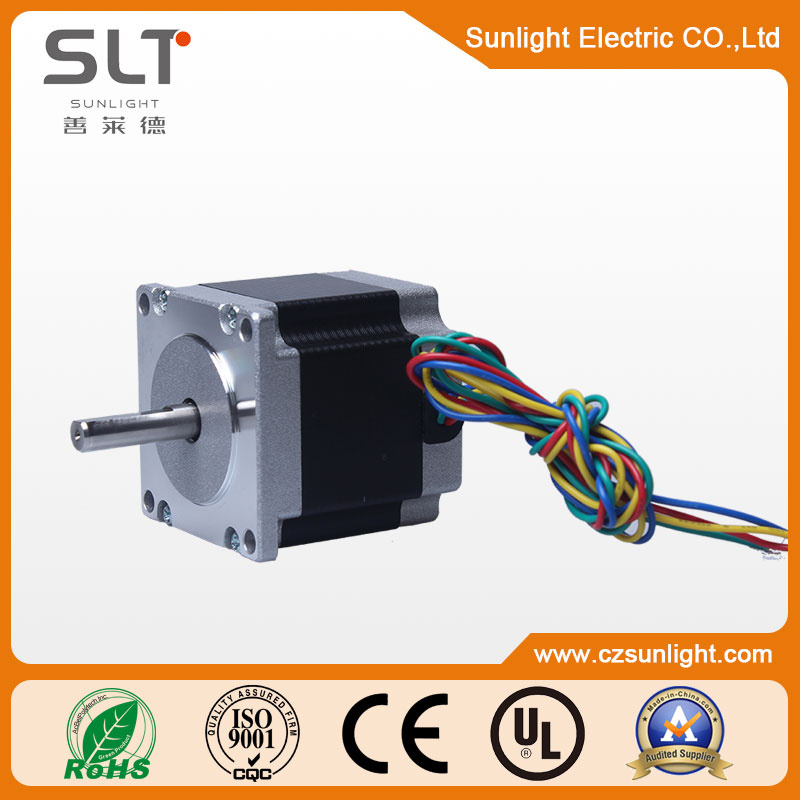

Electric 12V High Torque Stepper Motor |
| Number Of Stator: |
Three-Phase |
| Excitation Mode: |
HB-Hybrid |
| Operate Mode: |
The Three Single Phase |
| Type: |
Magnetic-Electric |
| Brand: |
Slt |
Product Description
Product DescriptionModel: SLT50BYJVoltage: 12V
Resistor: 30Ω
Step Angel Accuracy: +/-10%
Inductance Accuracy: +/-10%
Temperature Rise: +/-20%
The specification of Electric 12V high torque stepper motor | Item | Specification |
| Step Angle Accuracy | ±10% (full step,no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 60ºC. (rated current,2 phase on) |
| Ambient Temperature | -40ºC~+50ºC |
| Insulation Resistance | 100MΩMin.,500VDC |
| Dielectric Strength | 600VAC,1s,1mA |
| Shaft Radial Play | 0.1mmMax (300g-load) |
| Shaft Axial Play | 0.55mmMax (300g-load) |
| Model NO. | Rated voltage | No. of phase | Resistance Phase | Step Angle | Starting Frequency | Pull Torque (300P.P.S)(Kg.cm) |
| V DC | Ω | (DEG) | (pps) | Rating Ratio i |
| 33 | 25 | 15.6 | 8.3 |
| 50BYJ26-30 | 12 | 2 | 30 | 7.5/i | ≥450 | 2.5 | 2 | 1.2 | 0.6 |
| 50BYJ46-30 | 12 | 4 | 30 | 7.5/i | ≥350 | 1.8 | 1.3 | 0.8 | 0.4 |
| 50BYJ12-30 | 12 | 2 | 30 | 3.75/i | ≥500 | 4.5 | 3.2 | 2.2 | 1.2 |
| 50BYJ12-30 | 12 | 4 | 30 | 3.75/i | ≥400 | 3.8 | 2.5 | 1.8 | 1 |
