Electric 3p 4p Manual Change Over Switch with Box 16A~630A
| Price: |
US $ 40-145/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
JGLZBX |
| Name: |
Manual Change Over Switch with Box |
| Change Over Switch Rated Current: |
From 16A ~630A |
| Pole: |
3pole, 4pole |
| Operate: |
by Handle, Manual Operation |
| Metal Box Material: |
Cold Rolled Steel |
| Metal Box Color: |
Ral7032 Grey |
| Metal Box Protection: |
IP66 |
| Metal Box Accessories: |
Bottom Plate Optional, with Screws, with Handle |
| Packing: |
Carton Box |
| Certificates: |
Company SGS, ISO9001, Ce, CCC |
Product Description
Electric 3P 4P Manual change over switch with Box 16A~630AApplication:JGL Series load isolation switch mainly suitable for AC 50Hz, rated voltage to 660V, DC rated voltage up to 440V, rated current up to 3150A. The switch is used in infrequent making and breaking circuits.
It widely used in the distribution system and automatic system of architecture, electrical power, petrochemical, and other industries. Following International IEC60947-1, IEC60947-3 standards.Manual change over switch Features: | 1. Nice looking, and small sizes. It possesses flexible structure of modularized design. The shell made by unsaturated polyester resin reinforced by glassfiber. It has very high dielectric performance, protective capability, and reliable operation. 2. The plastic-accumulating accelerating mechanism for instant release realizes the rapid making and breaking (13.8m/s), have no relationship with the speed of operation handle, and increasing greatly the capability of extinguish electric etc. 3. Many kinds of structures and operations in which the on and off state of contact is observed through windows.
4. Parallel double gap contact possess self cleaning functions 5. All the contact material are copper alloy plated with silver, and possess two separation contact surfaces 6. Large isolating distance 7. When on "0", can be locked by three locks at same tie, to avoid error operation. |
Manual change over switch with Box Sizes| Rated current | 3Pole | 4Pole | Box sizes(cm) |
| 32A | yes | yes | 38*29*25 |
| 40A | yes | yes | 38*29*25 |
| 63A | yes | yes | 38*29*25 |
| 80A | yes | yes | 38*29*25 |
| 100A | yes | yes | 38*29*25 |
| 125A | yes | yes | 38*29*25 |
| 160A | yes | yes | 38*29*25 |
| 200A | yes | yes | 43*29*27 |
| 250A | yes | yes | 43*29*27 |
| 300A | yes | yes | 50*40*33 |
| 400A | yes | yes | 50*40*33 |
| 450A | yes | yes | 50*40*33 |
| 500A | yes | yes | 50*40*33 |
| 630A | yes | yes | 50*40*33 |

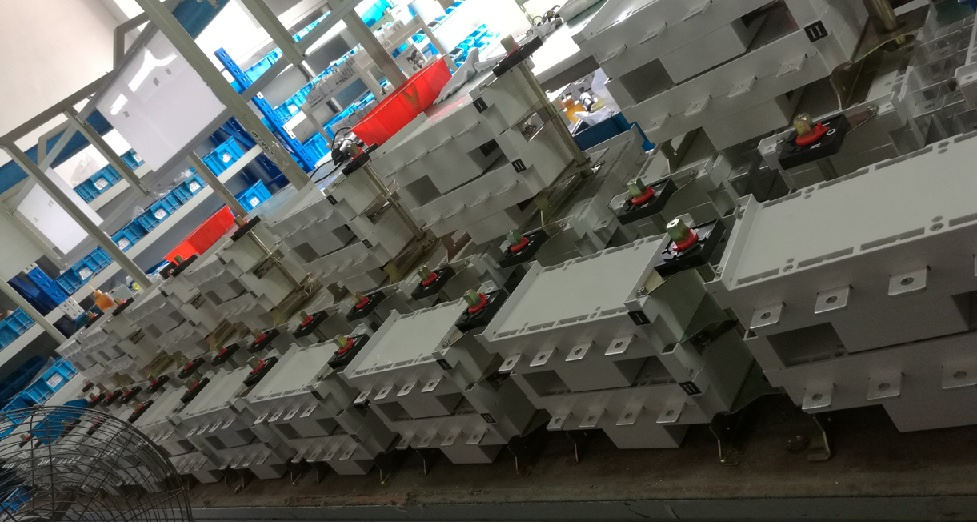

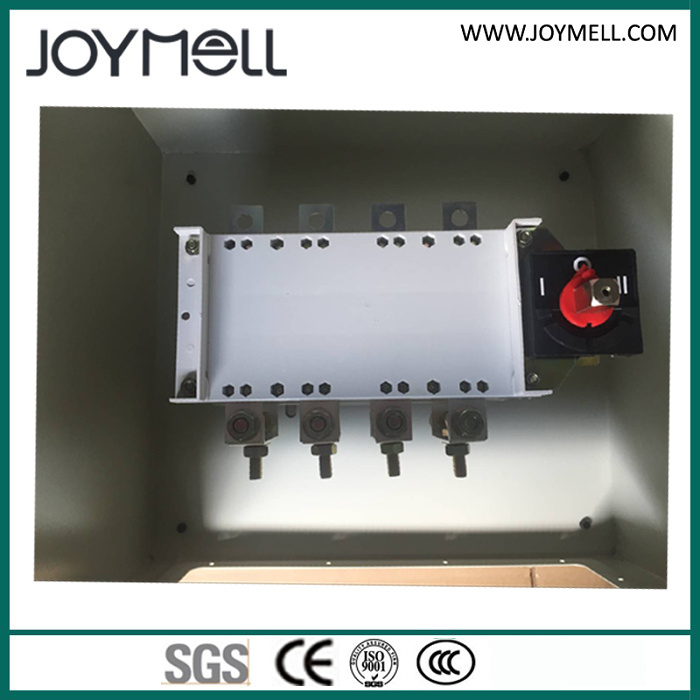

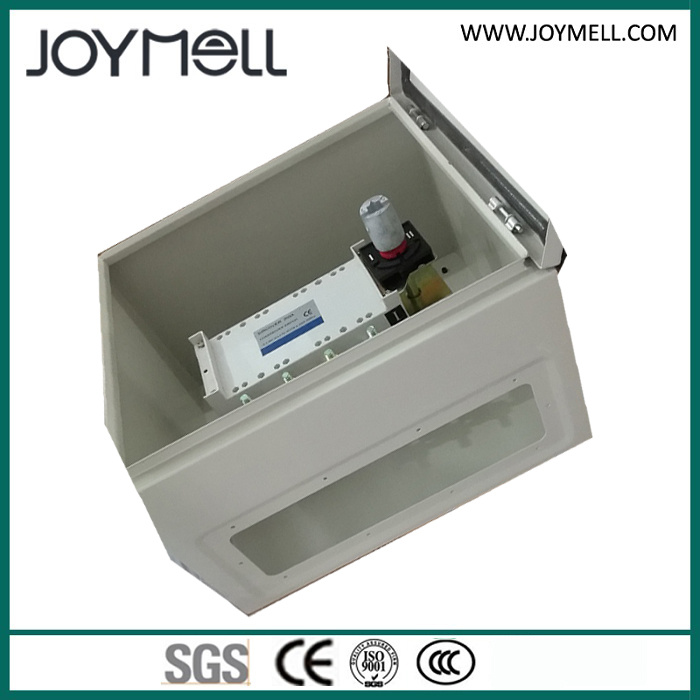

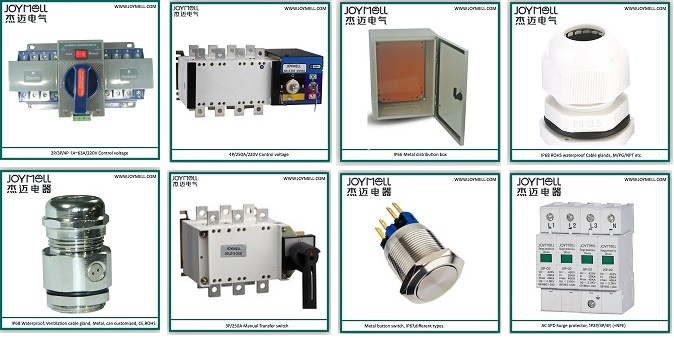

Photoes:Other products:| Manual transfer switch | 1A~1600A, 3P/4P. |
| Automatic Transfer switch | 1A~3200A, 2P/3P/4P. |
| Metal power distribution box | Metal box, size can color can be customized. |
| Plstic box | Different ways, competitive price, welcome to contact |
| Surge protector | B,C,D Class, AC, DC type you can choose. Different types and
discharge current you choose. |
| Power supply | Hot used in Gepenerator system, 120W 12/24V. And other types |
| Current transformer | Different size you can choose, quality guarantee,
hot used in Generator cabinets. |
| Push button | Metal or plastic, different types for power cabinet. |
 |
Q&A:1) Q:Your company ? And products?
A: Joymell is factory for Transfer Switch, Enclosure, Cable glands, Power supply, Current transformer etc. Providing customers very competitive sources, and can be your sourcing agent in China.
Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
Our Customers mainly in Europe, Australia, Africa, Asia, etc. Many countries.
2) How to order ?
A: Pls tell us what's type you need ? Manual transfer rated current, poles? Other special requirement?
3) Q: About shipment and incoterm?
A: Small packages suggest by Express, others by air or by sea. We have good forwarder/Express agent can handle. Also can use your forwarder.
We can accept EXW, FOB, CNF, etc.
4) What's about MOQ? Delivery time ?
A: Without stock, as some customized per customer's special requirement. Normally takes 5-10days.
5) What's the payment term?
A: Normally 100% T/T in advanced payment. If big order then about 30%~50% advanced payment, balance before shipment.
6) What's the after sales service?
A: Warranty is 2years, if our quality problem, will change new ones to you.
7) What's your contact information ?
phone:+86 18106790103. Address: Baixiang town, Yueqing city, Zhejiang province. Welcome to contact us anytime.
Joymell Electric Co., Ltd, with brand Joymell, specialized in Manufaturing and International sourcing service.
Main products including Automatic Transfer switch, Manual transfer switch, Generator Enclosure box, Power supply, Current transformer, Surge protector, Circuit breaker, Cable glands, etc, are following international standards CE IEC, TUV, ISO9001 etc.
We have hundreds of brother companies providing good sources, can be your sourcing agent in China to save cost and a whole series service.
Joymell with experienced Quality management engineers and system, to make sure the products we produced and sourced are with high quality to support customers.
Joymell is a company full of love, we believe enjoy work enjoy life. To provide employees best working conditions, and best treatments. training and learning opportunities to make employees improve themselves.
Joymell also attends some social acitivities, to help old and orphan etc. To take as much social responsibility as can.
Our target is to provide customers as much profit as can, and first-time service. To make employees enjoy work enjoy life.
Welcome to contact Joymell.
