Xiamen Universal Electronic Co., Ltd. >> Electric AC Automatic Door Motor

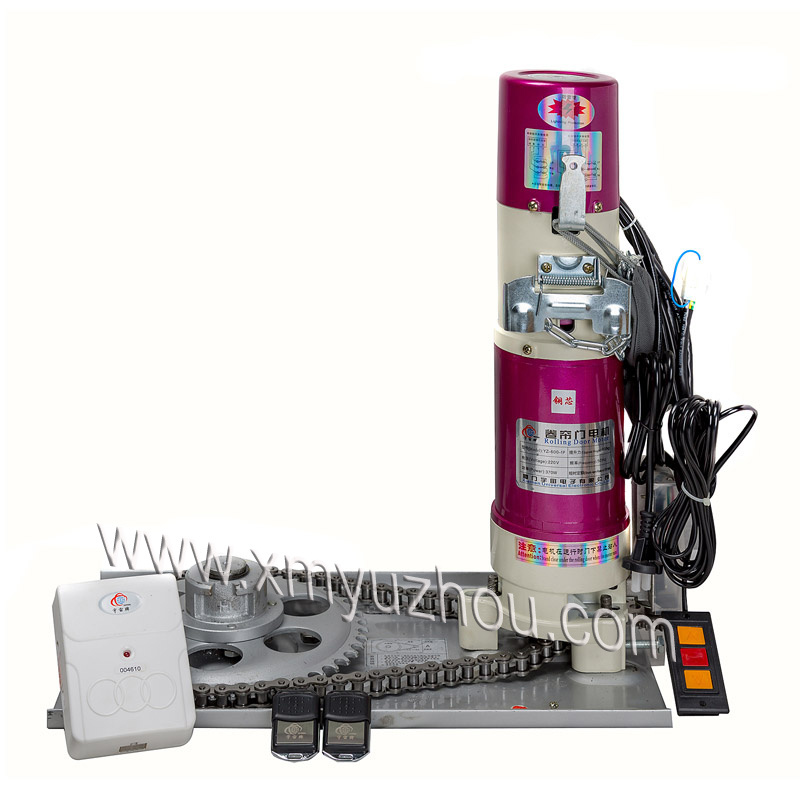

Electric AC Automatic Door Motor

Electric AC Automatic Door Motor
Price: US $ 100/Set
Trade Terms: FOB
Min Order: 10/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: YZ-600KG-1P
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
The Theory: Roller Shutter Motor
Upgrade Weight: 600kg
Upgrade Height: 6m
Voltage: 220V/380V
Rated Power: 370W
Weight Of Motor: 12kg
Cartons: Two Cartons: Motor and Accessory
Carton Size Of Motor: 555mm*255mm*194mm
Carton Size Of Accessory: 510mm*297mm*110mm
Warranty: 2 Years
Number Of Stator: Single-Phase
Function: Control
Brand: Universal

Product Description

Product Name: Automatic Door Motor

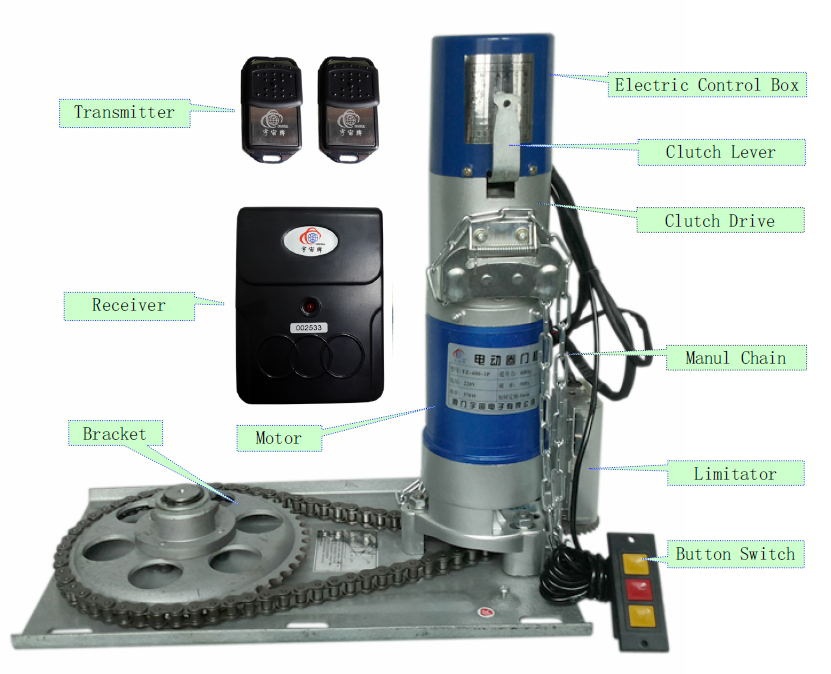

1.The Main Structure of Electric Shutter Motor :








2. AC Roller Shutter Motor Specification

3.FAQ:



Q1: What's your Product Range?



1) AC Motor 1 Phase (220V 50Hz)

2) AC Motor 3 Phase (380V 50Hz)

3)  AC&DC Motor (24VDC 50Hz)



Q2: What's the material of Motor Winding?



-The main material is 100% Copper Wire, and the Aluminum Wire is for optional.



Q3: Is the contactor or relay in the control panel of motor?



-Relay, usually there are 4 relays in the control panel of the motor.



Q4: How many days will samples be finished? And how about the mass production?



-Generally, within one week for samples making.

-The lead time of mass production will depend on quantity. normally,We finish within 20 days.



Q5: What information should I let you know if I want to get a quotation?



-The Width ,Height and Weight of the Shutter/Door

-The Voltage(220VAC,380VAC or 24VDC)

-The Quantity

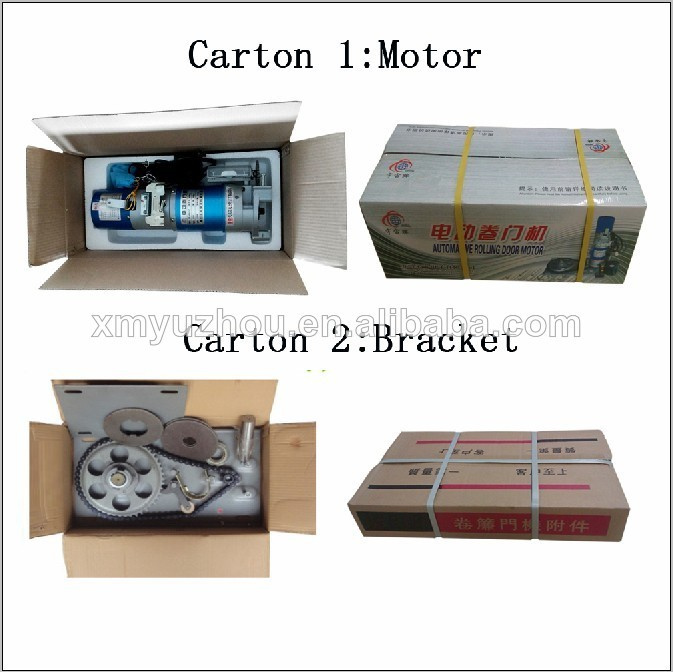

4.Packing Information



Packing Details of Garage Door Opener:



There are 2 ctns per set. One for motor. and another for accessory. (For remote control set, it is packed in another ctn. Usually for remote control, there are  pcs per ctn)




5.Contact Information:



NameAmy Wu

Mobile: +8615606008788

Tel: 86-592-5782488

Website: http://www.xmyuzhou.com/en/index.aspx

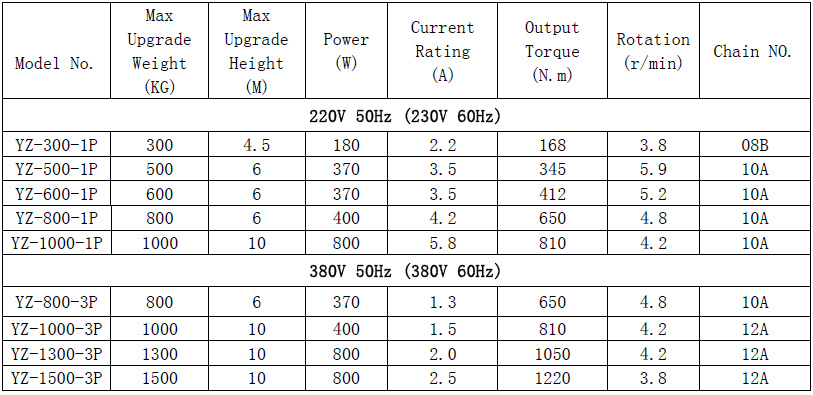

Model No.
Max Upgrade Weight
(KG)
Max Upgrade Height
(M)
Power
(W)
Current Rating
(A)
Output Torque (N.m)Rotation(r/min)Chain NO.
220V 50Hz (230V 60Hz)
YZ-300-1P3004.51802.21683.808B
YZ-500-1P50063703.53455.910A
YZ-600-1P60063703.54125.210A
YZ-800-1P80064004.26504.810A
YZ-1000-1P1000108005.88104.210A
380V 50Hz (380V 60Hz)
YZ-800-3P80063701.36504.810A
YZ-1000-3P1000104001.58104.212A
YZ-1300-3P1300108002.010504.212A
YZ-1500-3P1500108002.512203.812A

Xiamen Universal Electronic Co., Ltd is a professional manufacturer of Rolling Door Motor, Tubular Motor, Micro Switch and semiconductor component separator, etc. After years of practical experience, efforts of all colleagues, the support of customers and suppliers, now we have Mechanical & Electrical Department, Electronic Components Department and Integrated Department of Market Operation. There are more than 40 series products, with over 500 kinds of specifications. Mechanical & Electrical products are widely used in shopping malls, hotels, warehouses, banks, factories and other buildings rolling door opening and closing; Electronic Components are mainly used in home appliances, industrial control, automotive electronics and other areas. We have done business with more than 40 countries all over the world and earned a good reputation.

Main products:

Rolling Door Motor, Roller Shutter Motor, Garage Door Motor, Rolling Shutter Motor, Automatic Door Opener, Tubular Motor, Micro Switch, Tip Over Switch, Tilt Switch, Safety Switch, Bridge Rectifier, etc.

Superior Service:

Being a professional manufacturer for many years, we always supply quality product at competitive prices with superior service. We keep the principle of "Quality First, Customers Supreme" and always try to meet customers' Requirements at any time. Any inquiries will be replied within 1 business day.

Quality Assurance:

We have QC department to make inspect every step of production, so we can make sure good quality products for customers.

Sample Order:

Sample order is available, normally, it takes about 7 days to make new samples.

Welcome to inquire from our company if you have any requirement. We are always positive and ready to offer excellent service.
