| Prod Model: |
DC24V-600KG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
300W |
| Max Lifting Force: |
300-1500kg |
| Max Hoist Height: |
6m |
| Weight Of Main Engine: |
11kg |
| Max Outer Dia. Of Door: |
0.48m |
| Voltage Requirement: |
110V/230V/380V |
| Characteristic: |
Silent Moving Noiseless |
| Great Advantage: |
Obstacle Detection System Within |
| Appearance: |
Vogue and Delicate |
| Number Of Stator: |
Single-Phase |
| Function: |
Control |
| Brand: |
Universal |
Product Description

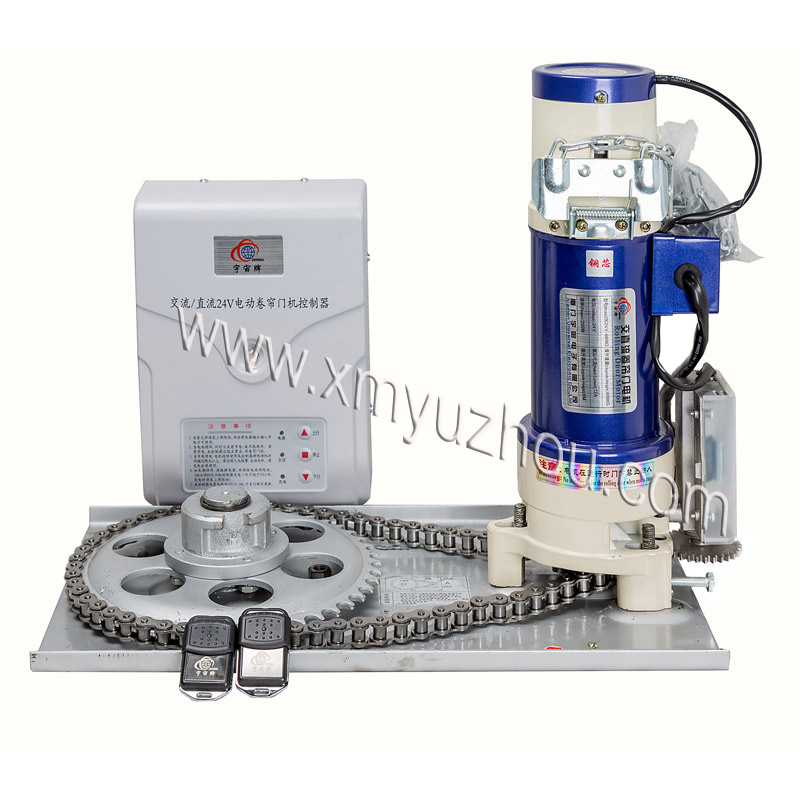

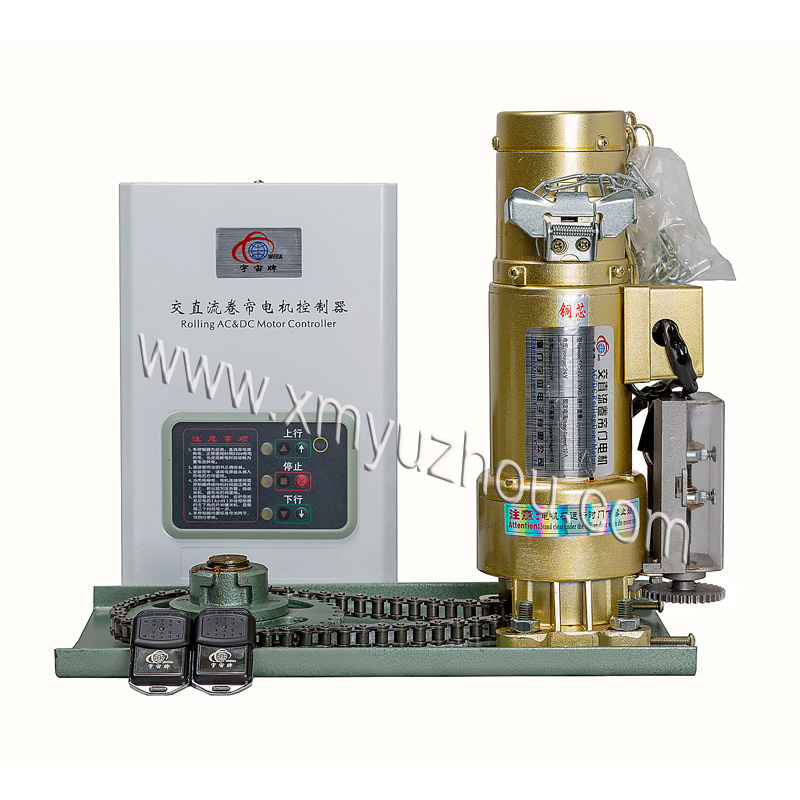

Electric AC Rolling Door Motor Feature:
1 100% copper material inside the motor, so it have a larger capacity and durable than other motors.
2Overheat protection:The motor is with overheat protect equipment. If the temperature up to 110, the power supply will be cut off automatically to protect the motor. Till the temperature down to 70, it can be used again.
3 Mechanic Limit switch adjusts the door position in both "up" and "down" precisely and safely.
4 With convenient and stability control function, can be operated by remote control;
5 Manual button: Up, Stop and Down.You can through the manual button which makes the rolling door open and close.
6 Operated by manual chain when power off.
7 Clutch lever: When the power is turned off,you can pull down the clutch lever,the rolling door closed.
Working Environment and Conditions :
1) Relative humidity:90%(25°C).
2) Air temperature change as well as season.
3) Voltage and frequency is in line with the product nameplate.
4)Short hour working system, continuous operation not exceeding 5 minutes
Application:

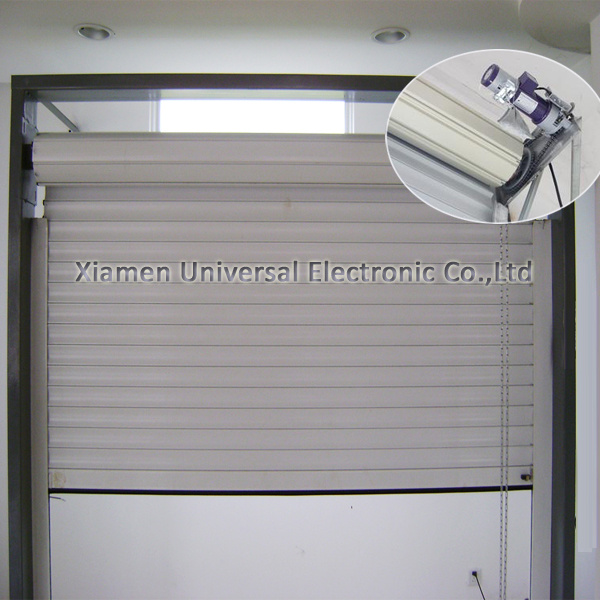

Our Electric Motor for Garage Door are widely used in shopping malls,hotels,warehouses,garages,post and telecommunications,banks,shops,factories and other buildings' rolling door opening and closing. It is an ideal accessory products of modern architecture.

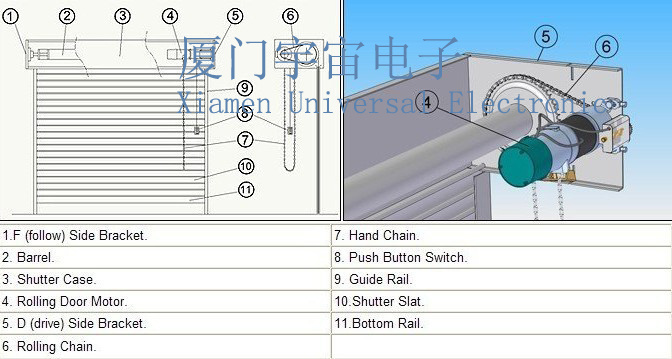

Electric Motor for Garage Door belong to single phase motor can be used for left and right are two forms of installation, control system and is connected with conventional wired remote control, can also be connected with automatic reserve power supply unit, electrical power outage in the city can still be used normally for regular blackouts area. This Strong horsepower Motor model also applies to retractable gate drive.
Why Choose Us?
Xiamen Universal Electronic Co.,Ltd, with our strong R&D capabilities and strict product quality control, our Gate Opener Motor
have been well received and have been gaining poularity both at home and overseas. All Motor Roller Shutter passed numerous insulation tests in heat, sound and wind, which meet the recent trend of energy saving. Our good reputation in innovation and quality has brought in numerous exporting business and inland trade. If you have any interest in our Door & Window Rollers Motor or other products, please browse our website for further imformation or contact us.
Contact Person:
Amy Wu
Xiamen Universal Electronic co., Ltd.
HP: 86-15606008788
Tel: 86-592-5782488
Web: http://www.xmyuzhou.com/
Model No. | Max Upgrade Weight
(KG) | Max Upgrade Height
(M) | Output Power
(W) | Current Rating
(A) | Output Torque (N.m) | Rotation
(r/min) | Chain NO. |
| 220V 50Hz (230V 60Hz) |
| YZ-300-1P | 300 | 4.5 | 250 | 2.5 | 168 | 4.0 | 08B |
| YZ-500-1P | 500 | 6 | 370 | 3.5 | 345 | 5.9 | 10A |
| YZ-600-1P | 600 | 6 | 370 | 3.5 | 412 | 5.2 | 10A |
| YZ-800-1P | 800 | 6 | 400 | 1.3 | 650 | 4.8 | 10A |
| 380V 50Hz (380V 60Hz) |
| YZ-800-3P | 800 | 6 | 370 | 1.3 | 650 | 4.8 | 10A |
| YZ-1000-3P | 1000 | 10 | 400 | 1.5 | 810 | 4.2 | 12A |
| YZ-1300-3P | 1300 | 10 | 600 | 2.0 | 1050 | 4.2 | 12A |
| YZ-1500-3P | 1500 | 10 | 800 | 2.5 | 1220 | 3.8 | 12A |
| YZ-2000-3P | 2000 | 10 | 1200 | 4.5 | 2450 | 3.6 | 12A |
Xiamen Universal Electronic Co., Ltd is a professional manufacturer of Rolling Door Motor, Tubular Motor, Micro Switch and semiconductor component separator, etc. After years of practical experience, efforts of all colleagues, the support of customers and suppliers, now we have Mechanical & Electrical Department, Electronic Components Department and Integrated Department of Market Operation. There are more than 40 series products, with over 500 kinds of specifications. Mechanical & Electrical products are widely used in shopping malls, hotels, warehouses, banks, factories and other buildings rolling door opening and closing; Electronic Components are mainly used in home appliances, industrial control, automotive electronics and other areas. We have done business with more than 40 countries all over the world and earned a good reputation.
Main products:
Rolling Door Motor, Roller Shutter Motor, Garage Door Motor, Rolling Shutter Motor, Automatic Door Opener, Tubular Motor, Micro Switch, Tip Over Switch, Tilt Switch, Safety Switch, Bridge Rectifier, etc.
Superior Service:
Being a professional manufacturer for many years, we always supply quality product at competitive prices with superior service. We keep the principle of "Quality First, Customers Supreme" and always try to meet customers' Requirements at any time. Any inquiries will be replied within 1 business day.
Quality Assurance:
We have QC department to make inspect every step of production, so we can make sure good quality products for customers.
Sample Order:
Sample order is available, normally, it takes about 7 days to make new samples.
Welcome to inquire from our company if you have any requirement. We are always positive and ready to offer excellent service.
