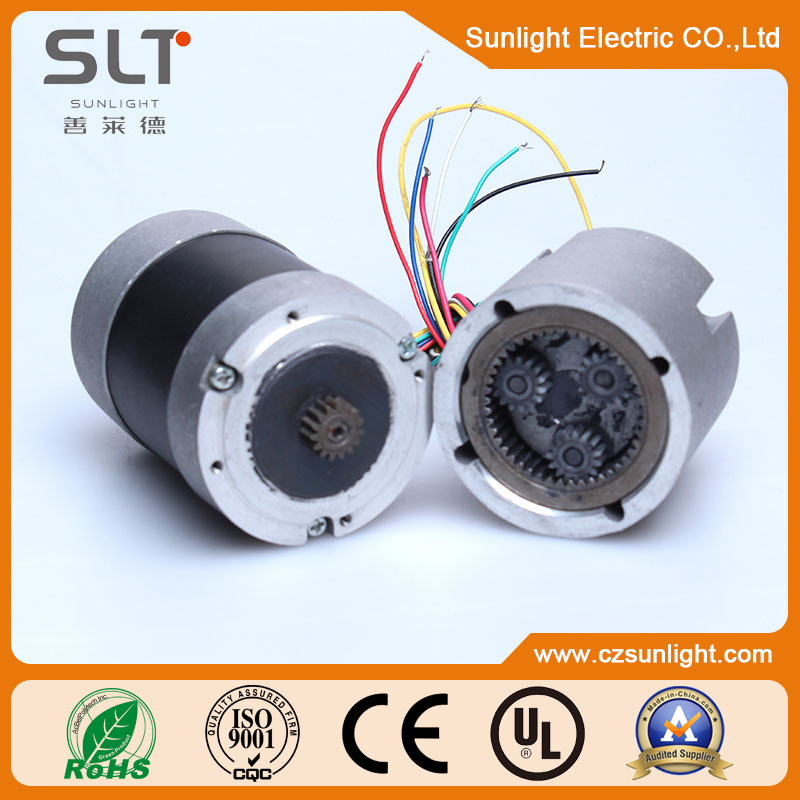

Electric Brushless DC Gear Motor with Adjust Speed

Prod Model:	SLT57BG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	24V
No Load Speed:	5000
Rated Torque:	220
Rated Speed:	3650rpm
Rated Current:	5A
Stall Torque:	550mnm
Stall Current:	12A
Rotor:La:	41mm
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Brand:	Slt

Product Description

1,Voltage:6V-36V
2,No load speed:1000-10000 r/min
3,Rated torque:0.01-0.8Nm
4,Rated speed:3000-8000r/min
5,Rated current:0.5A-20A
6,Environment conditions:-10-40ºC
7,Magnet material:Bonded NdFeB
8,Insulation Class:B
9,OEM and ODM are available for us.

Advantage of  Electric Brushless DC Gear  Motor with Adjust Speed

1,Low interference
2,low noise ,smooth operation
3,long life,low maintenance cost
4. Used widely


Specifications of   Electric Brushless DC Gear  Motor with Adjust Speed


Model		SLT57BG02-JC
output shaft speed	RPM	310
Ratio	I	16
Motor  Parameter
Voltage	V	24
No load speed	rpm	5000
Rated torque	Nm	220
Rated speed	rpm	3650
Rated current	A	5
Stall torque	mNm	550
Stall current	A	12
Rotor inertia	Kgmm²	11.9
Black-EMFconstant	V/krpm	3
Torque Constant	Nm/A	48
Resistance(20ºC)	ohm	0.65
Weight	Kg	1
Rotor:La	mm	41


 Applications of  Electric Brushless DC Gear  Motor with Adjust Speed

A:Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
B.Home Appliance ( Electric cooker, Electric mop and other products.)
C.Medical equipment and beauty products.
D.Office products (such as printer, scanner......)
E. Other Fields.




About sunlight:

1,The company covers an area of 5000 square meters;
2,Modern workshops have advanced production lines and professional knowledge of assembly.
3,Excellent sales team and after-sales service
4,Professional technical team
5,Broad market:Europe(Germany....)America(America,Canada...)
Asian( Korea, Japan...)

Contact  Sunlight

1,Your client satisfied on the right schedule and quality;
2,You can get good reputation from your market and obtain more orders;
3,Our professional service before and after sale;
4,The reasonable and competitive price;
5,Service is excellent.Any questions from you are welcome and will be replied in 24 hours.
6,Delivery on time
 .

Packaging & Shipping

1,Inner packing(Waterproof plastic bag packing)+Outer packing(Carton packing)
2,Export wooden box packaging for products.
3,Other package as you required
