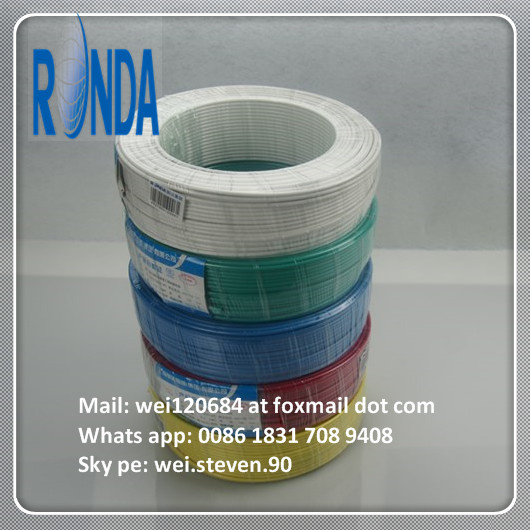

Electric Cable 25 35 50 70 95 120 150 SQMM

Name: Electric Cable 25 35 50 70 95 120 150 SQMM
Brand: all-electronics-online.com
SKU: 803082425
Availability: InStock
Rating: 4.9 (56 reviews)

Price:	US $ 0.1-1/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJV
Colour:	Customized
Standard:	IEC60502 IEC60227 IEC60228
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Copper
Certification:	CCC
Brand:	Ronda
Insulation Material:	Polyolefin
Application:	Building Wire

Product Description

Steve Wei  Sales Manager

Electric Cable 25 35 50 70 95 120 150 SQMM (1-30KV Available)
Application:
Distribution and signal power cable for static outdoor application (with protection against direct UV-irradiation), in ground, in water, within facilities, in cable canals, in concrete, in conditions where heavier mechanical loads and specially tensile strains, are not expected. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and in other electric plants, same as for connection of signalling devices in industry, traffic and similar.

Standards:
IEC 60502-1

Construction:
Conductor:Cu, class 1 or 2 acc. to HRN HD 383 / IEC 60228 / DIN VDE 0295
class 1:solid, round(RE) or sector (SE)
class 2:multi wire stranded, round (RM) or sector (SM),
             multi wire exceeding 50 mm² are compacted
Insulation:PVC
Filler: extruded elastomer or plastomer compound or wrapped thermoplastic tapes
Sheath:PVC
Sheath Color: Black

Technical Data:
Temperature Range
during installation:-5 °C up to +50 °C
fixed installed:-30 °C up to +70 °C
at short circuit of max. 5 s:up to 160 °C
Nominal Voltage:Uο/U = 0,6/1 kV
Test Voltage: 4kV
Max. Operating Voltage In Three-phase System:1,2 kV
Max. Tensile Strength: 50 N/mm²
Behaviour In Fire:IEC 60332-1
Minimal Inner Bending Radius:
single core:  15D
multi core:   12D

Core QTY:
1C,2C 3C, 3C+2C, 4C+1C
Nominal Cross-section Area (mm²)Range:
1.5  2.4 4 6 10 16 25 35 50 70 95 120 150 185 240 300 500 500 630

For More Information:

cell: 0086 183 1708 9408

Established in the year of 1999, covering more than 100, 000 square meter, with total fixed assets of RMB 500 million, Shanghai Ronda Cable Group Co. Ltd is located in the Liantang Industrial Park, Qingpu District, Shanghai City, which is closed to Huqingping Highway, near to Hongqiao International Airport and is in the convenient and unique location.

Shanghai Ronda Cable Group Co., Ltd, the combination of R&D, trading, production and sale, is a large and comprehensive high-tech company including five wholly-owned subsidiaries as Ship Cable Company, High and Low Voltage Cable Company, Mining Cable Company, Prefabricated Branch Cable Company and Special Cable Company. It specializes in the R&D and production of power cable, control cable, rubber cable, ships and marine cable, solar energy photovoltaic cable, wind power cable, prefabricated branch cable, computer and compensation cable, and frequency cable, nuclear power plant cable etc.
