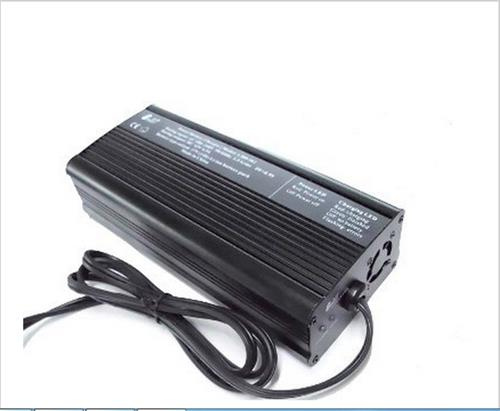

| Prod Model: |
L500CM-XX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| For Use: |
Standard Battery |
| Case: |
PC+ABS Plastic |
| Color: |
Yes |
| Recovery Function: |
Yes |
| MCU Controller: |
Yes |
| Customized: |
Yes |
| Reverse Potection: |
Yes |
| Short Circuit Protection: |
Yes |
| Overheating Protection: |
Yes |
| Delivery Date: |
About 15 Days After Confirm Order |
| Type: |
Lithium Battery |
| Charger Type: |
Li-ion Battery Charger |
| Charger Application: |
Electric Sightseeing Car, Electric Car |
| Nominal Voltage: |
29.4V,59V,73V |
| Compatible Battery Type: |
24V~60V |
| Size: |
223× 126× 71mm |
| Socket Type: |
VDE,UL,CCC,UK,PSE,SAA,CCC,TUV |
Product Description
1. The charger integrates power factor correction (PFC), it can avoid the impact of high current and can't produce pollution on the grid
2. The input AC voltage is 90V~264V 50~60Hz for L500-XX, and is 90V~132V or 200V~260V 50~60Hz for L500CM-XX
3. Efficiency > 87%, Power Factor > 0.97 [for L500] or >0.7[for L500CM]
4. With MCU controller, CC+CV, cut-off when finished charging
5. Designed for 24V~60V power Li-ion/Li-Fe battery pack
Protection
1. The charger's internal relay makes the output voltage is less than 5.5V with no-load, when the output is connected to a battery, the output voltage of charger is normal
2. Short circuit protection: When the output of charger is shorted, the charger will close output automatically without any damage
3. Reverse polarity protection: When the output is connected to a battery reversely, the charger will close output automatically without any damage
4. Overheating protection: The internal temperature exceeds 80 ° C, the charger will close output automatically
| Technical Specifications |
| AC Input |
| Nominal Input Voltage | 120 VAC / 230 VAC RMS |
| Input Frequency | 50-60 Hz |
| Input Current | 6A rms @ 120 VAC or 3A rms @ 230 VAC |
| Power Factor | > 0.97 [for A500] or > 0.7[for A500CM] |
Charger type
DC Output | Li-Ion/Li-Fe battery charger |
| L500CM-24 | L500CM-48 | L500CM-60 |
| Output Voltage (no battery) | < 4V | < 5V | < 5V |
| Charging end condition | < 1.3A | < 0.7 | < 0.6 |
| Bulk Charging Voltage Limit | 29.4V± 1% | 59± 1% | 73V± 1% |
| Charging Current | 15A± 10% | 8A± 10% | 6A± 10% |
| LED Indicator | Power LED Red: power on |
| Charging LED Off: no battery |
| Red: charging |
| Green: finished |
| Red flashing: errors |
| Efficiency | > 87% |
| Environment |
| Operating Temperature | -10~40° C |
| Operating Humidity | < 90% |
| Storage Temperature | -40~70° C |
| Storage Humidity | < 95% (non-condensing) |
| Cooling | Fan cooling |
| Safety |
| Max Temperature rising | < 20° C (on casing) |
| Safety Standard | EN60335/EN61000 |
| Hi-Pot Insulation | i/p to o/p: 1500AC (1 min. )
(For final unit, cut-off current =10mA) |
| Mechanical |
| Weight | 1200g |
| Dimensions(L*W*H) | 223× 126× 71mm |
| Input/Output Cord | Defined by user |
Green-charger's engineers have dedicated to digital control power products for 13 years, specialize in the design and manufacture many types of NiMH, NiCd, Li-ion and Lead-acid battery charger and battery meter, and also is a professional in the face of high-end clients of the battery charger and battery meter. These products have high performance microprocessor technology to power your battery safely and quickly The main products are battery chargers that can be used in the Electrical-Vehicle, wheelchair, scooters, motorcycles, RC toy, RC flight, mobile light/lamp, LED lamp and many kinds of portable electrical device. The type of chargers have NiMH NiCd charger, lithium battery charger, lead-acid battery charger, LiFePO4 battery charger and so on. All sorts of 5W to 500W power charger all have production, is one of the most professional manufacturers of battery chargers in China.
After many years experiences, Green-charger made a super technology and rich experience of senior R&D engineers. We can develop battery chargers for NiMH, NiCd, Lead-Acid and Li-ion batter pack. The Battery chargers and Battery Management is our produces family also.
Our quality policy is: Providing high reliability of the products, to provide high satisfaction service. We are equipped with the advanced production and kind of test instruments, has the rich RoHS process production management, to ensure that every batch of products satisfy customers. Our products have CCC UL cUL CE VDE CB PSE FC EMC and so on.
We can according to the specific requirements of customers, customized all kinds of non-standard products to meet the needs
