| Prod Model: |
JQ3 |
| Model Name: |
Jq3 |
| Catagory: |
AC-33b |
| Rated Current: |
1A~63A |
| Rated Voltage: |
2pole 220V, 3p/4p 380V |
| Control Voltage: |
180V~270V, Normally 220V/230V |
| Frequency: |
50/60Hz |
| Pole: |
2p/3p/4p, 1p Customized |
| Transfer Type: |
Both Automatic and Manual |
| Transfer Time: |
Less Than 3s |
| Standards: |
IEC60947-3, IEC60947-1, Ce, CCC |
Product Description
Electric Circuit breaker type 2P Auto Transfer switch from 1A to 63A1. Application:
JQ3 ATS is smallest volume automatic transfer switch. It uses mini circuit breaker with motor controller to transfer two power sources automaticly. Also with Short-circuit protection, overload protection, firecontroll and other protection. Used in AC or DC circuits. 2. Basic Specification: JQ3 | Rated Current Ie A | 1,6,10,16,20,25,32,40 | 50, 63 |
| Electrical Appliances Class | CB(Circuit breaker type) |
| Use Category | AC~33B |
| Tripping Current | 5~10In (Type C), 10~15In (Type D), |
| Rated voltage Ue | 220V (2P),380V (3P or 4P) |
| Rated frequency | 50/60Hz |
| Transfer time | Less than 3S | |
| Rated short circuit connecting ability Icm (Peak) | 9.18KA | 6.615KA |
| Rated short circuit breaking ability Icn (effective value) | 6KA | 4.5KA |

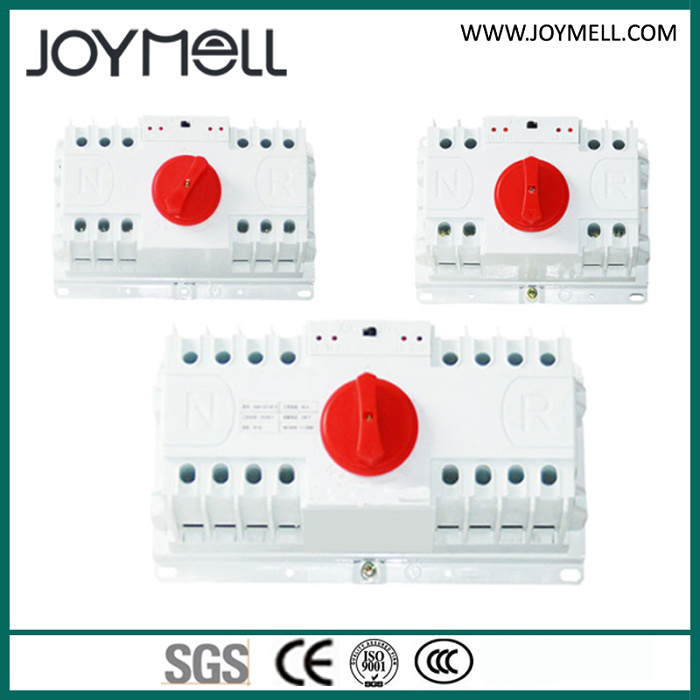

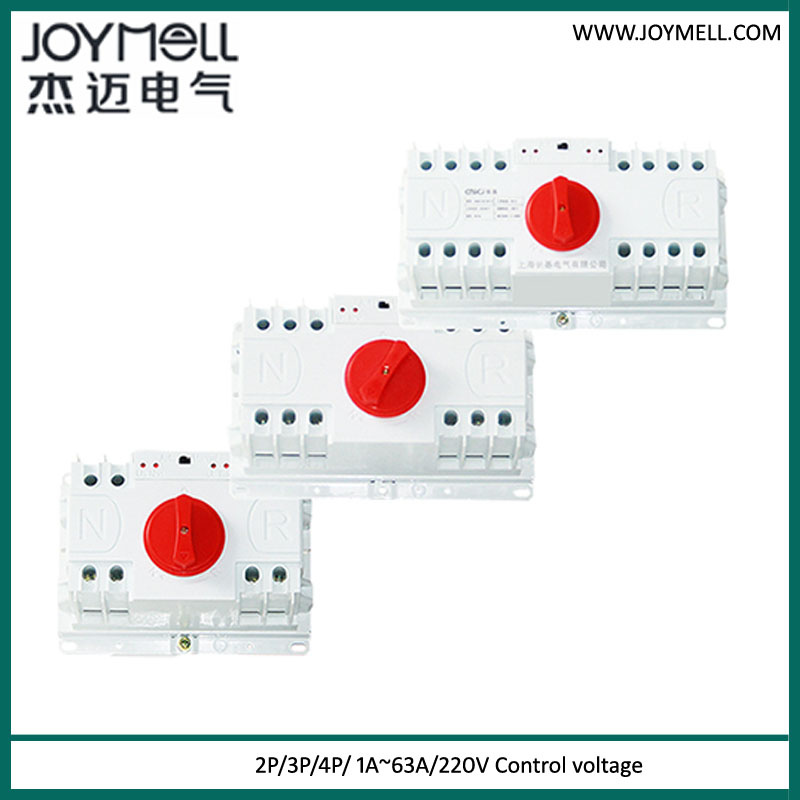

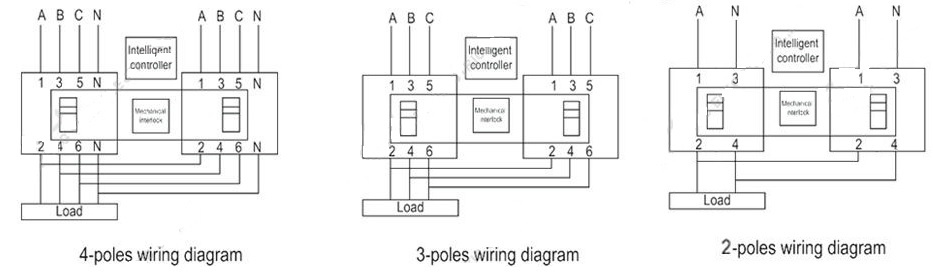

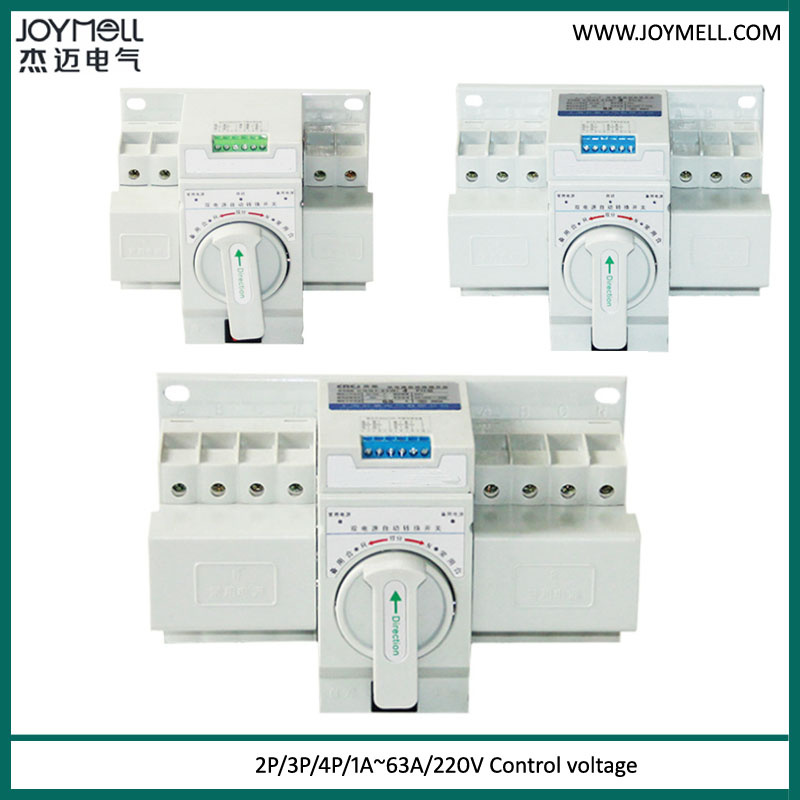

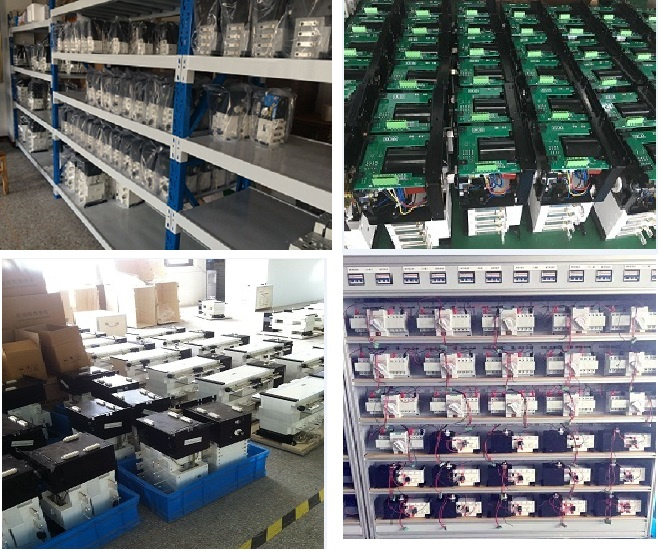

3. Drawing4. Pictures5. Production line:With some stock, JQ3 ATS normally with stock. 1000pcs ATS production time within 7days.
QC quality control for every step, to make sure 100% passed.
6. Packing and shipment:| Model | Carton size(m) | Each Carton GW(kg) | Each Carton NW(kg) | Each Carton (PCS) |
| L | W | H |
| JQ3 ATS 4P/220V | 0.485 | 0.31 | 0.28 | 17.53 | 16.00 | 8 |
| JQ3 ATS 3P/220V | 0.485 | 0.31 | 0.28 | 16.00 | 15.20 | 8 |
| JQ3 ATS 2P/220V | 0.395 | 0.300 | 0.260 | 14.50 | 13.50 | 8 |

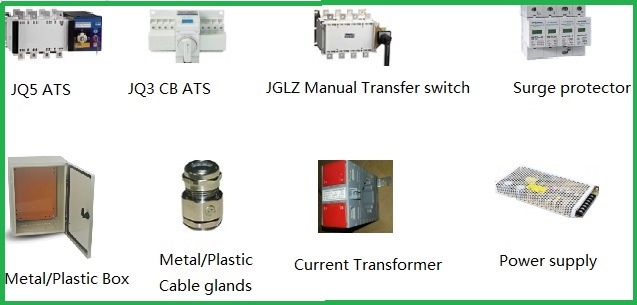

7. Other product series:Manual transfer switch: 1A~1600A, 3P/4P.
Metal Enclosure for Transfer switch: Metal box, size can color can be customized.
Plstic box: Different ways, competitive price, welcome to contact.
Surge protector: B,C,D Class, AC, DC type you can choose. Different types and discharge current you choose.
Power supply: Hot used in Gepenerator system, 120W 12/24V. And other types.
Current transformer: Different size you can choose, quality guarantee, hot used in Generator cabinets. 8. Q&A:1) Q:Your company ? And products?
A: Joymell is factory for ATS, Enclosure, Power supply, Current transformer etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
2) Q: Do you have forwarder?
A: Yes, we have good forwarder cooperated over 7years, they help us import and export . For small package orders, suggest to use by Express.
3) Q: Your address ?
A: Locates in Zhejiang province, Baixiang town, Chandong industrial zone.
4) What's the ATS guarantee?
A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
5) What's about MOQ? Delivery time ?
A: 1pcs for ATS. Normally less than 1000A ATS with stock, quick support.
6) What's the payment term?
A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.
7) What's your contact information ? A: Website: www.joymell.com, welcome to contact us anytime. Welcome your inquiry ^!^8
