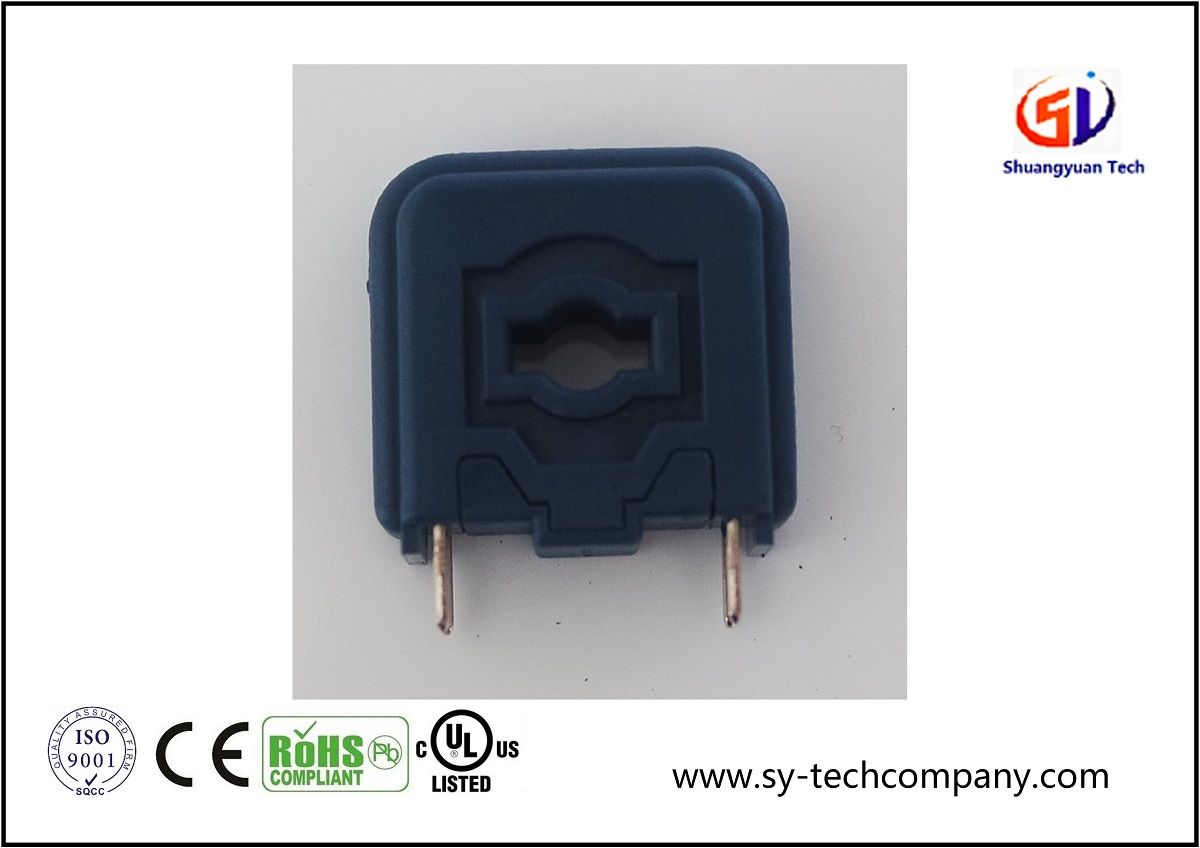

Product Description
Description:For the electronic measurement of currents: DC, AC, pulsed, mixed, with a galvanic isolation between the primary circuit and the secondary circuit.
Features:1) Open loop transducer using the Hall effect
2) Low voltage application
3) Unipolar +5VDC power supply
4) Primary current measuring range up to ±1200A
5) Operating temperature range:-40ºC< TA<+125ºC
6) Output voltage: fully ratio-metric(gain and offset)Advantages:1) High accuracy
2) Excellent linearity
3) Low temperature drift
4) Hermetic packageIndustrial Applications:1) Standard battery monitoring
2) Hybrid and EV battery pack current sensing
3) Fuel cell current control
4) DC/DC converters and AC/DC inverters
5) Hybrid and EV motor inverter drive
6) EPS and X-by-wire applications
7) Electric compressors for air conditioning Types of Products:| Type | Primary nominal current IPN (A) | Primary current measuring range IP (A) |
| HS51-80A-P | 80 | ±80 |
| HS51-200A-P | 200 | ±200 |
| HS51-250A-P | 250 | ±250 |
Parameters Table:| Parameters | Symbol | Unit | value | Conditions |
| Min. | Typ. | Max. |
| Electrical data |
| Supply voltage | Vcc | V | - | 5 | - | |
| Current consumption | Icc | mA | - | 8.2 | 10 | @TA = 25°C |
| Output Load Resistance | RL | kΩ | 4.7 | - | - | |
| Output Load Capacitance | CL | nF | - | - | 10 | @VOUT to GND |
| Output Resistance | ROUT` | Ω | - | 1.5 | - | |
| Output voltage | VOUT | V | Vc /5 ×(2.5+0.025×Ip)@80A | @TA = 25°C |
| Vc /5 ×(2.5+0.01×Ip) @200A |
| Vc /5 ×(2.5+0.008×Ip)@ 250A |
| Output Linearity | εL | % | -1% | - | +1% | @TA = 25°C |
| Accuracy | X | % | -2% | - | +2% | @TA = 25°C |
| Quiescent Output Voltage(1) | VOUTQ | V | 2.5V±20mV | @TA = 25°C B=0 |
| Performance data |
| Magnetic Sensitivity | SENS | mV/G | 1.75 | - | 11.25 | @TA = 25°C |
Sensitivity Temperature
Coefficient | TCSENS | %/°C | -0.016 | 0.05 | 0.104 | @TA = 25°C |
| Output Bandwidth | BW | kH | - | 20 | - | @-3dB |
| Noise | VN | mV | - | 14 | 26 | @peak-to-peak, CLOAD > 1 nF,
2.5 mV/G |
| Phase Shift | ΔΦ | (°) | - | 3 | - | @Magnetic signal freq. = 1000 Hz |
| Response time | tr | µS | - | 15 | 20 | |
| Rms voltage isolation test | Vd | kV | - | - | 2 | @AC 50Hz 1Min |
| General data |
| Ambient operating temperature | TA | ºC | -40~+125 | |
| Ambient storage temperature | TS | ºC | -40~+125 | |
Notes:
The indicated offset voltage is the one after the core hysteresis is removed.Instructions of use:1) When the test current passes through the sensors, you can get the size of the output voltage.(Warning: wrong connection may lead to sensors damage.)
2) Based on user needs, the output range of the sensors can be appropriately regulated.

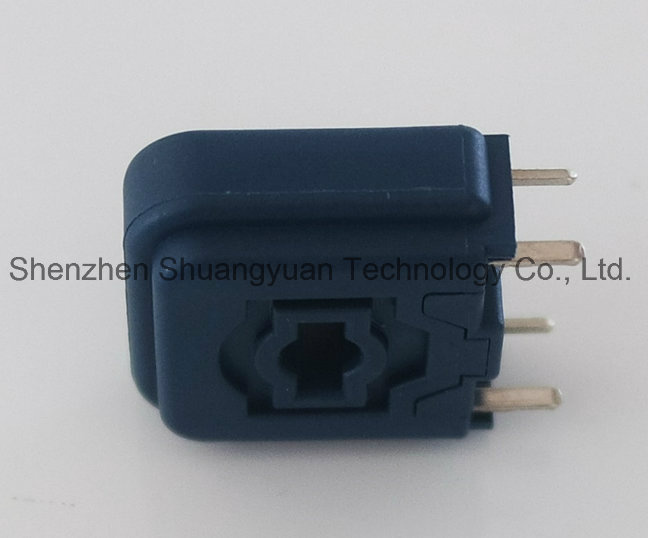

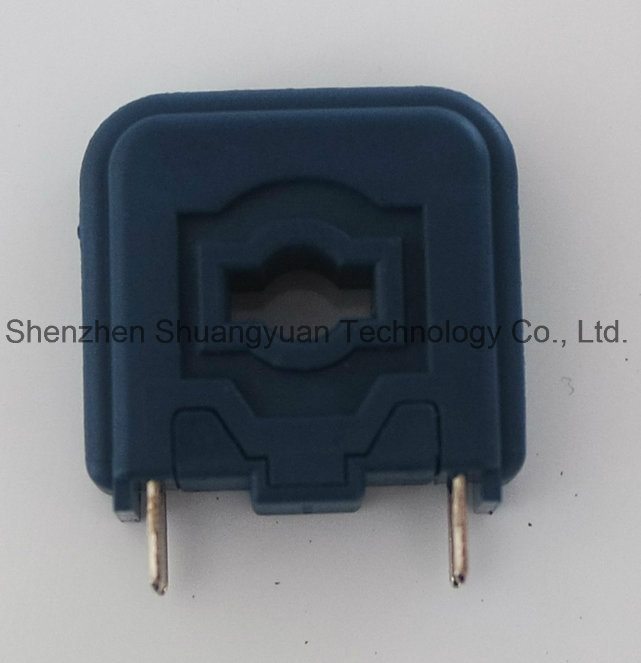

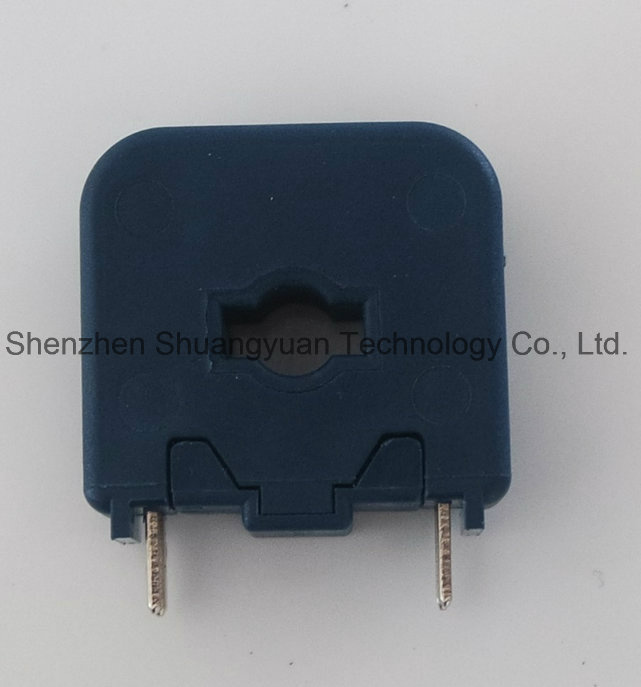

3) According to user needs, different rated input currents and output voltages of the sensors can be customized.Product Details:
