| Prod Model: |
DC24V-600KG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| The Theory: |
DC 24V Geared Motor |
| Rated: |
DC24V |
| Lift Capacity: |
600kg |
| Material: |
Aluminum Alloy |
| Install: |
Outside-Mounted |
| Application: |
Universal |
| Operating Speed: |
Low Speed |
| Excitation Mode: |
Shunt |
| Brand: |
Universal |
Product Description

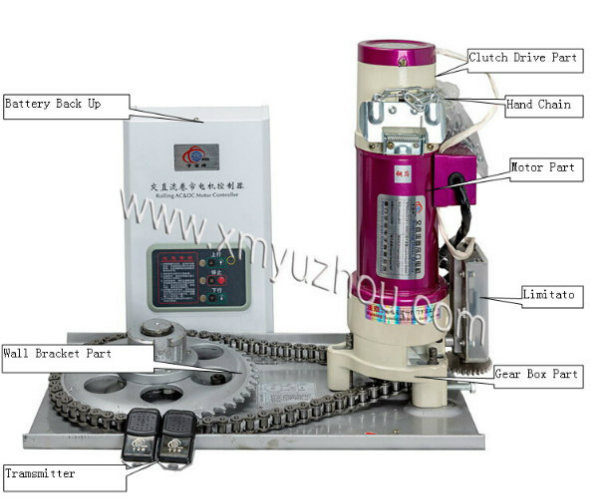

1.The Main Structure of dc 24v geared motor:
Notes: Motor color could designed by client's request.
Infrared sensor is optional.
2. Characterics:
1. Good design, advanced structure & strong power.
2. Standard electric component, security and credibility.
3. Motor operation smooth, low vibration and noise & long service life.
4. Remote control and manual hand chain.
5. Supply reserved power equipment/UPS/Backup Battery. In the absence of power, can also operate the motors,
6. The battery is 4Ah/12V.
7. Voltage: 24VDC.
3. Specification
Model No. | Max Upgrade Weight
(KG) | Max Upgrade Height
(M) | Output Power
(W) | Current Rating
(A) | Output Torque (N.m) | Rotation
(r/min) | Chain NO. |
| DC 24V |
| DC24V-300KG | 300 | 6 | 200 | 10 | 168 | 4.9 | 10A |
| DC24V-500KG | 500 | 6 | 240 | 12 | 345 | 4.6 | 10A |
| DC24V-600KG | 600 | 6 | 240 | 12 | 412 | 4.2 | 10A |
| DC24V-800KG | 800 | 10 | 380 | 14 | 650 | 3.9 | 10A |
4.FAQ
Q1: What's your Opener Range?
1) AC Motor 1 Phase (110V/220V 50Hz)
2) AC Motor 3 Phase (380V 50Hz)
3) AC&DC Motor (24VDC 50Hz)
Q2: What's the material of Motor Winding?
-The main material is 100% Copper Wire, and the Aluminum Wire is for optional.
Q3: Is the contactor or relay in the control panel of motor?
-Relay, usually there are 4 relays in the control panel of the motor.
Q4: How many days will Door Motor samples be finished? And how about the mass production?
-Generally, within one week for Door Motor samples making.
-The lead time of mass production will depend on quantity. normally,We finish within 20 days.
Q5: What information should I let you know if I want to get a quotation?
-The Width ,Height and Weight of the Shutter/Door
-The Voltage(220VAC,380VAC or 24VDC)
-The Quantity

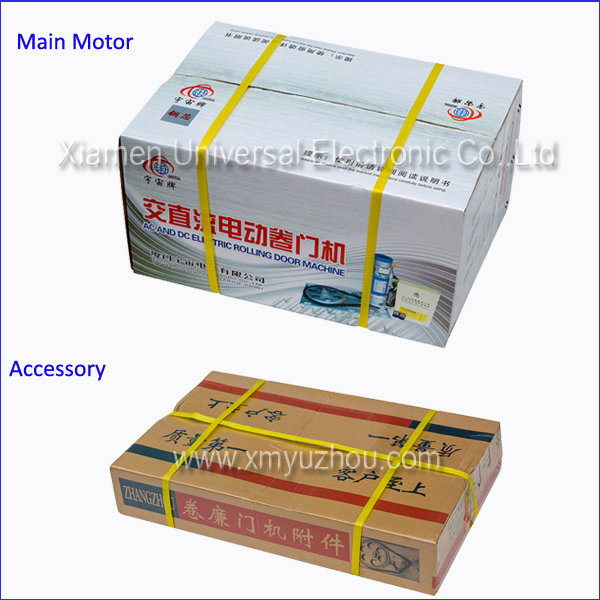

5.Packing Information:
There are 2 ctns per set. One for Door Motor . and another for accessory. (For remote control set, it is packed in another ctn. Usually for remote control, there are 20pcs per ctn)
6. Certificate:
Contact Person
Ivy Lan
Xiamen Universal Electronic Co.,Ltd
No.318. South Tongji Road, Jimei District, Xiamen City, Fujian,China
Mobile: 86-15606003688
Tel: 86-592-5782488
Fax: 86-592-5664223
Xiamen Universal Electronic Co., Ltd is a professional manufacturer of Rolling Door Motor, Tubular Motor, Micro Switch and semiconductor component separator, etc. After years of practical experience, efforts of all colleagues, the support of customers and suppliers, now we have Mechanical & Electrical Department, Electronic Components Department and Integrated Department of Market Operation. There are more than 40 series products, with over 500 kinds of specifications. Mechanical & Electrical products are widely used in shopping malls, hotels, warehouses, banks, factories and other buildings rolling door opening and closing; Electronic Components are mainly used in home appliances, industrial control, automotive electronics and other areas. We have done business with more than 40 countries all over the world and earned a good reputation.
Main products:
Rolling Door Motor, Roller Shutter Motor, Garage Door Motor, Rolling Shutter Motor, Automatic Door Opener, Tubular Motor, Micro Switch, Tip Over Switch, Tilt Switch, Safety Switch, Bridge Rectifier, etc.
Superior Service:
Being a professional manufacturer for many years, we always supply quality product at competitive prices with superior service. We keep the principle of "Quality First, Customers Supreme" and always try to meet customers' Requirements at any time. Any inquiries will be replied within 1 business day.
Quality Assurance:
We have QC department to make inspect every step of production, so we can make sure good quality products for customers.
Sample Order:
Sample order is available, normally, it takes about 7 days to make new samples.
Welcome to inquire from our company if you have any requirement. We are always positive and ready to offer excellent service.
