Electric Enclosure Control Panel Box Distribution Box

Product Description

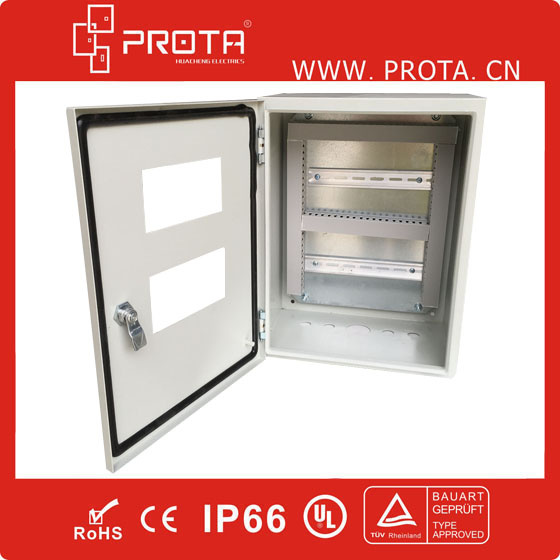

Electric Enclosure Control Panel Box Distribution Box

Product Description:
Material:Cold rolled sheet steel (METAL)

Surface finish: epoxy thermosetting powder coating,textured finished.

Thickness:

Body: 1.2mm, Door : 1.2mm, Galvanized mounting plate: 1.5mm, if the enclosures are smaller than 800X600mm.

Body: 1.5mm, Door : 1.5mm, Galvanized mounting plate: 2mm, if the enclosures are bigger than 800X600mm.

Supply include:

Body enclosure, door with foam PU sealing gasket, gland plate,galvanized mounting plate, sealing gasket and other fixing accessories.

Color: RAL7032 , RAL7035, or according the customer's request.
Protection degree:IP66


Any sizes avaliable on request .Cut-outs and drilled holes to your specifications. Should you have any questions or problems, please contact with

Packing and Shipping
-- Ordinary paper carton for electric enclosure.
-- Paper cover , PP strap, protective film is avaliable for big electric cabinet
-- Plastic bag is avaliable for stainless steel electric box
-- Bubble bag or protective film for inner protection to avoid scratches.
-- Plywood pallet is available when sheet metal products are in large amount.
--Shipping mark according to customer's request.
-- Samples can be send by courier(UPS, FEDEX, EMS,TNT, DHL),bulk production will be deliveried by sea and air.

Our Service

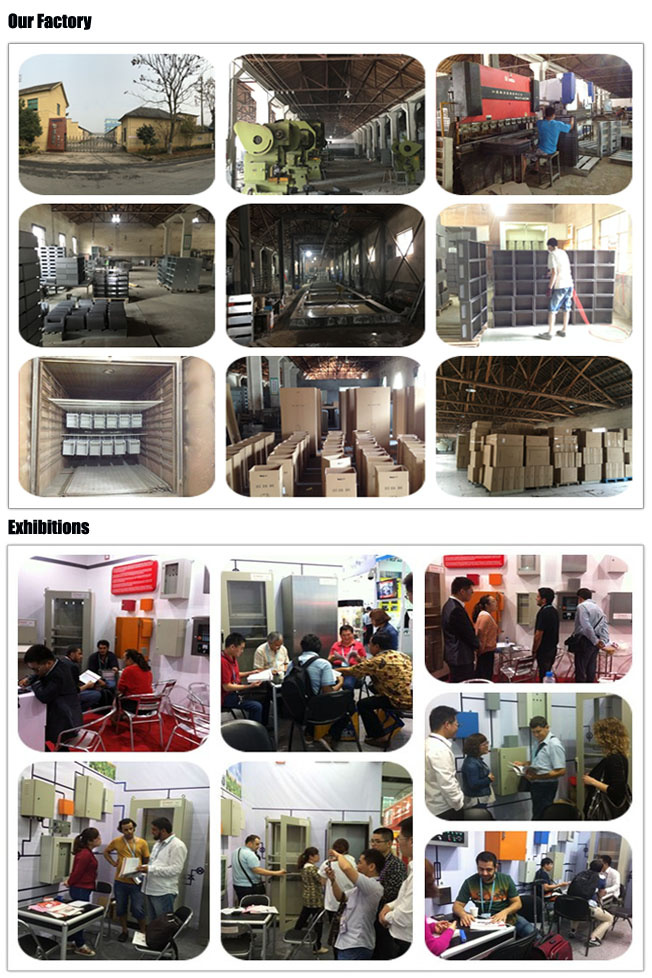

-- We have our own factory, professional sheet metal parts manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
Welcome to visit our factory. Welcome customer or your agent to inspect before order and before loading.

Company Information
PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: metal wall mounting enclosures, stainless steel enclosures, floor standing electric cabinets, knock-down cabinets, terminal boxes, junction boxes, gland boxes, telephone boxes and so on.

As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed ROHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & ROHS certificates were issued by TUV lab in Shanghai China
we are devoting ourselves to achieve high quality products, competitive prices and on time delivery, We are working hard to give more to our customers.
