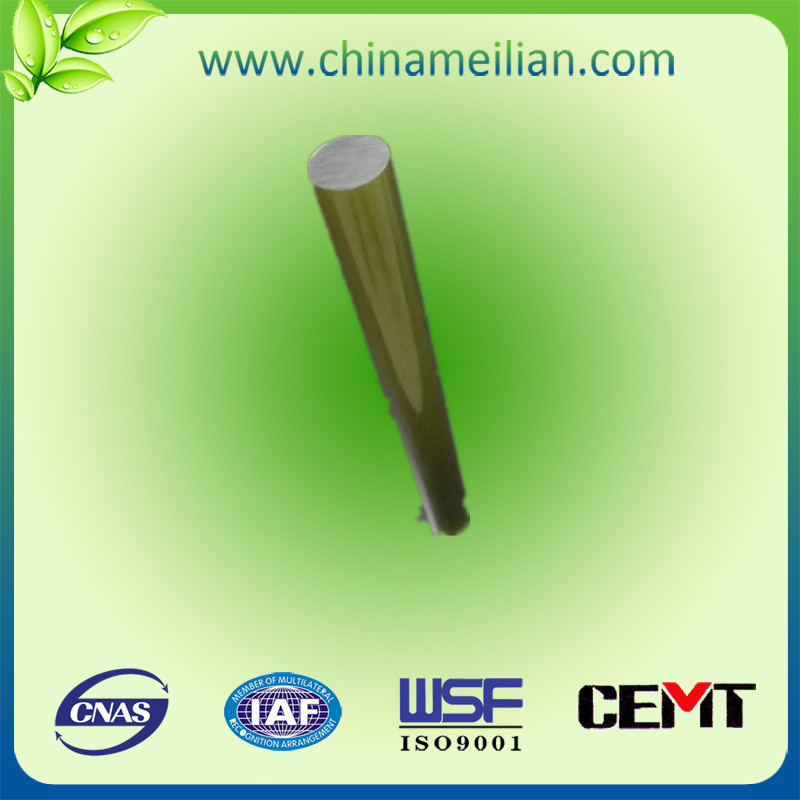

Electric Epoxy Fr4 Fiberglass Insulation Rod

Name: Electric Epoxy Fr4 Fiberglass Insulation Rod
Brand: all-electronics-online.com
SKU: 786096425
Availability: InStock
Rating: 4.9 (137 reviews)

Price:	US $ 6.8-9.7KG
Trade Terms:	FOB,CFR,CIF
Min Order:	300KG
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MJ-3641-884
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	According to Customer Requirement
ID:	According to Customer Requirement
Density:	1.9g/cm3
Delievery Time:	Within 7-10 Working Days
Application:	Generator & Transformer
Type:	Insulation Sleeve
Chemistry:	Hybrid Insulation
Material:	Fiberglass
Thermal Rating:	B 130
Maximum Voltage:	>100KV
Brand:	Mj

Product Description

3641-884 Insulation Laminate Epoxy Rod /Pole
Appearance:
Surface smoothly without bubble and impurities

Feature:
Excellent mechanical & electric property
Good heat & moisture resistance
Easy for processing & machining
High mechanical strength

Application:
Used as insulating tube/pipe in high voltage arrester and high voltage switch

Packaging Detail: Epoxy slot wedge package: Each package is not more than 100KG. Respectively, paper and plastic film cover plate, a paper packaging box, steel strapping / or according to customers' requirements.

Delivery Detail: 7-10 working days

Parameter	Spicification 883	Spicification 884
Density	≥2.10 g/cm3	≥2.15 g/cm3
Water Absorption	≤0.05 %	≤0.05 %
Tensile Strength	≥1200 Mpa	≥1560 Mpa
Bending Strength	≥1100 Mpa	≥1100 Mpa
Bending Strength At Heat Condition 150°C±2°C	≥340 Mpa	≥340 Mpa
Surface Withstand Voltage In Normal Condition For 1 Min 1min	/	/
Water Diffussion Test (0.15%N,cl boiling for 12KV/1 Min)	≤30 KV/1 MIN	≤30 KV/1 MIN
Leakage Current	≤20 mA	≤20 mA
Dye Penetration Test	≥15 Min	≥15 Min
Acid-resistance Stress Corrosion (1mol/1HNO, of 67% Stress)	≥96 H	≥96 H
Lightning Impulse Withstand Voltage (100KV)	≥5 Times	≥5 Times
Volume Resistivity	≥1012 ΩM	≥1012 ΩM
DC Breakdown	≥50 KV	≥50 KV
Torsion Strength	≥800 Mpa	≥800 Mpa
Sheating Strength Along Laminals	≥50 Mpa	≥50 Mpa

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.

We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.

Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.

We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".

The spirit of our company is: "Good Reputation, Best Products, Wonderful Services
