| Prod Model: |
XQ-3-4 |
| Model Number: |
Xq-3-4 |
| Construction: |
Shunt Wound |
| Continuous Current(a): |
Current |
| Voltage(V): |
48V |
| Efficiency: |
Ie 4 |
| Output Power: |
3 Kw |
| Rated Speed: |
3000 Rpm |
| Package Environmental Rating: |
IP 20 |
| Insulation: |
Class H |
| Speed(Rpm): |
High Speed |
| Application: |
Car |
| Operating Speed: |
Adjust Speed |
| Excitation Mode: |
Excited |
| Structure And Working Principle: |
Brush |
| Type: |
Type |
| Brand: |
Changyin |
Product Description

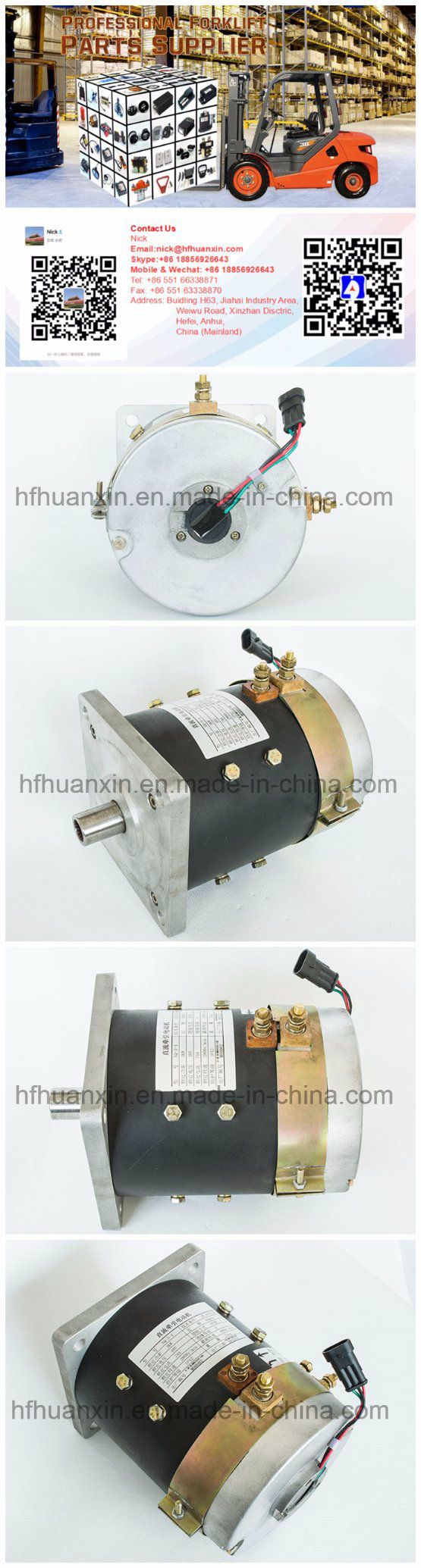

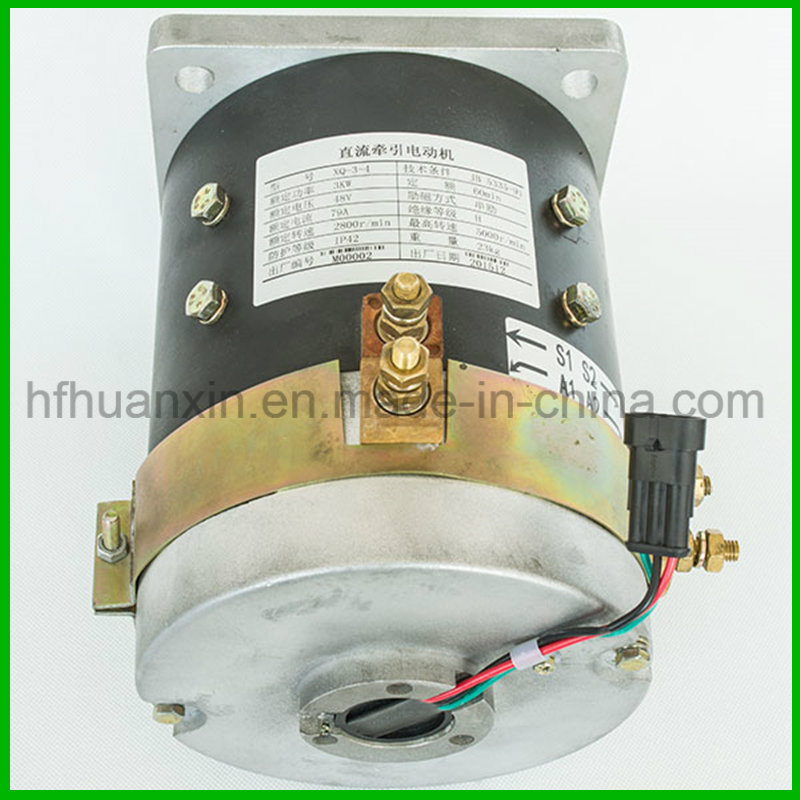

Electric Golf Cart 3KW 48V DC Series Motor Model XQ-3-4
Work With CURTIS 1204M-5203 DC Series Traction Motor
Product Description:
Specifications:
- Nominal power rate: 3 kW
- Operating voltage: 48V
- Flange option: a square flange (as shown in the photos) can be provided for easy installation
- Speed sensor mating connector is included (different connector types are available. By default, an AMP waterproof 3-Pin connector is coming with the motor, for more details, please see the product diagram in PDF format)
- Insulation: class H
- Dimensions (L×Ø): 272 (Max.) × 174 mm
- Weight: 21.4 kg
- Package environmental rating: IP20
Notice: this DC Series motor XQ-3-4 is the product of New United Group. New United Group is the co-working partner of Bombardier Industrial in China, a major manufacturer of tracting electric motor in the world.
Notice: XQ-3-4 can work with CURTIS 1204M-5203 Series Motor Controller. We can also provide the controller assemblage of 1204M-5203.
For more application details (spline, transmission, etc.), please contact us ...
Application:
F&Q:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 3-5 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%.
Package and Shipping :
Package:Normally we use the standard exporting parcel. We also can package the item according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperating.
2. By Air: Delivery from the Shanghai airport to customer's destination city air port.
3. By Sea: Delivery from the Shanghai/Guangzhou/Ningbo sea port .
Our Certification:
About Us:
Our Company
Hefei Huanxin Technology Develop Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of Firstclass quality, Reasonable price, Best service and Professional product support.
Thanks For Your Attention
Looking forward to working with you
Hefei Huanxin Technology Development Co., Ltd, established in 2004, is a professional manufacturer engaged in the research, development, production, sales and service of electric vehicle controller, handle, meter, electronic accelerator and so on. Our company specialized in various kind of pallet trucks parts and forklift parts for both domestic and international markets.
Also our company is the first-level agent of CURTIS BRAND and appointed of Britain Albright Contactor. In addition we have obtained ISO9001 and CE Certificates.
Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your souring requirement.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
