| Prod Model: |
347 |
| Density: |
≥1.7g/cm3 |
| Formation Methods: |
High Temperature and High Pressure |
| Delivery Time: |
7-10 Working Days |
| Size: |
1020*1220mm |
| Samples: |
Free Samples Available |
| Application: |
Generator |
| Type: |
Insulation Sheet |
| Chemistry: |
Hybrid Insulation |
| Material: |
Fiberglass |
| Maximum Voltage: |
>100KV |
| Thermal Rating: |
Grade F |
| Color: |
Red |
| Brand: |
Fiberglass Laminated Sheet |
Product Description
All Products Show
Feature:
Excellent mechanical property
Heat resistance property
Excelletn magnetic permeability
Energy-saving & Environmental protection
Electrical Insulation Laminates Packaging & Shipping
We Take Place In Domestic & International Exhibition Fair Like CWIEME in Berlin/Shanghai, CW CIEMME in Guangdong, Cross-Straits Electric Motor & Appliance Exposition in Taiwan and etc.
------------------------------------------------------------------------------------------------------------------------------
We Have Over 50 Sets of Production & Testing Equipments Which Insure Us The Annual Production Capacity 360 Tons of Magnetic Conductive Sheet, 240 Tons of Insulating Sheet, 80 Tons of Insulation Varnish. Production is Strictly Under Control.
-------------------------------------------------------------------------------------------------------------------------------
We Have Over 10 Years in Manufacting Magnetic/None-Magnetic Insulation Laminte, Slot Wedge, Insulation Tube, Fiberglass Varnish Cloth, Thermal Expansion Sheet, Insulation Varnish, Mica Tape and Processed Machining Components.
--------------------------------------------------------------------------------------------------------------------------------
We have passed ISO 9001-2000 and got our own patent technology, Xi'an city Science and Technology Bureau identified us as "High-Tech Enterprises"
----------------------------------------------------------------------------------------------------------------------------------
Our Business Scope Is All Over The World, A.O.Smith Is One of Our VIP Customers.
Excellent Service and Operation Team Ensure 100% of Your Profit
FAQ:
(1) Can you give me a discount price?
It is depending on the volume. The larger the volume is, the more discount you can enjoy.
(2) How can I get a sample?
Normally small samples (sizes not larger than 300*300mm) can be sent free of charge and customers just need to bear a little shipping charge, or you can provide your DHL,FEDEX,EMS,UPS courier account number to us. For bigger sizes, it depends.
(3) How can you deal with quality issues that customer feedback after receiving the goods?
1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.
| B asic Information |

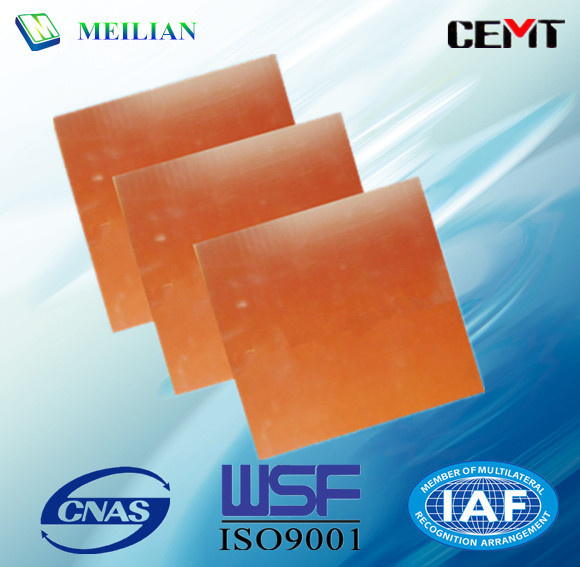

| Product name | Magnetic Electrical Insulation Laminated Sheet |
| Item No. | MJ-347 |
| Brand | MJ |
| Material | BMI resin and Alkali free fiberglass cloth |
| Grade | Grade F |
| Technical Specification |
| Density | ≥1.7g/cm3 |
| Appearance | Natural color Dark brown, surface smoothly
without bubble and impurities, no flow marks,
Cutting edge without fault and separation |
| Sheets Thickness | 0.1-50mm |
| Size | ≥1220x980mm |
| Formation methods | High temperature and high pressure |
| Thermal stability in 24h | ≥200°C |
| Water absorption | ≤1.0% |
Flexural strength perpendicular to layer
at room temperature
at high temperature 180±2°C |
≥400 MPa
≥200 MPa |
| Compressive strength, perpendicular to layer | ≥350 Mpa |
| Impact strength parallel to layer (Charpy method) | ≥37 KJ/m 2 |
| Tensile strength | ≥280 Mpa |
Insulation resistance parallel to the layer
At room temperature
Immersing in water for 24h |
≥1.0×10 4 MW
≥1.0×10 2 MW |
Electric strength,perpendicular to the layer(at 90°C±2°C oil.)
0.5-1.0mm
1.1-2.0mm
2.1-3.0mm |
≥14.5 MV/m
≥12.4 MV/m ≥11.6 MV/m |
| Dissipation factor Under 1MHz. | ≤0.05 |
| Voltage resistance parallel to layer(at 90°C±2°C oil for 1min) |
≥40 KV |
| Combustibility | HB class |
Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.
We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.
Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.
We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".
The spirit of our company is: "Good Reputation, Best Products, Wonderful Services
