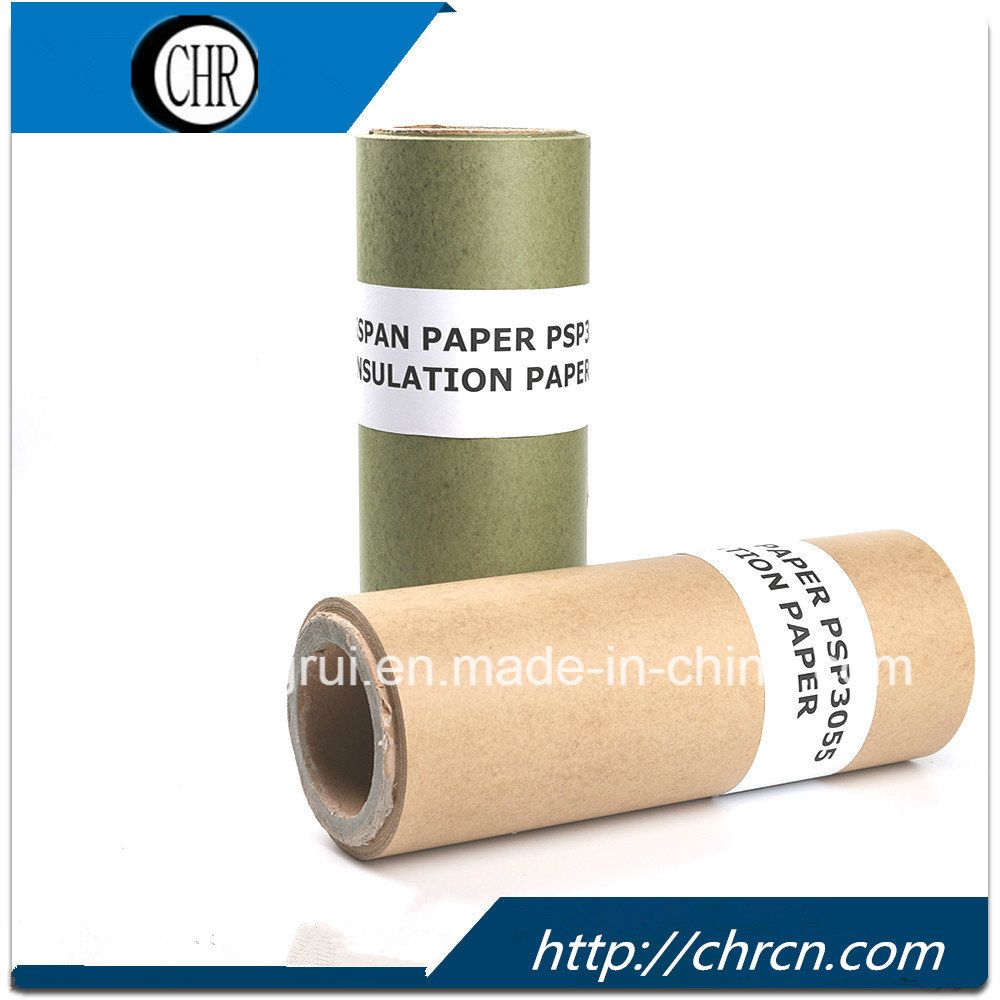

Electric Insulation Using Cable Paper

Name: Electric Insulation Using Cable Paper
Brand: all-electronics-online.com
SKU: 703395612
Availability: InStock
Rating: 4.4 (56 reviews)

Price:	US $ 1.5kg
Trade Terms:	FOB,CFR,CIF
Min Order:	1000kg
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	0.08mm, 0.13mm, 0.17mm
Markets:	South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Thickness:	0.08mm,0.13mm,0.17mm
Width:	625mm,960mm,25mm,40mm
Rated Voltage:	Below 35 Kv
Using:	Electrical Insulation
Application:	Insulating Varnish
Type:	Insulation Paper
Chemistry:	Inorganic Insulation
Material:	Paper
Maximum Voltage:	20KV~100KV
Thermal Rating:	Below 35
Color:	Grey
Brand:	Chr

Product Description

1 .Description: power cable paper is manufactured from 100% high quality sulfated insulating wood pulp without sizing or used fillers. This paper is highly refinded and cleaned to ensure uniform thickness and formation.It is allowed to exist for little Pinholes, Undispersed fiber bundles and Tiny defects if it doesn't effect to meet the safety requirements in the manufacturing and applications of transformers and cables.

It belongs to be a high-voltage grade insulating paper.

This paper has stable electrical and chemical properties, and high physical strength to meet the exact requirements of our valued customers.

2.Specifications

1).Thickness: 80um 130um 170um and 200um

2).Width: 470mm, 625mm, 960mm, and1000mm

3).Density: 78,100,130,145,170g/m2

4).roll diameter :680mm-730mm

3.Color: Nature, brown and others.

4.Usage:it is used for wire, cable, liner insulation, tank insulation, transformer insulation and internections. It is suited for making electromagnetic wire of transformers and other electrial insulating equipments

Test project		Unit	AQL Value	Test Value	Test Mode
Thickness tolerance		%	±10	-1.6	JB/T8989.2-1999 IEC60641-2.1979
Density		g/cm3	1.00-1.20	1.08
Tensile strength	Length-wise	N/mm2	≥80	88
Tensile strength	Cross-wise	N/mm2	≥40	43.6
Elongation	Length-wise	%	≥1.5	3.2
Elongation	Cross-wise	%	≥7.0	7.4
Shinkage	Length-wise	%	≤1.0	0.92
	Cross-wise		≤1.5	1.4
	Thickness-wise		≤7.5	7.2
Ash content		%	≤1.0	0.63
PH Value of aqueous extract		-	6.0-9.0	7.1
Conductivity of aqueous extract		ms/m	≤8.0	4
Oil absorption		%	≥10	11.6
Electric strength in oil		KV/mm	≥55	66.9
Moisture		%	≤8.0	7.8

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
