Electric Lifting System Mini Electric Hoist Use Wireless Remote Control

Prod Model:	F21-18S
Color:	Red
Control Distance:	up to 100 M
Speed:	Single Speed
Application:	Crane, Truck
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	>100m
Battery Type:	AA Battery
Voltage:	High and Low Voltage Are Both Ok
Material:	Glass Fiber Reinforced Nylon-6

Product Description

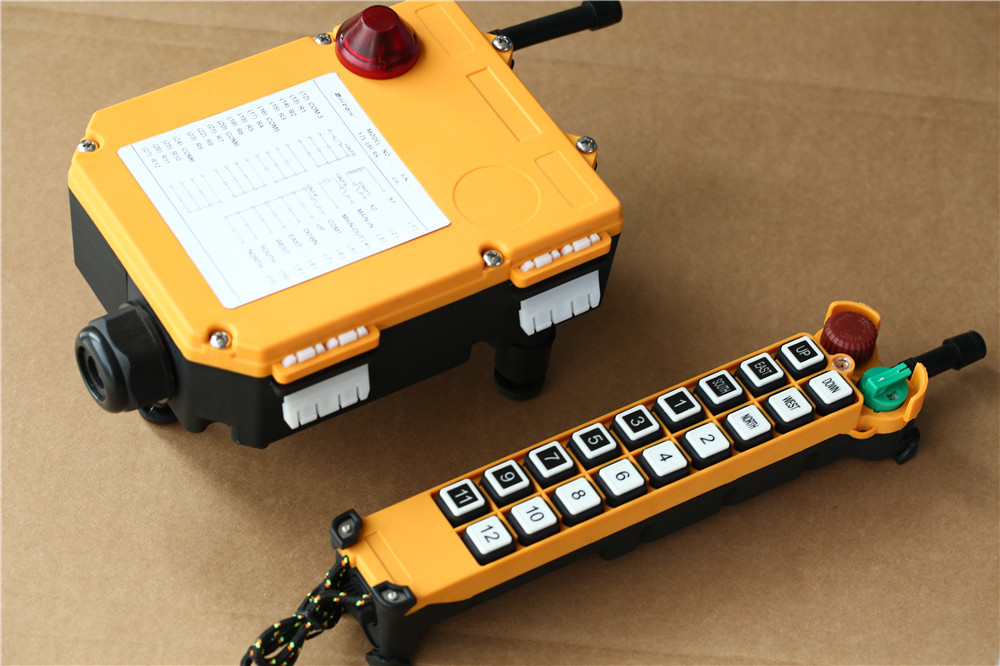

F21-18S Industrial wireless radio remote control for crane


Standard Configuration:

Transmitter*1( with strap),
Receiver*1,
Receiver with 1m Cable,
Operation and maintenance manual *1


Technical Specification:


Unique I.D.Code	2  hundred million
Numbers of Buttons	18 Single Speed buttons,1 MUSHROOM button
Button Marking	english + number
Transmitter Power Supply	two 1.5v Batteries(AA size) ( up to 3 months usage)
Receiver Power Supply	AC380V/220V/110V/48V/36V/24V/12V OR DC12V
Relays	18 Relays control Functions,1 relay control EMS
Output relays	5Amp Omniseal Relays(AC250V/10A relays,10Amp fuse)
Operating Frequency	310.0325-331.1650MHz(VHF)
Channel Spacing	0.2675MHz
Working Temperature	-35ºC~ +85ºC
Interface	Cable Output
Protection Degree	IP65
RF Power	<10DBm
Channel	80CH

Features:

18 Single Speed Push buttons,1 Mushroom button and 1 rotate switch.
Control points up to 18.
With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
Set the internal functions by computer interface.
UP/DOWN,EAST/WEST,SOUTH/NORTH,1/2,3/4,5/6,7/8,9/10,11/12 push buttons can be set .

ordinary,jump strokes,mutural inhibition or not.
