Electric Micro Limit Switches

Electric Micro Limit Switches
Price: US $ 5/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: Electric micro limit switches
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Advantage: High Precision, High Reliability
Character: Double Circuit
Certificates: CCC UL CE
Contact: Spdt COM No Nc
Terminal: Standard Screw
Operation Force: 100g 160g
Mounting Size: 25.4mm
Color: Black

Product Description

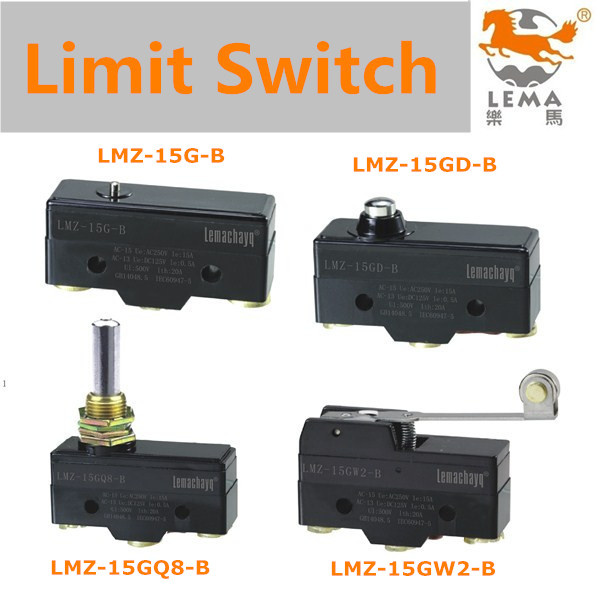

Electric micro limit switches

LZ15 series micro switch is also called general purpose switch, basic switch, and snap action switch. The
Switches are widely used in the automation control, which could be applied to move machine. LZ15 series micro switch has many actuators for different kinds of environment, load current up to 15A under 250VAC.

Features:
Various actuators for different kinds of operating environment
15A load current
High precision
Standard screw terminals
Long mechanical life
Rated voltage       Resistive load        Inductive load
Resistive load  Lamp load  Inductive load  Motor load
  NC    NO   NC    NO    NC    NO    NC    NO
125 VAC  15(10)A  3A  1.5A     15(10)A   5A   2.5A
250 VAC  15(10)A  2.5A 1A     15(10)A   3A 1.5A
500 VAC  10A 1.5A  0.8A     6A   1.5A 0.75A
8 VDC 15A   3A  1.5A     15A  5A  2.5A
14 VDC 15A   3A  1.5A     10A  5A  2.5A
30 VDC 6A   3A  1.5A    5A  5A  2.5A
125  VDC 0.5A   0.5A  0.5A     0.05A 0.05A 0.05A
250  VDC 0.25A   0.25A  0.25A     0.03A 0.03A 0.03A

Initial contact resistance,max. 15mΩ
Initial insulation resistance ( At 500V DC) min.100mΩ
Dielectric strength Between contacts of some polarity 1000Vrms,50/60Hz for 1min
Between each terminal and other exposed metal parts 2000Vrms,50/60Hz for 1min
Between ground and each terminal 2000Vrms,50/60Hz for 1min
Max.shock resistance Mechanical durable 1000m/s2
Malfunction 300m/s2
Vibration resistance 10-55Hz , 1.5mm double amplitude
Expected life(Min operations) Mechanical 20000000
Electrical 500000
Ambient temperature -25 to +85 °C
Ambient humidity  35%to 85%RH
Operating frequency Mechanical 240 times/min
Electrical 20 times/min
Operation speed   0.001mm-100cm/s
Protection degree IP00
Weight About 22g to 58g


Originated in 1981, this company is specialized in research and development, the micro-switch, the waterproofswitch, the power source plug, the protector, the float spacing controller series product, which are suitable for low voltage electric appliance, domestic electric appliance, instrument measuring appliance electron toy with AC 50Hz, voltage 250V and below, DC voltage 220V and below. The company is located in the economic development zone of Yueqing. The first stage factory building covers an area of 11 Mou with a construction area of 4566 square meters, the second stage covers an area of 42 Mou now, which will put into building soon. The company has a rich technical force, and the key team of the Hi-Tech who dare to innovate, dare to open up. The company has achieved"LEMA"brand to invigorate the Chinese nation with the indication of "setting up the factory with quality, prospering the factory with science and technology"for more than 20 years. Our company has past management system authentication ISO9001-2000 and ISO14001-2004, and the products have won the CE certification, U. S. A. UL authentication, CCC authentication, and SGS checkout. The products are far sold to countries such as Amercia and Europe, Southeast Asia, etc. We could like to offer the best quality, competitive price and best after-sale service to all of our users, " seeking the bosom friends of the four seas, making the friend all over the world", wish to make progress together with the domestic and international friends to achieve more glorious future
