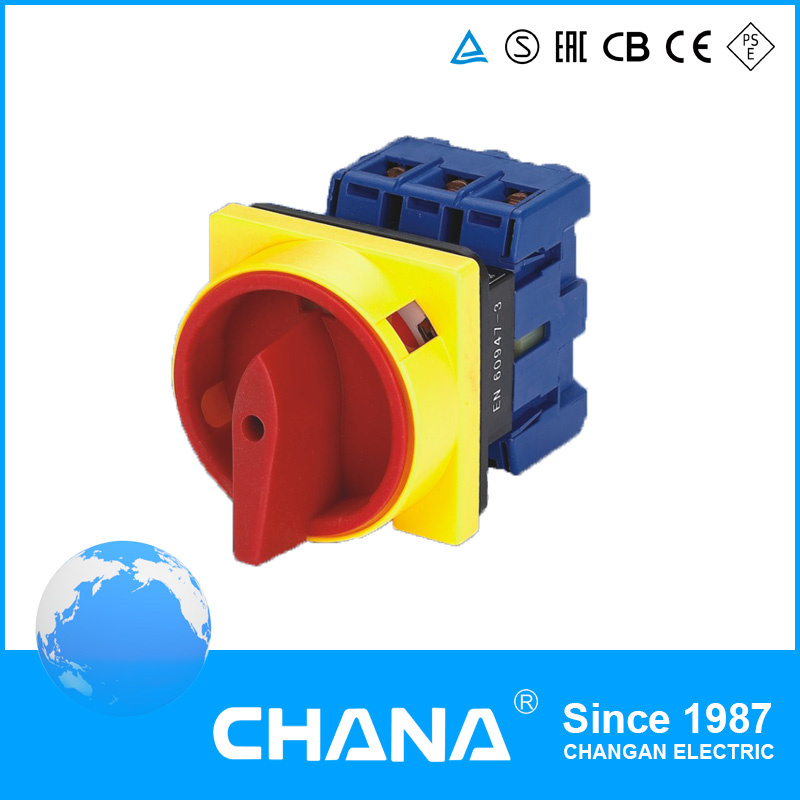

Electric Power 50Hz Isolator AC 240V 80A Isolation Switch

Prod Model:	LW30-80
Certification:	Ce, RoHS
Surface Treatment:	Electroplating
Color:	Red
IP Rating:	IP68
Material:	Nylon
Export Market:	Global
Type:	Straight Head

Product Description

LW30 Isolation Switch

1. Application

LW30 series rotary switches applied to circuits of AC 50Hz with working voltave up to 440V and rated working current up to 100A. LW30 is suitable to control: Air-conditioner, water pump and ventilating equipments, and AC motors with small power...
LW30 series rotary switches have six current ratings: 20A, 25A, 32A, 40A, 63A, 80A and 100A. LW30 series has the finger protection terminals, which offers an extra advantage. LW30 series switches has Larger insulation distance, quick disconnectinvg response. And is a good choice For DC circuits. LW 30 has additional contact which enable us to install the contact separetely.
LW30 series rotary switches switches comply with: GB/T 14048.3, and IEC 60947-3.

2. Specification

1. Current: 20A 25A 32A 40A 63A 80A 100A
2. Plate and handle type can choose
3. Number of poles: 3P 4P
4. KRAUS&NAIMER standard

Ambient temperature Do Not exceed 40° C and the average temperature, measured over a
Period of 24 hours, Do Not exceed 35° C.
Ambient temperature should not be below -5° C.
Should not be installed over 2000m above sea level.
The humidity should not exceed 50% when the ambient temperature is 40° C and higher
Humidity is allowed for lower temperature.

3. Installation Conditions

A clean environment is required.
Please follow our manual.


Description

LW30-25(20)

LW30-32

LW30-40

LW30-63

LW30-80

LW30-100

Rated thermal current

ITH

A

25(20)

32

40

63

80

100

Rated working voltage

LE

V

240

440

240

440

240

440

240

440

240

440

240

440

Ie/Pe

Ie/Pe

AC-21A

A/KW

20/-

20/-

32/-

32/-

40/-

40/-

63/-

63/-

80/-

80/-

100/-

100/-

AC-22A

A/KW

20/-

20/-

32/-

32/-

40/-

40/-

63/-

63/-

80/-

80/-

100/-

100/-

AC-23A

A/KW

15/4

15/7.5

22/5.5

22/11

30/7.5

30/15

43/11

43/22

57/18.5

57/30

70/22

70/37

AC-3

A/KW

11.7/3

11.7/5.5

15/4

15/7.5

22/7.5

22/11

36/11

36/18.5

43/15

57/30

57/18.5

57/30



Description	Dimensions(mm)			Installation(mm)
	K	Lmin	Lmax	E	F	D1	D2
LW30-20	50	32	150	48	48	Φ22	Φ4.2
LW30-25	50	32	150	48	48	Φ22	Φ4.2
LW30-32	50	32	150	48	48	Φ22	Φ4.2
LW30-40	61	32	150	48	48	Φ22	Φ4.2
LW30-63	61	32	150	48	48	Φ22	Φ4.2
LW30-80	68	32	150	48	48	Φ22	Φ4.2
LW30-100	68	32	150	48	48	Φ22	Φ4.2

4. Dimension(mm)
