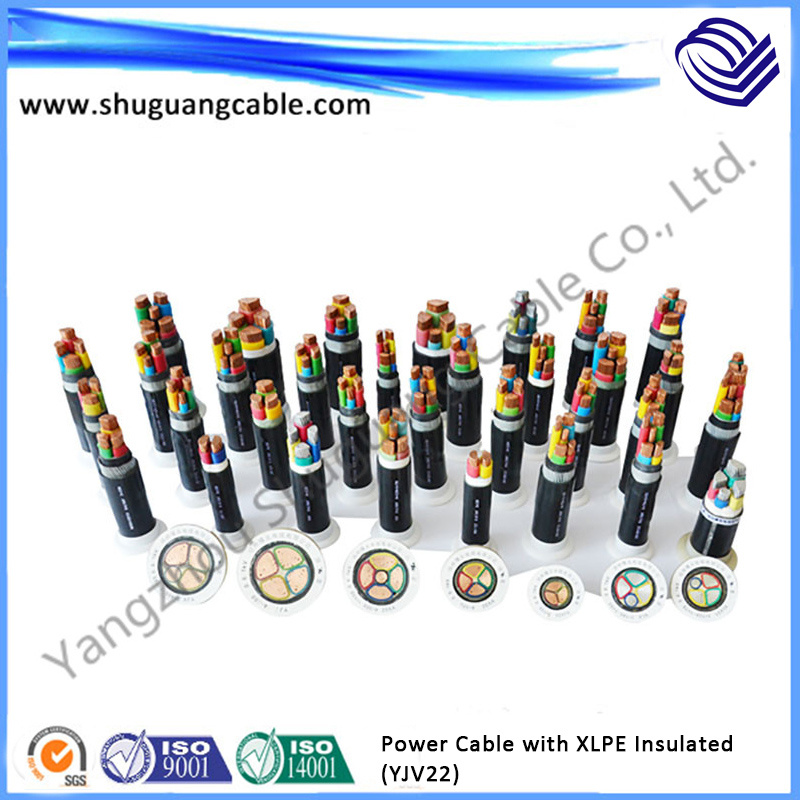

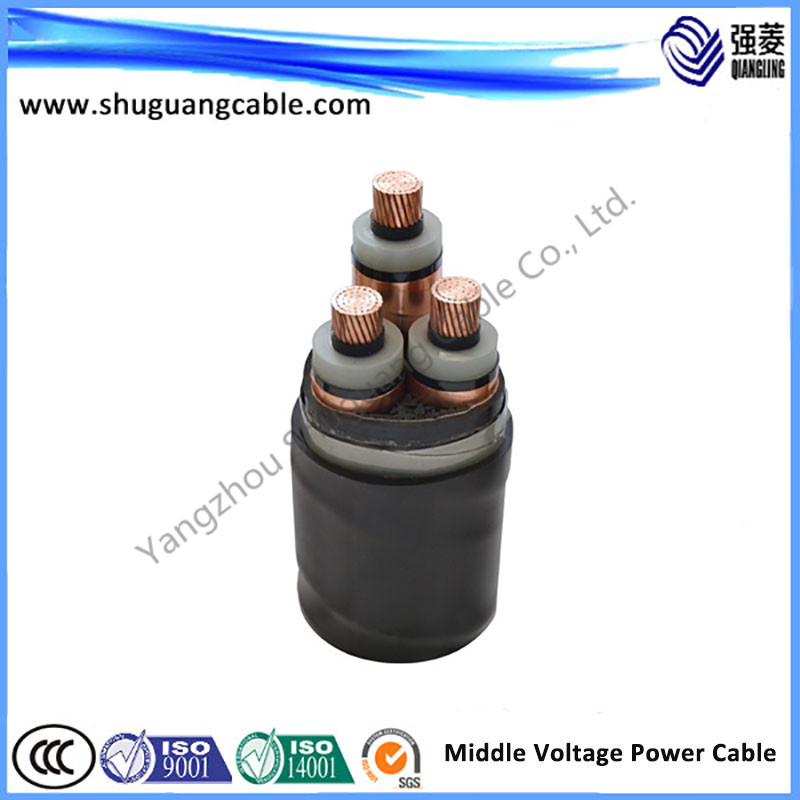

Electric Power Copper Cable with PVC Sheathed
| Price: |
US $ 120/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
YJV,YJLW03,GG,FF,FG,YC,BPYJVP,NH-YJV22,OPLC-YJV32 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
1-220kv |
| Insulation: |
XLPE, PVC, Epr, G, F |
| Armored Material: |
Steel Tape, Steel Wire |
| Screen Material: |
Cu Wire, Cu Tape, Al-Plastic Tape |
| Fire Resistance: |
Available |
| Flame Retardant: |
Available |
| Waterproof: |
Available |
| Cold Proof: |
Available |
| Low Smoke Halogen Free: |
Available |
| Applied Standard: |
IEC 60840, IEC 62067 |
| Application: |
Car |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Certification: |
IEC |
| Insulation Material: |
XLPE, PVC, Epr, G, F |
| Sheath Material: |
PVC, PE, CPE, G, F |
| Wire Core Material: |
Copper |
| Model: |
Yjv, Yjlw03, Gg, FF, Fg, Yc, Bpyjvp, Nh-Yjv22 |
| Brand: |
Qiangling |
Product Description
Electric Power Cable With PVC SheathStandard implementedThe product conforms to the GB/T 12706,IEC 60502,IEC 60840 and IEC 62067. Its flame retardant property has reached the corresponding requirement in GB/T18380.3-2001; Burning smoke intensity (luminousness) is up to the low-smoke standard of GB/T17651-1998; Burning gas lorrosion intensity is in conform to the standard requirement in GB/T17650-1990; The luminousness of burning low halogen and low smoke cable and the liberation of HCl active gas is conform to the standard requirement of Q/321084KLA 051-2004.
Service characteristicFor normal use of halogen free low smoke cable, the permitted longtime operating temp. Of conductor is 90 deg. C; For short circuit (the longest time is 5 seconds), the max temp. Of conductor should not exceed 250 deg. C. For low halogen low smoke cable, the permitted longtime operating temp. Of conductor should not exceed 70 deg. C; For short circuit (the longest time is 5 seconds), the max temp. Of conductor should not exceed 160 deg. C.
The lowing temp. For laying cables is 0 deg. C. As for shortest bend radius: For cables without sheath, it should not be shorter than 10 times of outer diam; For cables with sheath; It should not be shorter than 15 times of outer diam.
| Specification |
| Types | Core No. | Rated Vpltage(kV) |
| Cu Core | Al Core | 1.8/3 | 3.6/6 6/6 | 6/10 8.7/10 | 8.7/15 12/20 | 18/20 26/35 |
| Cross Section (mm2) |
| YJV YJY YJV32 YJV33 YJV42 YJV43 | YJLV YJLY YJLV32 YJLV33 YJLV42 YJLV43 | 1 | 10~800 10~1000 10~1000 10~1000 10~1000 10~1000 | 25~1200 25~1200 25~1200 25~1200 25~1200 25~1200 | 25~1200 25~1200 25~1200 25~1200 25~1200 25~1200 | 35~1200 35~1200 35~1200 35~1200 35~1200 35~1200 | 50~1200 50~1200 50~1200 50~1200 50~1200 50~1200 |
| YJV YJY YJV22 YJV23 YJV32 YJV33 YJV42 YJV43 | YJLV YJLY YJLV22 YJLV23 YJLV32 YJLV33 YJLV42 YJLV43 | 3 | 10~300 10~300 10~300 10~300 10~300 10~300 10~300 10~300 | 25~300 25~300 25~300 25~300 25~300 25~300 25~300 25~300 | 25~300 25~300 25~300 25~300 25~300 25~300 25~300 25~300 | 35~300 35~300 35~300 35~300 35~300 35~300 35~300 35~300 | 35~300 35~300 35~300 35~300 35~300 35~300 35~300 35~300 |
| Nominal Cross Sectional (mm2) | The Largest D.C. Resistance of Conductor at 20ºCΩ/km | Nominal Cross Sectional (mm2) | The Largest D.C. Resistance of Conductor at 20ºCΩ/km | Nominal Cross Sectional (mm2) | The Largest D.C. Resistance of Conductor at 20ºCΩ/km |
| Cu Core | Al Core | Cu Core | Al Core | Cu Core | Al Core |
| 1.5 | 12.1 | - | 35 | 0.521 | 0.868 | 240 | 0.0754 | 0.125 |
| 2.5 | 7.41 | 12.1 | 50 | 0.387 | 0.641 | 300 | 0.0601 | 0.1 |
| 4 | 4.61 | 7.41 | 70 | 0.268 | 0.443 | 400 | 0.047 | 0.0778 |
| 6 | 3.06 | 4.61 | 95 | 0.193 | 0.32 | 500 | 0.0366 | 0.0605 |
| 10 | 1.83 | 3.08 | 120 | 0.153 | 0.253 | 630 | 0.0283 | 0.0469 |
| 16 | 1.15 | 1.91 | 150 | 0.124 | 0.206 | 800 | 0.0211 | 0.0367 |
| 25 | 0.727 | 1.2 | 185 | 0.0991 | 0.164 | 1000 | - | 0.0291 |
| Serial No. | Item of Property | Rated Voltage U0/U kV |
| 1.83/3 | 3.6/6 | 6/6 6/10 | 8.7/10 8.7/15 | 12/20 | 18/20 18/30 | 21/35 | 26/35 |
| 1 | Partial discharge test 1.73U0 should not be greater than | / | 10 | 5 |
| 2 | Industrial frequency 5 min voltage endurance test(kV) | 6.5 | 12.5 | 21 | 30.5 | 42 | 63 | 73.5 | 91 |
| 3 | 4h industrial frequency test(kV) | 7.2 | 14.4 | 24 | 34.8 | 48 | 72 | 84 | 104 |
| 4 | Heat extension test(200ºC 15 min 20N/cm) under pressure load extension rate max% Permanent extension rate max after cooling% | 175/15 |
| 5 | Partial discharge 1.5U0 after three times of curing and heat cycling should not be large than(pC) | 20 | 5 |
| 7 | Flame-retarding property test | Conforms to the standard of IEC60 332-2C |
Yangzhou Shuguang Cable Co., Ltd, was founded in 1985, a specialized wire and cable manufacturer lies in the northern suburb of famous and beautiful Yangzhou city with long history and culture.It is a "State-Grade Key High-Tech Enterprise", one of the "Top Hundred Chinese Electronic Information Enterprises", "Grade AAA Credit Enterprise", one of the enterprises who "Respects Contract and Keep Faith in Jiangsu province, "Excellent Provincial Private-Owned Enterprise", "Provincial Enterprise with Harmonious Labor Relations", and it obtained the first "Mayor Quality Award" in 2010.The series of "QIANG LING" branded cable products were awarded the "State Quality Inspection Exemption" and "Jiangsu Provincial Famous Brand".

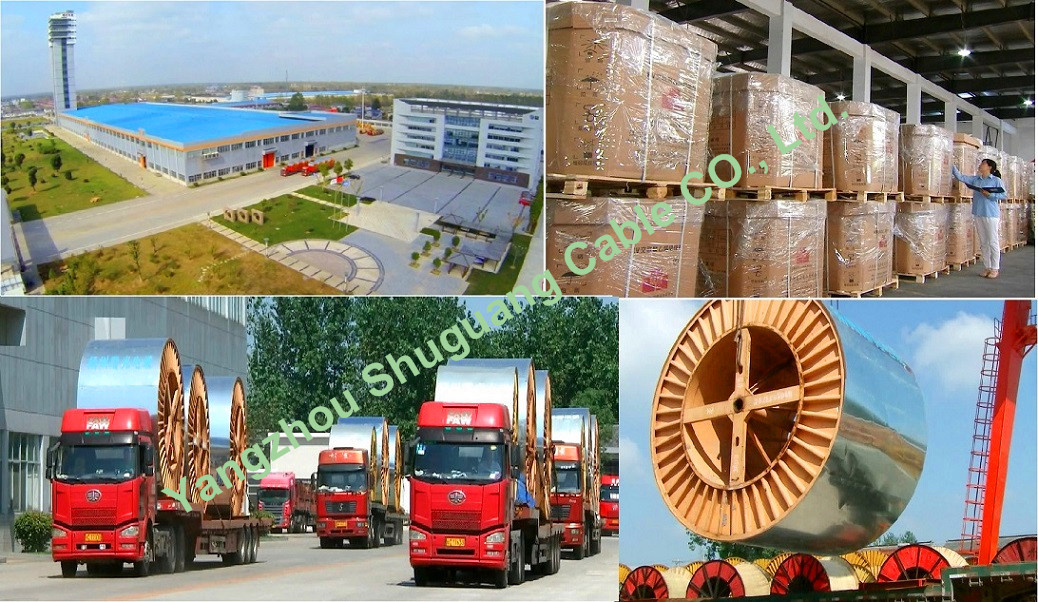

With 92,000 square meters structure area in total 280,000 facility square meters, RMB 780 million Yuan self-owned net assets and nearly 800 workers and staffs, Shuguang took lead into passing ISO9001 Quality Management System in 1996, and successively passed Products Safety Certification, ISO14001 Environmental Management System, GB/T28001 Occupation Health & Safety Management System and ISO10012 Measurement Management System.We standardized our work process by adopting ERP Management System.
We provide more than 20 series of products including:Up to 500kV and 220kV cross-linking power cables, plastic cable, overhead insulated wire, shielded control and computer cable, irradiation cross-linking cable, Grade 1E Class K3 cable for nuclear power station, mine safety cable, rubber cable, wind energy cable, direct current cable, compensation cable, high temperature resistant cable, communication optical fiber cable, etc.Which are extensively applied in power, metallurgy, petro-chemical, energy, traffic, and telecommunication systems successively served in several domestic and overseas projects such as State Grid, Southern Power Grid, Three Gorge of Yangtze River, Datang Togtoh Power Station, Qinshan Nuclear Power Station, Sanmen Nuclear Power Station, CNPC Pengzhou 1 Million Tons/Years Ethylene Project, Changqing Oilfield, Changchun Rail Transporation, Zhongnanhai Substation, railway from Beijing to Tibet, Wuhan Iron and Steel Corp., SINOPEC Wuhan 800 Thousand Tons/Years Ethylene Project, BASF-YPC, Tongli ±800kV Converting Station, Southern Anhui 1000kV Substation, Sino-Burma Oil-Gas Pipeline Project, etc.The quality and services of our products received consistent praises from the clients and market.
With 8 Ult-high & High voltage cross-linking cable production lines, 2 conductor stranding production lines and full set of inspection equipment imported from Finland, Germany, America, UK, Swiss, Austria and other developed countries, Shuguang Cable drives ahead in the industry of wire and cable manufacture.After a long period of recruitment and education, we have formed up an excellent technical and management team which can promote the sustainable development of our company.We are vigorously strengthening the ability of research and development and innovation through enhancing the relationship and cooperation with colleges, universities and scientific and research institutions.We have successively assumed 79 provincial and above science and technology projects, including 8 National Important New Products projects, 13 National Torch Program and Spark Program projects, 3 national Innovation Fund projects and we also participated in drafting and revising of 24 national and industrial standards in cable industry.
"Striving cohesively, devoting selflessly, keeping progress with times and challenging the future" has been keeping as the enterprise culture to Shuguang people for years.During the sustainable development, Shuguang will further play full role of our advantages, by "Market Orientation, Customer Satisfaction, Innovation for development and Lean Management for benefit".Forge ahead and keep surpassing, we will always make contributions positively to harmonious society construction.
