Product Description

Suspension Clamp:The Helical Suspension Sets are intended for connecting OPGW/ADSS Cables and poles, reducing static stress to the OPGW Cables at support points and cushioning against the dynamic stress of aeolian vibration, Providing protection against cable bending stress, there is no other stress concentration, so that the fiber optic does not produce extra loss in the cable after installation.

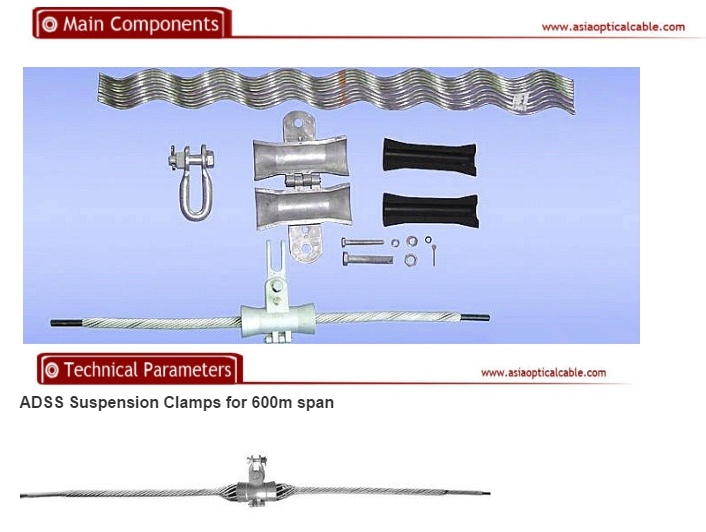

Structure and Raw Material:

 Housing clamp----Hot dipped galvanized steel. Anchor Shackle is connected with fastener clamp on tensile pole (or tower).

Housing Clamp------It is made of cast aluminum alloy, which is stable, better anticorrosive in areo and mechanical performance.

 Rubber Insert------It is made of high-class rubber, compounded for resistance to ozone, wheathering extreme high and low temperature variations and compression set.

 Bolt, Nut, Split Washer, Lock Pin------Hot dipped galvanized.

 Flat Washer------Electric power standards

 Anchor Shackle------Electric power standards

 Outer Protection Rods ------High strength aluminium alloy for wheathering extreme high and low temperature variations, compression set, water resistance and high hardness.

 Inner Protection Rods------the same to Outer Protection Rods

 Connection Hardware----- Anchor Shackle,Clevis Screw, UB Hang Plate,ZH Hang Plate, Electric Power standards.

Application Guide:

1.It is designed to connect corner/elevation angel smaller than 25°Pole and the Cable, a unit of Suspension Sets per pole.

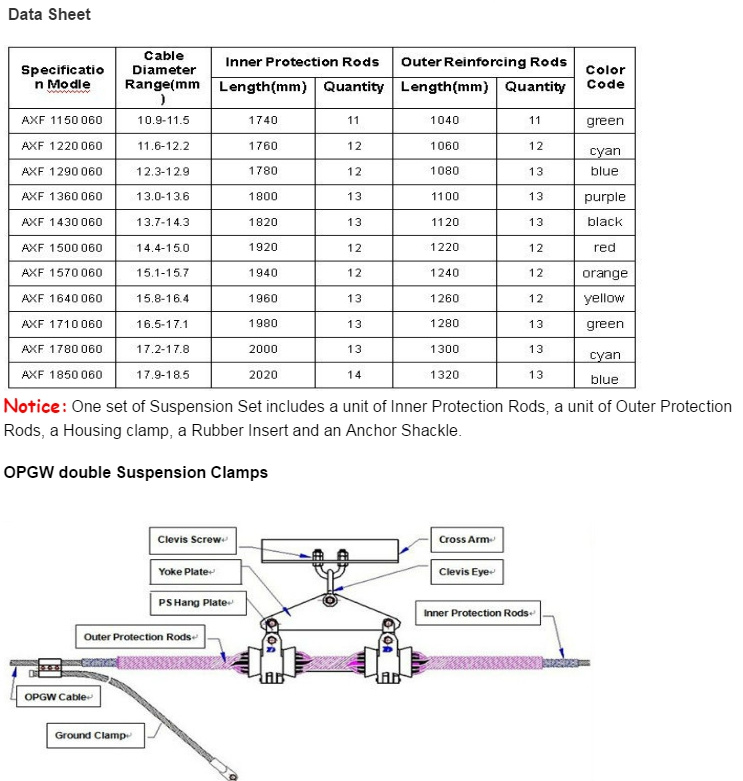

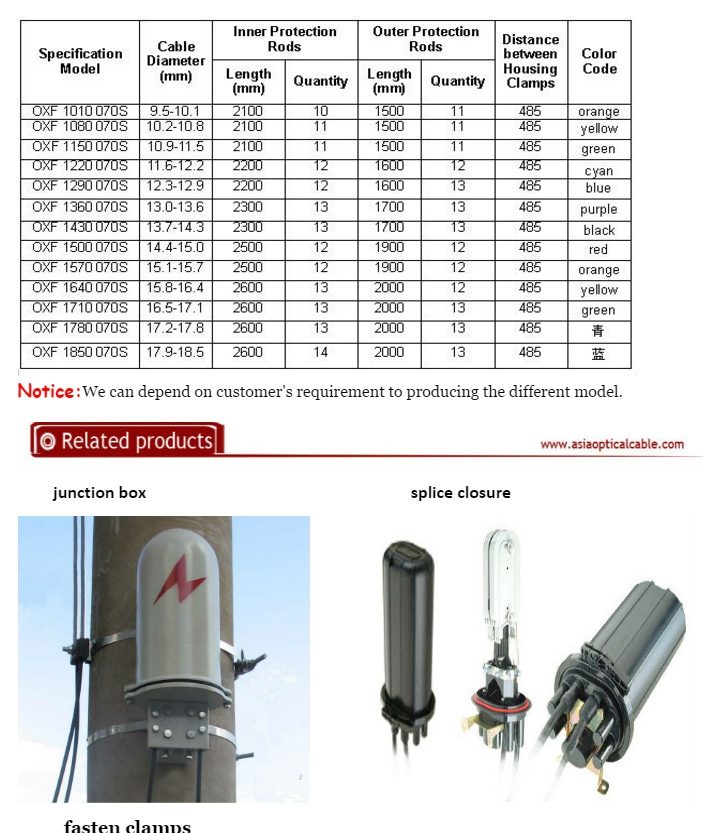

2. Select the specification model corresponding to the appropriate cable range, Load-weight or Span Length.
3.It is suitable to OPGW/ADSS Cables.
4.Select different connection hardware matching the Suspension Set according to the actual line.
