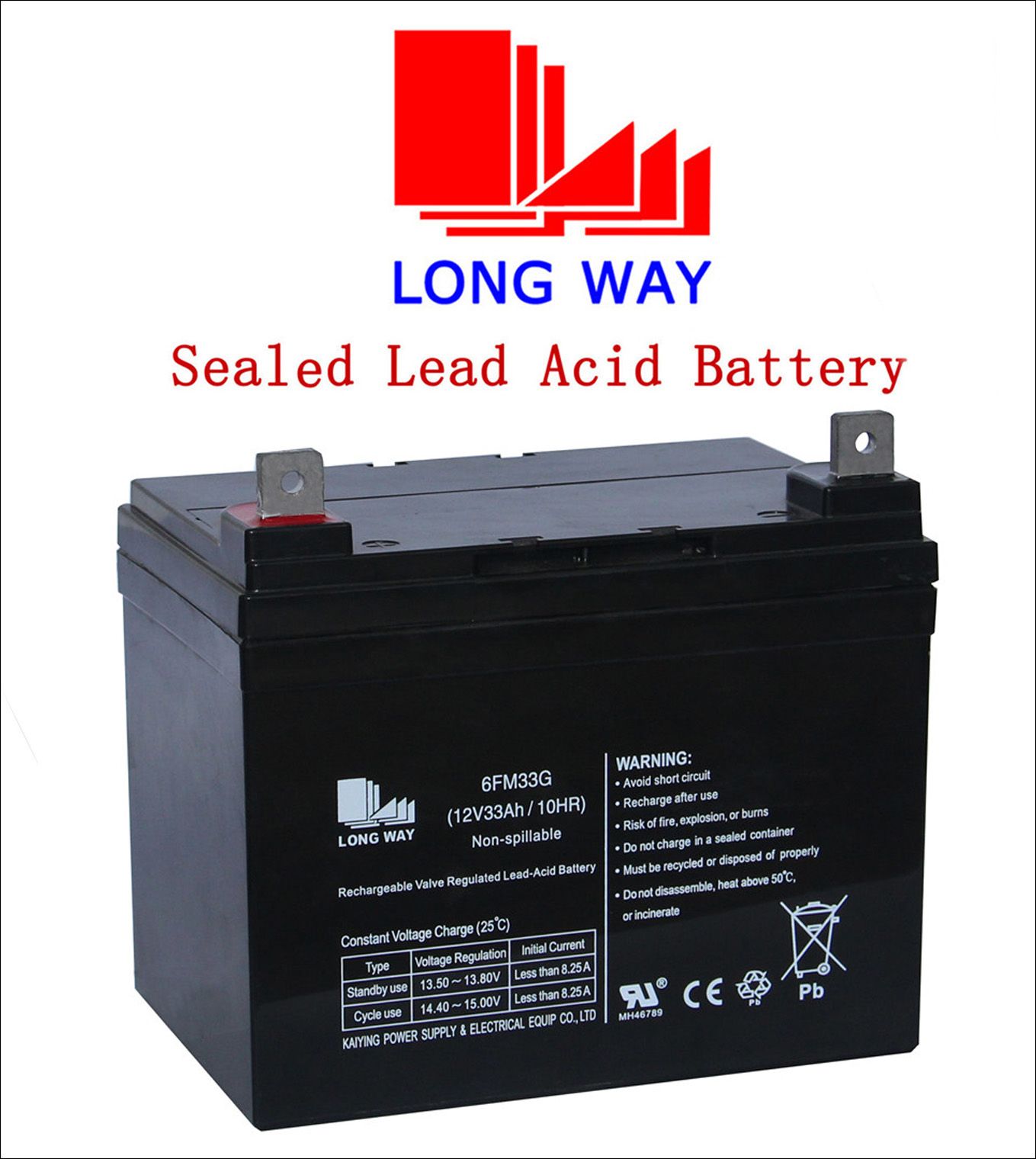

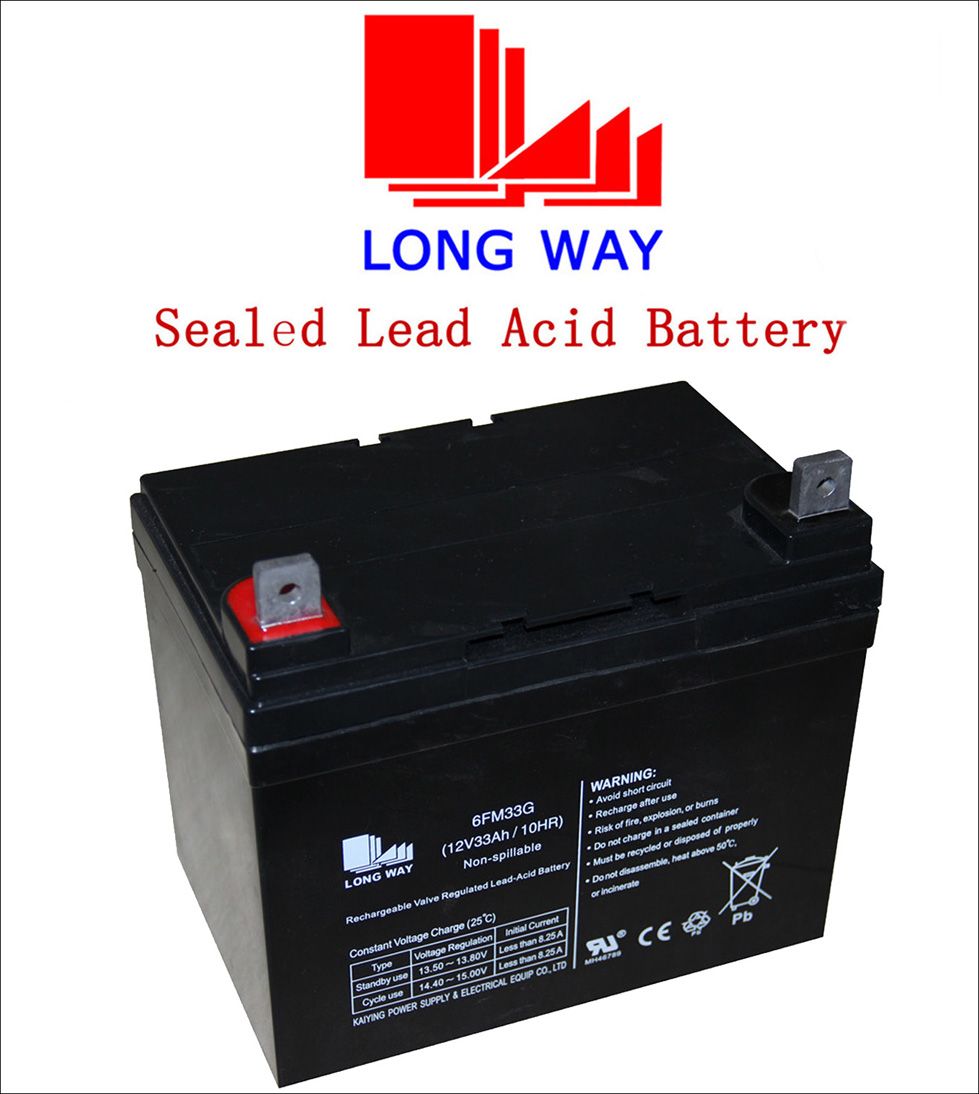

Electric Tool Sealed Lead-Acid VRLA Battery
| Price: |
US $ 32.9-39.9/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
6FM33 (12V33ah/10hr) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Grey or Black or Others |
| Terminal: |
Nb |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electrical Tools |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Medium Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
LONGWAY 12Volt 33ah switch tripping sealed lead acid vrla battery LONGWAY lead acid battery used for UPS / AGM / VRLA / SLA maintenance-free battery
I. Power storage Solar & Wind System (Deep Cycle Battery)
II. Standby use UPS battery, Emergence & Alarm, Lighting & Security, Sounding, etc...
III. Telecommunication and stationary lead acid battery.
6V - 1.3Ah to 220Ah used for emergency lighting and alarm lighting and sound application.
12V - 0.8Ah to 250Ah used for power storage and backup for standby power & deep cycle use.
2V - 50Ah to 3000Ah used for solar power systems and telecommunication are using all self-made high quality and thick deep cycle plates.Product descriptions
*Model: 6FM33 (12V33AH/10HR)
*Size: 196*130*162(Total Height: 180) MM
*Weight: Approx.(10.2±3%) kg (22.49lbs)*Terminal: NB/B/F9 *Packing Qty.:: 1 PCS/CTN
*Lead-Time: 15-20 Days after confirming the order For One Container
Self Discharge:LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored for more than 6 months at 25°c(77ºF). Self-discharge ratio less than 3% per month at 25°c(77ºF). Please charge batteries before using.
Normal Voltage :12V
Capacity :33Ah@10Hr-rate to 1.80V per cell@25ºC
Maximum Discharge Current: 330A(5sec)
Internal Resistance: Approx. 9mΩ full charged @25ºC
Operating Temperature Range Discharge: -15ºC~50ºC
Charge: -15ºC~40ºC
Storage: -15ºC~40ºC
Nominal Operating Temperature Range :25ºC±3ºC
Float Charging Voltage: 13.7~13.9VDC/unit Average @25ºC
Maximum Charging Current : 8.25A
Equalization and Cycle Service: 14.4V~15.0VDC/unit Average @ 25ºC
Container Material :ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request *Application
Lighting system,Security system;
Electric toy,Medical equipment,Telecommunication system;
Power systems,UPS,Electric tools
*General Features:
Maintenance free;
Convenient for installation;
Safety and no leakage;
Excellent recharge and discharge performance;
Low self-discharge rate;
UL approval
*Designed Service Life: 5 years
*warranty: 1 years
*OEM Acceptable4)Our certificate

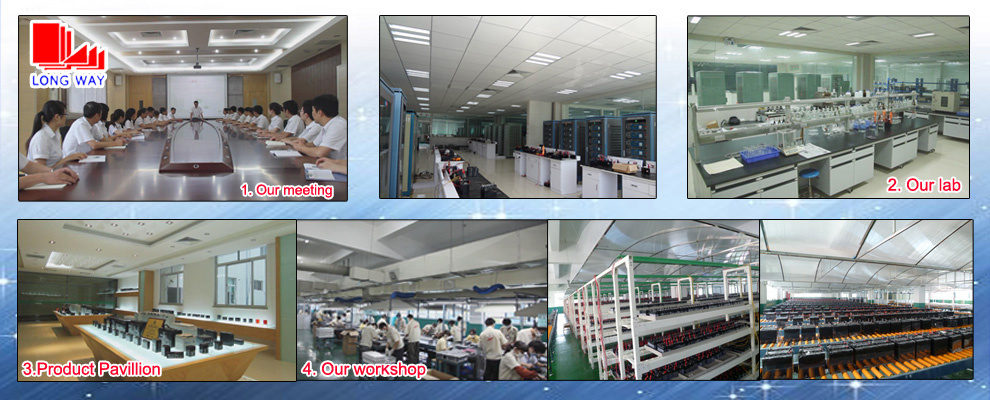

5)Our factory photo
Excellent quality and reasonable price, welcome to contact us.| Standby LONGWAY 12Volt Standard Series batteries |
| Battery Model | Nominal Voltage (V) | Nominal Capacity (AH) 20HR | Length | Width | Height | Total Height | Weight(±3%) | Terminal |
| In | mm | In | mm | In | mm | In | mm | lbs | Kg | Type |
| 6FM1.2 | 12 | 1.2 | 3.86 | 98 | 1.71 | 43.5 | 2.05 | 52 | 2.28 | 58 | 1.26 | 0.57 | F1 |
| 6FM2T | 12 | 2 | 5.94 | 151 | 0.79 | 20 | 3.54 | 90 | 3.54 | 90 | 1.37 | 0.62 | F1 |
| 6FM2.0E | 12 | 2 | 7 | 178 | 1.38 | 35 | 2.40 | 61 | 2.64 | 67 | 1.87 | 0.85 | F1 |
| 6FM2.2 | 12 | 2.2 | 2.76 | 70.5 | 1.87 | 47.5 | 3.90 | 99 | 4.09 | 104 | 1.7 | 0.77 | F1 |
| 6FM2.4 | 12 | 2.4 | 7 | 178 | 1.38 | 35 | 2.40 | 61 | 2.64 | 67 | 2.1 | 0.97 | F1 |
| 6FM3.2 | 12 | 3.2 | 5.28 | 134 | 2.64 | 67 | 2.34 | 59.5 | 2.60 | 66 | 2.8 | 1.27 | F1/F2 |
| 6FM4 | 12 | 4 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.09 | 1.4 | F1/F2 |
| 6FM4E | 12 | 4 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 2.54 | 1.15 | F1/F2 |
| 6FM4.2 | 12 | 4.2 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.15 | 1.43 | F1/F2 |
| 6FM4.5 | 12 | 4.5 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.31 | 1.5 | F1/F2 |
| 6FM5 | 12 | 5 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.57 | 1.62 | F1/F2 |
| 6FM5E | 12 | 5 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.2 | 1.45 | F1/F2 |
| 6FM5A | 12 | 5 | 5.51 | 140 | 1.89 | 48 | 4.13 | 105 | 4.13 | 105 | 3.66 | 1.66 | F2+F1- |
| 6FM5B | 12 | 5 | 5.94 | 151 | 2.01 | 51 | 3.66 | 93 | 3.90 | 99 | 3.66 | 1.66 | F1 |
| 6FM5.5 | 12 | 5.5 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.86 | 1.75 | F1/F2 |
| 6FM5.5A | 12 | 5.5 | 5.51 | 140 | 1.89 | 48 | 4.13 | 105 | 4.13 | 105 | 3.86 | 1.75 | F2+F1- |
| 6FM5.5B | 12 | 5.5 | 5.94 | 151 | 2.01 | 51 | 3.66 | 93 | 3.90 | 99 | 3.86 | 1.75 | F1 |
| 6FM7 | 12 | 7 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.41 | 2 | F1/F2 |
| 6FM7.2 | 12 | 7.2 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.52 | 2.05 | F1/F2 |
| 6FM7.5E | 12 | 7.5 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.74 | 2.15 | F1/F2 |
| 6FM7.5 | 12 | 7.5 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.85 | 2.2 | F1/F2 |
| 6FM7.5A | 12 | 7.5 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.85 | 2.2 | F1/F2 |
| 6FM7.6 | 12 | 7.6 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.96 | 2.25 | F1/F2 |
| 6FM8E | 12 | 8 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 5.07 | 2.3 | F1/F2 |
| 6FM9 | 12 | 9 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 5.73 | 2.6 | F1/F2 |
| 6FM11 | 12 | 11 | 5.28 | 134 | 3.15 | 80 | 6.34 | 161 | 6.34 | 161 | 9.04 | 4.1 | F24 |
| 6FM12 | 12 | 12 | 5.94 | 151 | 3.86 | 98 | 3.66 | 93 | 3.94 | 100 | 7.17 | 3.25 | F2 |
| 6FM12A | 12 | 12 | 5.94 | 151 | 3.86 | 98 | 3.78 | 96 | 4.02 | 102 | 7.17 | 3.25 | F2 |
| 6FM14 | 12 | 14 | 5.94 | 151 | 3.86 | 98 | 3.78 | 96 | 4.02 | 102 | 8.27 | 3.75 | F2 |
| 6FM15 | 12 | 15 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 10.58 | 4.8 | F4/F8 |
| 6FM17 | 12 | 17 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 11.02 | 5 | F4/F8 |
| 6FM18 | 12 | 18 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 11.9 | 5.4 | F4/F8 |
| 6FM18C | 12 | 18 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 11.24 | 5.1 | F4/F8 |
| 6FM20 | 12 | 20 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 13.23 | 6 | F4/F8 |
| 6FM22 | 12 | 22 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 12.9 | 5.85 | F4/F8 |
| 6FM22E | 12 | 22 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 13.23 | 6 | F4/F8 |
| 6FM24G | 12 | 24 | 6.89 | 175 | 6.54 | 166 | 4.96 | 126 | 4.96 | 126 | 16.76 | 7.6 | F5 |
| 6FM24B/G | 12 | 24 | 6.89 | 175 | 6.54 | 166 | 4.96 | 126 | 4.96 | 126 | 16.77 | 7.6 | F8 |
| 6FM26G | 12 | 26 | 6.89 | 175 | 6.54 | 166 | 4.96 | 126 | 4.96 | 126 | 18.52 | 8.4 | F5/F8 |
| 6FM28G | 12 | 28 | 6.89 | 175 | 6.54 | 166 | 4.96 | 126 | 4.96 | 126 | 19.84 | 9 | F5/F8 |
| 6FM28A | 12 | 28 | 6.5 | 165 | 4.96 | 126 | 6.89 | 175 | 7.01 | 178 | 18.74 | 8.5 | F14 |
| 6FM30 | 12 | 30 | 7.68 | 195 | 5.12 | 130 | 6.34 | 161 | 6.54 | 166 | 20.06 | 9.1 | F15 |
| 6FM33A/G | 12 | 33 | 7.68 | 195 | 5.12 | 130 | 6.34 | 161 | 6.54 | 166 | 24.25 | 11 | F15 |
| 6FM33B/G | 12 | 33 | 7.68 | 195 | 5.12 | 130 | 6.34 | 161 | 6.54 | 166 | 22.49 | 10.2 | F9 |
| 6FM35G | 12 | 35 | 7.68 | 195 | 5.12 | 130 | 6.34 | 161 | 6.54 | 166 | 23.15 | 10.5 | F9 |
| 6FM35A/G | 12 | 35 | 7.68 | 195 | 5.12 | 130 | 6.30 | 160 | 6.30 | 160 | 23.15 | 10.5 | F9 |
| 6FM38G | 12 | 38 | 7.72 | 196 | 6.54 | 166 | 6.93 | 176 | 7.17 | 182 | 28.66 | 13 | F21 |
| 6FM40A/G | 12 | 40 | 7.72 | 196 | 6.54 | 166 | 6.93 | 176 | 7.17 | 182 | 29.76 | 13.5 | F21 |
| 6FM40B/G | 12 | 40 | 7.72 | 196 | 6.54 | 166 | 6.93 | 176 | 7.17 | 182 | 29.76 | 13.5 | F9 |
| 6FM45 | 12 | 45 | 7.72 | 196 | 6.54 | 166 | 6.93 | 176 | 7.17 | 182 | 30.86 | 14 | F21 |
| 6FM50 | 12 | 50 | 9.02 | 229 | 5.43 | 138 | 8.19 | 208 | 8.39 | 213 | 36.86 | 16.5 | F20 |
| 6FM55A/G | 12 | 55 | 9.02 | 229 | 5.43 | 138 | 8.19 | 208 | 8.39 | 213 | 37.92 | 17.2 | F20 |
| 6FM55B/G | 12 | 55 | 9.02 | 229 | 5.43 | 138 | 8.19 | 208 | 8.39 | 213 | 37.92 | 17.2 | F9 |
| 6FM60 | 12 | 60 | 13.78 | 350 | 6.54 | 166 | 6.89 | 175 | 7.05 | 179 | 44.09 | 20 | F16 |
| 6FM65 | 12 | 65 | 13.78 | 350 | 6.54 | 166 | 6.89 | 175 | 6.89 | 175 | 46.3 | 21 | F16 |
| 6FM65B/G | 12 | 65 | 13.78 | 350 | 6.61 | 168 | 7.09 | 180 | 7.09 | 180 | 46.3 | 21 | F9 |
| 6FM70 | 12 | 70 | 10.2 | 259 | 6.65 | 169 | 8.19 | 208 | 8.39 | 213 | 46.96 | 21.3 | F20 |
| 6FM80 | 12 | 80 | 12.09 | 307 | 6.57 | 167 | 8.27 | 210 | 8.46 | 215 | 55.12 | 25 | F20 |
| 6FM80A/G | 12 | 70 | 10.2 | 259 | 6.65 | 169 | 8.19 | 208 | 8.39 | 213 | 47.4 | 21.5 | F10 |
| 6FM80E | 12 | 80 | 12.52 | 318 | 7.13 | 181 | 6.57 | 167 | 6.77 | 172 | 49.6 | 22.5 | F9 |
| 6FM90 | 12 | 90 | 12.09 | 307 | 6.57 | 167 | 8.19 | 208 | 8.39 | 213 | 58.42 | 26.5 | F10 |
| 6FM95 | 12 | 95 | 12.09 | 307 | 6.57 | 167 | 8.19 | 208 | 8.39 | 213 | 59.52 | 27 | F10 |
| 6FM100A | 12 | 100 | 12.99 | 330 | 6.81 | 173 | 8.62 | 219 | 8.82 | 224 | 65.04 | 29.5 | F12 |
| 6FM100B | 12 | 100 | 12.99 | 330 | 6.81 | 173 | 8.62 | 219 | 8.82 | 224 | 67.24 | 30.5 | F12 |
| 6FM100D | 12 | 100 | 15.94 | 405 | 6.81 | 173 | 8.27 | 210 | 9.33 | 237 | 70.55 | 32 | F17 |
| 6FM120 | 12 | 120 | 15.94 | 405 | 6.81 | 173 | 8.27 | 210 | 9.33 | 237 | 77.16 | 35 | F17 |
| 6FM140 | 12 | 140 | 13.43 | 341 | 6.81 | 173 | 11.14 | 283 | 11.34 | 288 | 91.49 | 41.5 | F12 |
| 6FM150 | 12 | 150 | 19.02 | 483 | 6.69 | 170 | 9.49 | 241 | 9.49 | 241 | 98.11 | 44.5 | F18 |
| 6FM160 | 12 | 160 | 13.43 | 341 | 6.81 | 173 | 11.14 | 283 | 11.34 | 288 | 99.21 | 45 | F12 |
| 6FM160A | 12 | 160 | 13.43 | 341 | 6.81 | 173 | 11.14 | 283 | 11.34 | 288 | 99.21 | 45 | F11 |
| 6FM160B | 12 | 160 | 20.94 | 532 | 8.15 | 207 | 8.46 | 215 | 9.45 | 240 | 111.66 | 50.65 | F23 |
| 6FM180 | 12 | 180 | 20.55 | 522 | 9.45 | 240 | 8.62 | 219 | 8.82 | 224 | 127.87 | 58 | F23 |
| 6FM200 | 12 | 200 | 20.55 | 522 | 9.45 | 240 | 8.62 | 219 | 8.82 | 224 | 127.87 | 58 | F23 |
| 6FM230 | 12 | 230 | 20.51 | 521 | 10.59 | 269 | 7.99 | 203 | 8.19 | 208 | 143.3 | 65 | F24 |
| 6FM250 | 12 | 250 | 20.47 | 520 | 10.59 | 269 | 8.66 | 220 | 9.65 | 245 | 154.32 | 70 | F25 |
Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.
As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.
Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.
During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
