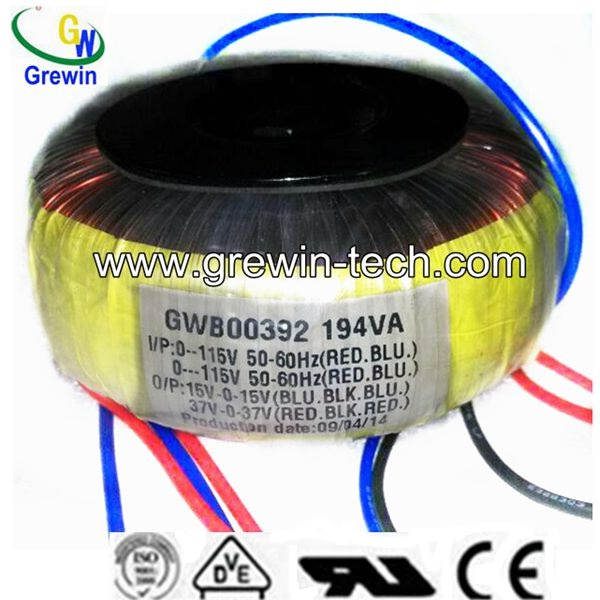

Electric Transformer, Power Supply Transformer for UPS

Prod Model:	50va 100va 150va 200va 250va 300va 500va 1000va
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wire Leads:	Transformer
5kVA:	for Quipment
180va Copper Wire:	Dia 108mm X H60mm
3200va:	220V Ring Transformer
CE,UL:	15.5kgs
Capacity: 40va-120va:	by Iron Shell or Plastic Shell to Adapt Various
Horizontal:	Efficiency: 75-98%
External Diameter: 55mm-300mm:	Height :13mm-130mm
Aluminum Enamel Wire:	Encapsulated by Iron Shell
27.5va:	Diameter=32mm, Height>=83mm;
Application:	UPS, Communication
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Auto-transformer
Certification:	CE
Usage:	Grewin Toroidal Transformer for UPS
Brand:	Grewin UPS Toroidal Transformer

Product Description

A.Technical Parameter:


20VA	Φ   60	H25	> 82	10mA	1.20V  0.45kgs
30VA	Φ   65	H35	> 84	10mA	1.20  0.50kgs
50VA	Φ   70	H40	> 88	20mA	1.15  1.30kgs
100VA	Φ   85	H60	> 90	30mA	1.15  1.50kgs
120VA	Φ   90	H75	> 93	40mA	1.10  2.00kgs
200VA	Φ   110	H80	> 93	100mA	1.10  2.80kgs
300VA	Φ   120	H80	> 94	150mA	1.08  3.50kgs
500VA	Φ   130	H80	> 94	150mA	1.08  5.00kgs
800VA	Φ   140	H85	> 94	200mA	1.08  6.50kgs
1000VA	Φ   140	H85	> 95	300mA	1.05  8.50kgs
1500VA	Φ   160	H90	> 95	400mA	1.05  12.0kgs
2000VA	Φ   180	H90	> 95	400mA	1.05  15.0kgs
4000VA	Φ   220	H95	> 95	500mA	1.05  20.0kgs
6000VA	Φ   250	H95	> 95	500mA	1.05  25.0kgs

1. Installation:
Horizontal (non-conventional-type base plate), sunk, side type, and bridge.
2. Application:
Especially low-hum and low-dispersing construction
Low-level of induction
High-grade design casing possible
Statically shield winding and magnetical shield winding optional.
3. Equipment:
Over 50 sets toroidal/annular/ ring coil winding machines, 3 EI type transformer lines, 2 sets of vacuum annealing furnaces, A set of nitrogen and hydrogen production equipment.
4. Warning
Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.
5. Certificate
The certificate of our transformer has CE CQC RoHS UL
6. Note
The above-mentioned toroidal transformer is frequently-used, we can also manufacture the products by customer design. And the specification is for reference, if has the change further, please take the material object as the standard.
7. GREWIN'S Dimension: External diameter: 55mm-300mm, height: 13mm-130mm, Efficiency: 75-98%
We cab design the appropriate products according to customers' requirments such as installation dimension, input and output voltage, power...etc. )
