Electric Vehicle Charging Dostar J1772 to Dostar Charge Cable 16A Type2
| Price: |
US $ 0.5-2.52/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
electric vehicle charging |
| Operating Ambient Temperature: |
-25degree to 50degree, Max Cable Temperature 70deg |
| Rated Voltage: |
AC 450/750V, DC 1000V |
| Allowable Short Circuit Temperature: |
200degree in 5 Seconds |
| Mini Bending Radius: |
5*Od(Cable Nominal Diameter) |
| Environmental Resistance: |
Pass 2pfg 1908 UV-Resistant Test |
| Low-Temperature Toughness: |
Pass 2pfg 1908 -35degree |
| Measurement Test: |
-25degree Low-Temperature Impact Test |
| Name: |
Dostar J1772 to Dostar Charge Cable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Heating |
| Conductor Material: |
Copper |
| Certification: |
VDE |
| Brand: |
Jiukai |
| Sheath Material: |
TPE |
| Insulation Material: |
TPE |
Product Description

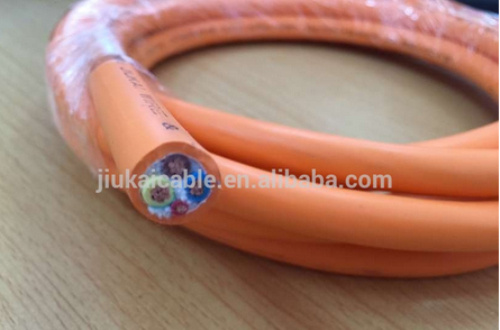

electric vehicle charging dostar j1772 to dostar charge cable 16a type2
Used in electric vehicle charging equipments or charging ports, vehicle charge and discharge warning and control system with charging saturation,security warning control signal transmission function.
Insulation and sheath material is halogen-free thermoplastic elastomer with perfect flexibility, complied with EU RoSH standard
Resistant to cold, wear, oil, acid & alkali, water and UV
Good oil-resistant property (Resistant to mineral oil, fuel oil and gasoline)
Technical Parameter:
3G2.5mm2+1G0.75mm2 16AMP
| Standard | 2Pfg 1908/02.11 |
| Construction | EVC07EE-H 3G2.5+1X07.5 |
| Conductor |
| Construction Item | Units | 6mm2 | 0.75mm2 |
| Construction | mm | 80/0.20±0.008 | 42/0.15±0.008 |
| Material | --- | Bare copper wire |
| O.D | mm | 2.00 | 1.10 |
| Insulation |
| Material | --- | TPE |
| Avg.Thick | mm | 1.00 | 0.80 |
| Min.Thick | mm | 0.80 | 0.60 |
| O.D | mm | 4±0.2 | 2.4±0.1 |
| Color | --- | blue,brown,yellow/green | red |
| Assemble |
| Filling | --- | Thread |
| Lapping | --- | Nonwoven fabric 1/4 LAP |
| Drain.wire | --- | / |
| Jacket |
| Material | --- | TPE |
| Avg.Thick | mm | 2.00 |
| Min.Thick | mm | 1.60 |
| O.D | mm | 13.0±0.5 |
| Color | '--- | Orange or Black |
| Electric Characters |
| Voltage rating:450/750V |
| Temperature rating:-25~70°C |
| Dielectric strength:AC-2500V/1 sec MIN |
| Spark test:AC-6000V/In the air |
| Conductor resistance:3.3ΩKM Max at20°C |
| Mini bending radius:5XOD |
| Physical Properties |
| Elongation of unaged values(%):≥250% |
| Tensile strength of unaged values(N/mm2):≥10 |
| Aged in a full draft circulating air oven:135±2.0°C/168h |
| Elongation of After aging(%):≥75% |
| Tensile strength of After aging:≥75% |
| Heat shock test:135±2°C*1h |
| Cold bend test: -40±2°C*4h |
| Deformation test:121±1°C*1h ≤50%(250gf) |
3G2.5mm2+2G0.5mm2 16AMP
| Standard | 2Pfg 1908/02.11 |
| Construction | EVC07EE-H 3G2.5+2X0.5 |
| Conductor |
| Construction Item | Units | 6mm2 | 0.5mm2 |
| Construction | mm | 80/0.20±0.008 | 28/0.15±0.008 |
| Material | --- | Bare copper wire |
| O.D | mm | 2.00 | 0.92 |
| Insulation |
| Material | --- | TPE |
| Avg.Thick | mm | 1.00 | 0.60 |
| Min.Thick | mm | 0.80 | 0.43 |
| O.D | mm | 4.0±0.2 | 2.1±0.1 |
| Color | --- | blue,brown,yellow/green | red,blue |
| Assemble |
| Filling | --- | Thread |
| Lapping | --- | Nonwoven fabric 1/4 LAP |
| Drain.wire | --- | / |
| Jacket |
| Material | --- | TPE |
| Avg.Thick | mm | 2.00 |
| Min.Thick | mm | 1.60 |
| O.D | mm | 13.0±0.5 |
| Color | '--- | Orange or Black |
| Electric Characters |
| Voltage rating:450/750V |
| Temperature rating:-25~70°C |
| Dielectric strength:AC-2500V/1 sec MIN |
| Spark test:AC-6000V/In the air |
| Conductor resistance:3.3ΩKM Max at20°C |
| Mini bending radius:5XOD |
| Physical Properties |
| Elongation of unaged values(%):≥250% |
| Tensile strength of unaged values(N/mm2):≥10 |
| Aged in a full draft circulating air oven:135±2.0°C/168h |
| Elongation of After aging(%):≥75% |
| Tensile strength of After aging:≥75% |
| Heat shock test:135±2°C*1h |
| Cold bend test: -40±2°C*4h |
| Deformation test:121±1°C*1h ≤50%(250gf) |
3G6mm2+1G0.75mm2 32AMP
| Standard | 2Pfg 1908/02.11 |
| Construction | EVC07EE-H 3G6+1X07.5 |
| Conductor |
| Construction Item | Units | 6mm2 | 0.75mm2 |
| Construction | mm | 189/0.20±0.008 | 42/0.15±0.008 |
| Material | --- | Bare copper wire |
| O.D | mm | 3.50 | 1.10 |
| Insulation |
| Material | --- | TPE |
| Avg.Thick | mm | 1.00 | 0.80 |
| Min.Thick | mm | 0.80 | 0.60 |
| O.D | mm | 5.5±0.2 | 2.4±0.1 |
| Color | --- | blue,brown,yellow/green | red |
| Assemble |
| Filling | --- | Thread |
| Lapping | --- | Nonwoven fabric 1/4 LAP |
| Drain.wire | --- | / |
| Jacket |
| Material | --- | TPE |
| Avg.Thick | mm | 2.00 |
| Min.Thick | mm | 1.60 |
| O.D | mm | 16.0±0.5 |
| Color | '--- | Orange or Black |
| Electric Characters |
| Voltage rating:450/750V |
| Temperature rating:-25~70°C |
| Dielectric strength:AC-2500V/1 sec MIN |
| Spark test:AC-6000V/In the air |
| Conductor resistance:3.3ΩKM Max at20°C |
| Mini bending radius:5XOD |
| Physical Properties |
| Elongation of unaged values(%):≥250% |
| Tensile strength of unaged values(N/mm2):≥10 |
| Aged in a full draft circulating air oven:135±2.0°C/168h |
| Elongation of After aging(%):≥75% |
| Tensile strength of After aging:≥75% |
| Heat shock test:135±2°C*1h |
| Cold bend test: -40±2°C*4h |
| Deformation test:121±1°C*1h ≤50%(250gf) |
3G6mm2+2G0.5mm2 32AMP
| Standard | 2Pfg 1908/02.11 |
| Construction | EVC07EE-H 3G6+2X0.5 |
| Conductor |
| Construction Item | Units | 6mm2 | 0.5mm2 |
| Construction | mm | 189/0.20±0.008 | 28/0.15±0.008 |
| Material | --- | Bare copper wire |
| O.D | mm | 3.50 | 0.92 |
| Insulation |
| Material | --- | TPE |
| Avg.Thick | mm | 1.00 | 0.60 |
| Min.Thick | mm | 0.80 | 0.43 |
| O.D | mm | 5.5±0.2 | 2.1±0.1 |
| Color | --- | blue,brown,yellow/green | red,blue |
| Assemble |
| Filling | --- | Thread |
| Lapping | --- | Nonwoven fabric 1/4 LAP |
| Drain.wire | --- | / |
| Jacket |
| Material | --- | TPE |
| Avg.Thick | mm | 2.00 |
| Min.Thick | mm | 1.60 |
| O.D | mm | 16.0±0.5 |
| Color | '--- | Orange or Black |
| Electric Characters |
| Voltage rating:450/750V |
| Temperature rating:-25~70°C |
| Dielectric strength:AC-2500V/1 sec MIN |
| Spark test:AC-6000V/In the air |
| Conductor resistance:3.3ΩKM Max at20°C |
| Mini bending radius:5XOD |
| Physical Properties |
| Elongation of unaged values(%):≥250% |
| Tensile strength of unaged values(N/mm2):≥10 |
| Aged in a full draft circulating air oven:135±2.0°C/168h |
| Elongation of After aging(%):≥75% |
| Tensile strength of After aging:≥75% |
| Heat shock test:135±2°C*1h |
| Cold bend test: -40±2°C*4h |
| Deformation test:121±1°C*1h ≤50%(250gf) |
Note: As per the requirement of user's charging pile & charging gun, 1~4 core control cables available. The detailed comply with the related spec sheet.
Packing and Shipping
| Packaging Details: | 1. Plastic/Wooden Drum: 100M/Roll,500M/Roll,1000M/Roll. |
| | 2. According to customer requirement. |
| Shipping Details: | 7-15 days after payment. |
Company Information
Shanghai Jiukai Wire & Cable Co., Ltd is a national high and new tech enterprise. We consistently dedicate to the R&D, production and sales of wires and cables. We are professional HV&LV power cables, LV electrical wires and security cables in China. We introduce the most advanced automatic production lines, first-class testing & inspection equipments and laboratory for cable security test and application test. We have the technical team of local & overseas experts in cable industry. Strict quality control and safety policy ensures our products meet and exceed the GB industry standards. Our Cables are well sold to Americas, Europe, Middle-east, Southeast Asia and Africa. We establish the strategic partnership with many global electronic enterprises. We mainly produce nearly 10 categories (thousands of kinds) cables, such as audio & video cable, elevator cable, data cables, computer cable, CAT5E LAN cable , CAT 6 LAN cable, solar PV cable, UL wire, flexible cable and special cable. All our cables has already got the certificates of national or international professional testing organizations,such as China CCC certificate , US UL certificate , European Union CE Certificate , German TUV, Quality system certification certificate ISO9001:2000. And we get the honors of "Re-contract And Trustworthy Enterprise ","Measurement Qualified Enterprises" , "China Top Brand" and "China Cable Manufacturer TOP 100 ".FAQQ: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Contact Us
If you have another question about electric vehicle charging dostar j1772 to dostar charge cable 16a type2, pls feel free to contact us as below
...All the cables are certificated by CCC, and some are listed by UL, VDE, TUV, we look forard to more scale co-operation with Jiukai as their good quality items&competitive price..."
----Alex Jones, G. M of Saudi Cable Wholesaler
Jiukai holding group is a collection of science, industry and trade as one of the enterprise group. Group total registered capital of 250 million yuan, covers an area of 180000 square meters, construction area of 100000 square meters. Group have cables in today's domestic and foreign advanced equipment, more than 800 sets, the annual production capacity of 1.6 billion yuan, staff more than 600, national and over seas has nearly 30 offices or branches. Group core subsidiary Shanghai jiukai wire and cable Co., Ltd., Jiukai communication technology (Shanghai) Co., Ltd., Wuxi qunxing wire cable Co., Ltd.
Shanghai Jiukai Wire & Cable Co., Ltd is a professional manufacturer of wires & cables, including Electrical Cable, Low Voltage/Medium Voltage/ High Voltage Power Cable, Speaker Cables, Telephone Cable, RF Cable, Solar Cable, Building Wire, UL approved Cable, CE approved Cable, Welding Cable, Submersible Pump Cable. Conductor materials are varied from tinned copper, bare copper, CCA, CCS, aluminium. Insulation & jacket materials are available for PVC, PE, XLPE, Rubber, silicon. Rated voltages are for 300V below, 300/300V, 300/500V, 45/750V, 600/1000V, 3.6/6KV, 10KV, 26/36KV and 36KV above.
