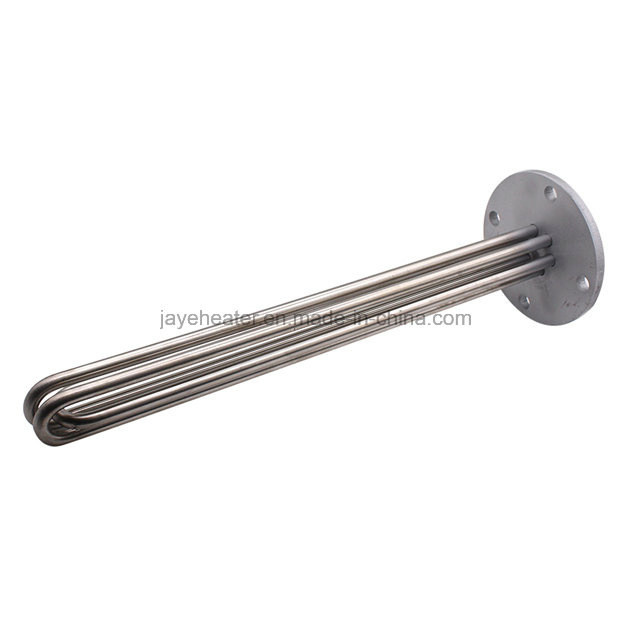

Electric Water Immersion Flange Heater

Name: Electric Water Immersion Flange Heater
Brand: all-electronics-online.com
SKU: 731067282
Availability: InStock
Rating: 4.6 (78 reviews)

Price:	US $ 2-3/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Jaye
Usage:	Oil, Water, Chemical, Petroleum and Air Heating
Voltage:	Customized
Power:	Customized
Diameter:	Customized
Application:	Heater
Heat Transfer Surface:	Tubular Heat Exchanger
Principle:	Resistance Alloy Wire Heating
HS Code:	85168000

Product Description

Electric Water Immersion Flange Heater

The electric heating tube flange (also known as the insertion type electric heater): is the use of U type tubular electric heating element, according to the code for design of heating medium, in accordance with the requirements of assembly power configuration with a flange, to be inserted into the heating material, a large amount of heat conduction from the heating element to the working medium is heated to the temperature rise, to meet the requirements of process required. When the medium temperature reaches the requirements of the process control system according to the set value, the temperature sensor signal, after the PID operation regulation of the heater power output, realizes the temperature control of the heating element of the resistive load. The utility model has the advantages that the temperature of the medium is uniform, and the required requirements are achieved; when the heating element is over temperature or the liquid level is low, the interlock protection device of the heating element is immediately cut off the heating power supply to avoid the heating element burning out, and the service life is prolonged.
Features

1.ANSI flanges 3" to 14" standard; up to 40" available, power ratings from 1kW to 1 MW+ and custom fit to application demands

2.Standard 150lb flanges; 300lb & 600lb readily available, ensures proper pressure rating for your needs

3.Copper, steel, SS and Incoloy® and other heater sheaths available, custom tailored to application requirements

4.Element Spacers & Supports, maximizes heater life and application performance

5.Recompacted element bends provide longer life by ensuring insulation integrity

When you have enquiry, Please let us know the below information:
1 tube material
2 voltage power
3 wiring material
4 drawing is preferred
5 Tube Diameter and length.

Applications
Screw Plug Immersion Heaters are used for heating liquids and gases in a variety of processes. These heaters are ideal for process water heating and freeze protection. All types of oils and heat transfer solutions can also be heated using these compact, easily controlled units. The direct immersion method is energy efficient and well suited for many applications:
Hot Water Storage Tanks
Warming Equipment
Preheating all Grades of Oil
Food Processing Equipment
Cleaning and Rinsing Tanks
Heat Transfer Systems
Process Air Equipment
Boiler Equipment
Freeze Protection of Any Fluid

Jaye industry Co., Ltd has been in the heating elements industry since 2009, and is one of the most trust worthy and professional supplier for various type of heating elements, spare parts and thermostats in China. Our products Mainly include the Home heating elements, industrial heating elements, Flexible silicone heating elements, spare parts and thermostats etc.

'Customization' mixed with the highest grade of material and workmanship is the kind of heater that JAYE industry will provide. This is where our reputation lies and we will continue to provide only the best products to our customers.
