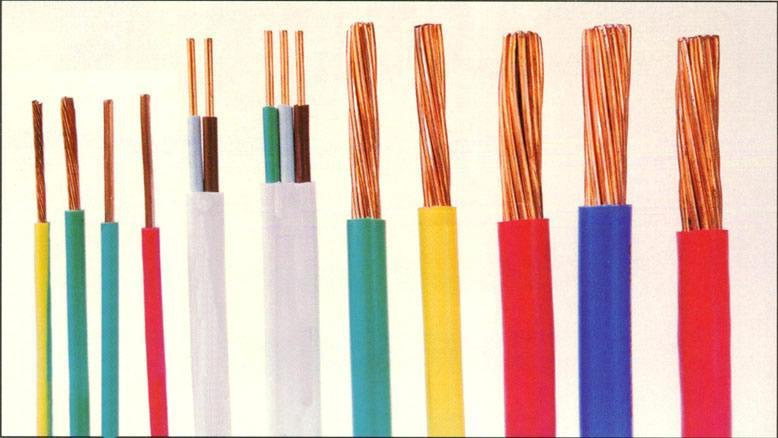

Name: Electric Wire House Wire
Brand: all-electronics-online.com
SKU: 688475671
Availability: InStock
Rating: 4.7 (99 reviews)

Price:	US $ 0.001-99/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	electric wire
Insulation:	PVC
Voltage:	450/750, 300/500V
Usage:	House
Color:	Any Color
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	VDE
Application:	Building
Sheath Material:	No
Range Of Application:	House
Brand:	Jinshui

Product Description

Electric wires with PVC insulated belong to the series of laying electric wires, which are mainly suitable for placing at the fixed places. Most product fit for rated voltage 450/750V, parts of the plastic wires are used at the equipment with AC rated voltage300/ 300V or below.

Standard : GB 50231.7 -1997, JB8734.1- 5-1998, IEC227, BS6004, AS/NZC5000.2

The Details of Electric cable wire

1. Rate Voltage: 300/500V, 450/750V

2. Max. working temperature: 70 °C , can be 90 °C ,105 °C as requirement

3. Insulation: PVC

4. Conductor: Class 1/2 Plain annealed copper wires,solid or stranded

5.Cross Section Areas: 0.75mm2~185mm2

6. Remark: Flame retardant,fire resistance,low smoking and Halogen free,or other property can be avaliable

7. Packing: 100m per roll, or as your request.

The Application of electrical wire

Single Core PVC insulation Copper Conductor house wiring electical wire cable is used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation.

Model name

model	Name
BV	Copper core PVC insulation power line
BLV	Aluminum core PVC insulation power line
BVR	Copper core PVC insulation flexible power line
BVV	Copper core PVC insulation sheath round power line
BVVB	Copper core PVC insulation PVC sheath parallel power line
BLVVB	Aluminum core PVC insulation PVC sheath parallel power line
BV-105	Copper core heat-resistance 105 degree PVC insulation

Established in 1984, Henan Jinshui Cable Group Co., Ltd. specializes in design and manufacture of various kinds of wires and cables. Our company's headquarters is located in Zhengzhou City of Henan Province, a famous city with convenient transportation in China.

Our company is in charge of 23 domestic sale companies and one trade company, Zhengzhou Jin Hang High-Tech Co., Ltd., mainly responsible for overseas market. There are 638 staff members in the factory, including 18 experienced engineers, 52 lab assistants and 568 workers. The capital asset reached USD10, 507, 000. We have various advance product lines and equipment, including 180 sets for producing use and 40 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We also have some ability to satisfy special need of customers. The annual product capacity of cables and wires of our factory is more than 10, 000, 000 kilometers.

As one of the leading manufacturers of cable industry in Henan Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.

For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries. We insisted that pay adequate attention to every customer's request. We insist on our principle of "Good Quality Results Trust and Honesty Makes Success". We sincerely welcome you to touch with us and visit us.
